NA9 - Evaporative Emission Control

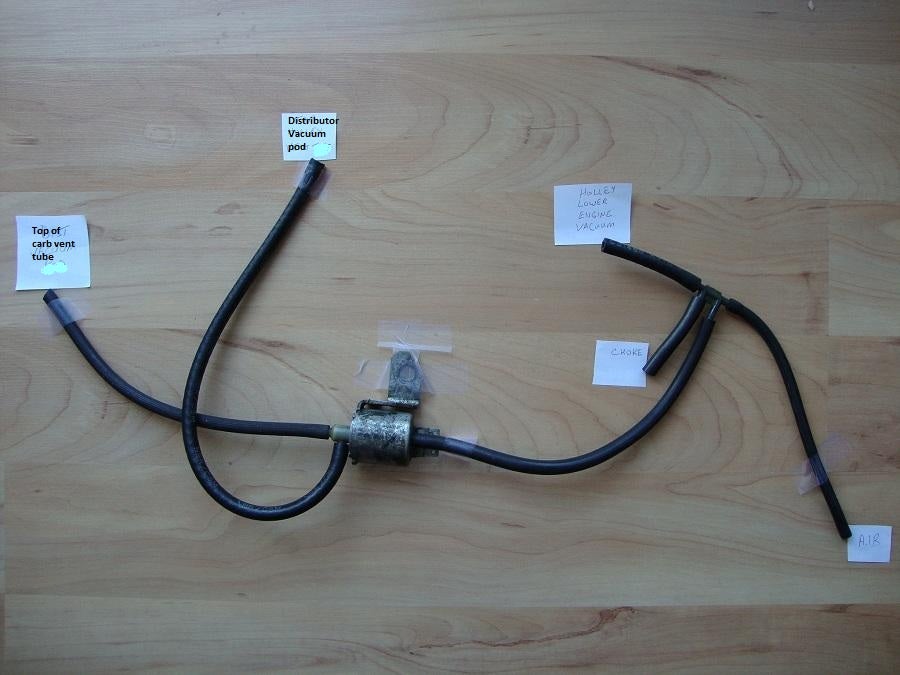

Note: my smog vacuum hose below to the dist can is in the wrong fitting at the manifold switch.

See http://www.nastyz28.com/~copo/images/AIR%20vacuum%20hose%20locations.jpg for proper locations.

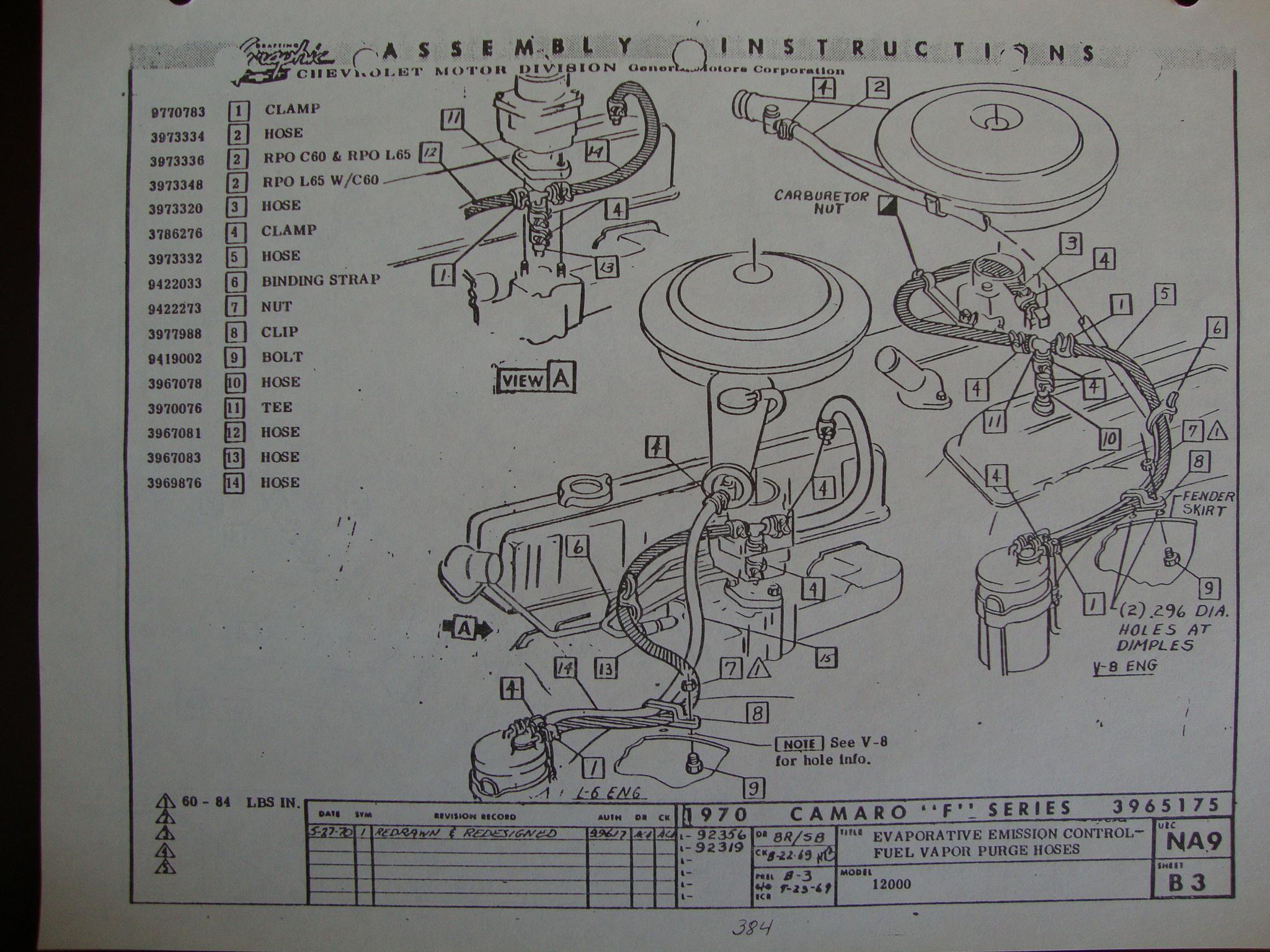

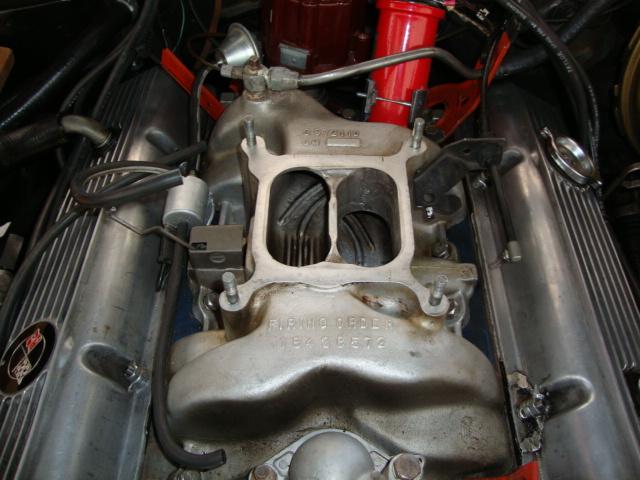

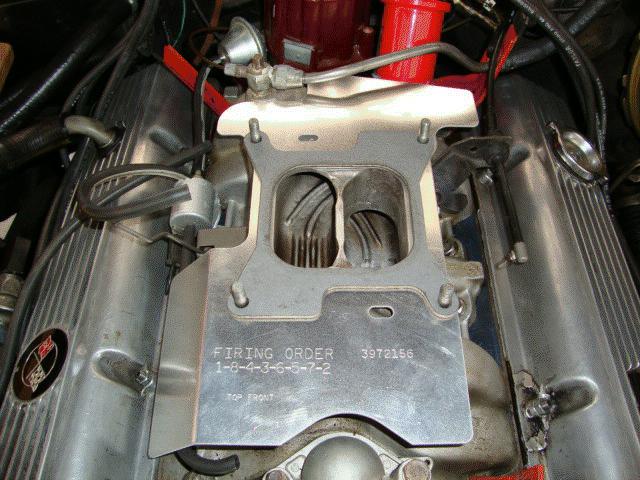

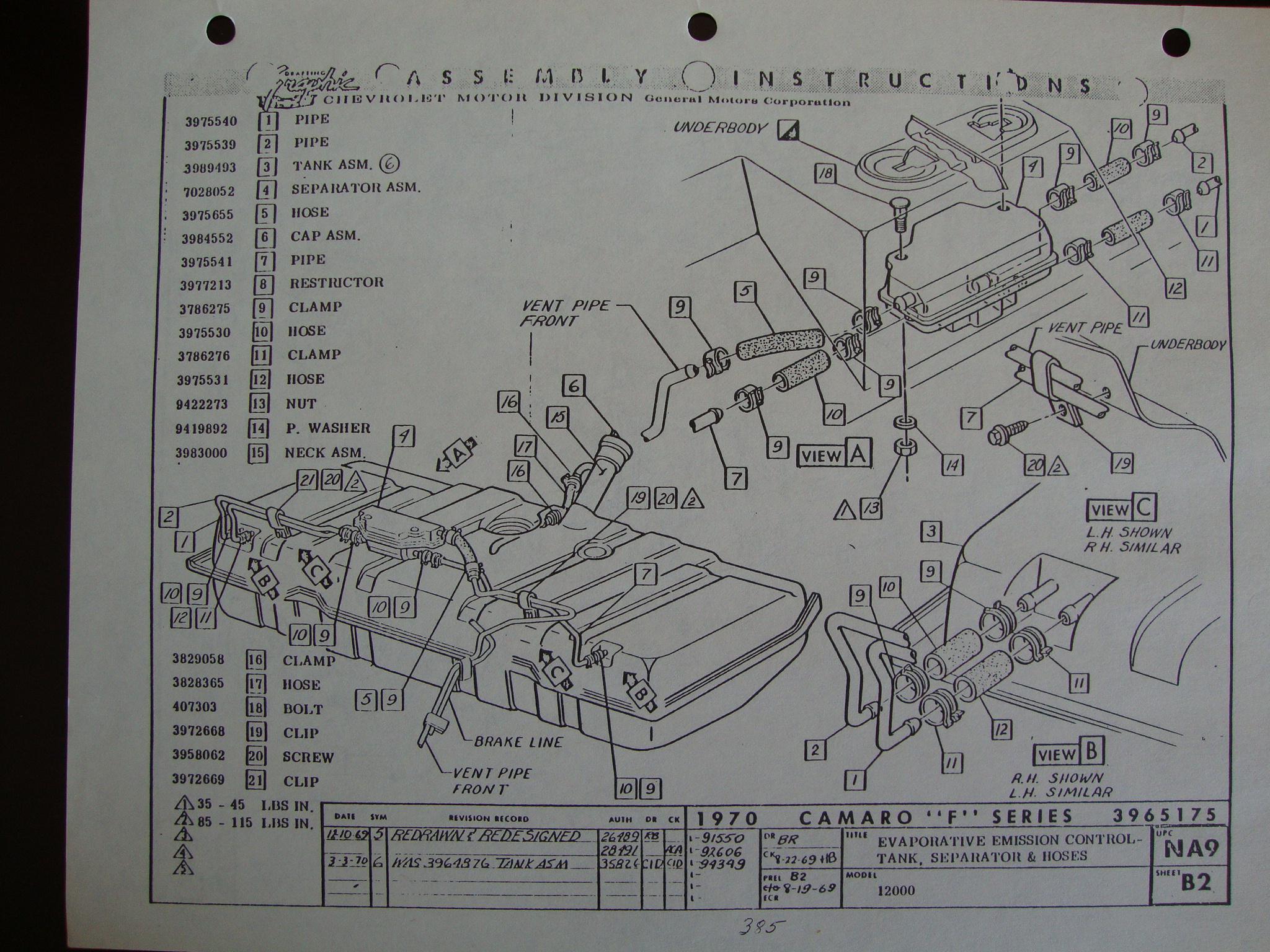

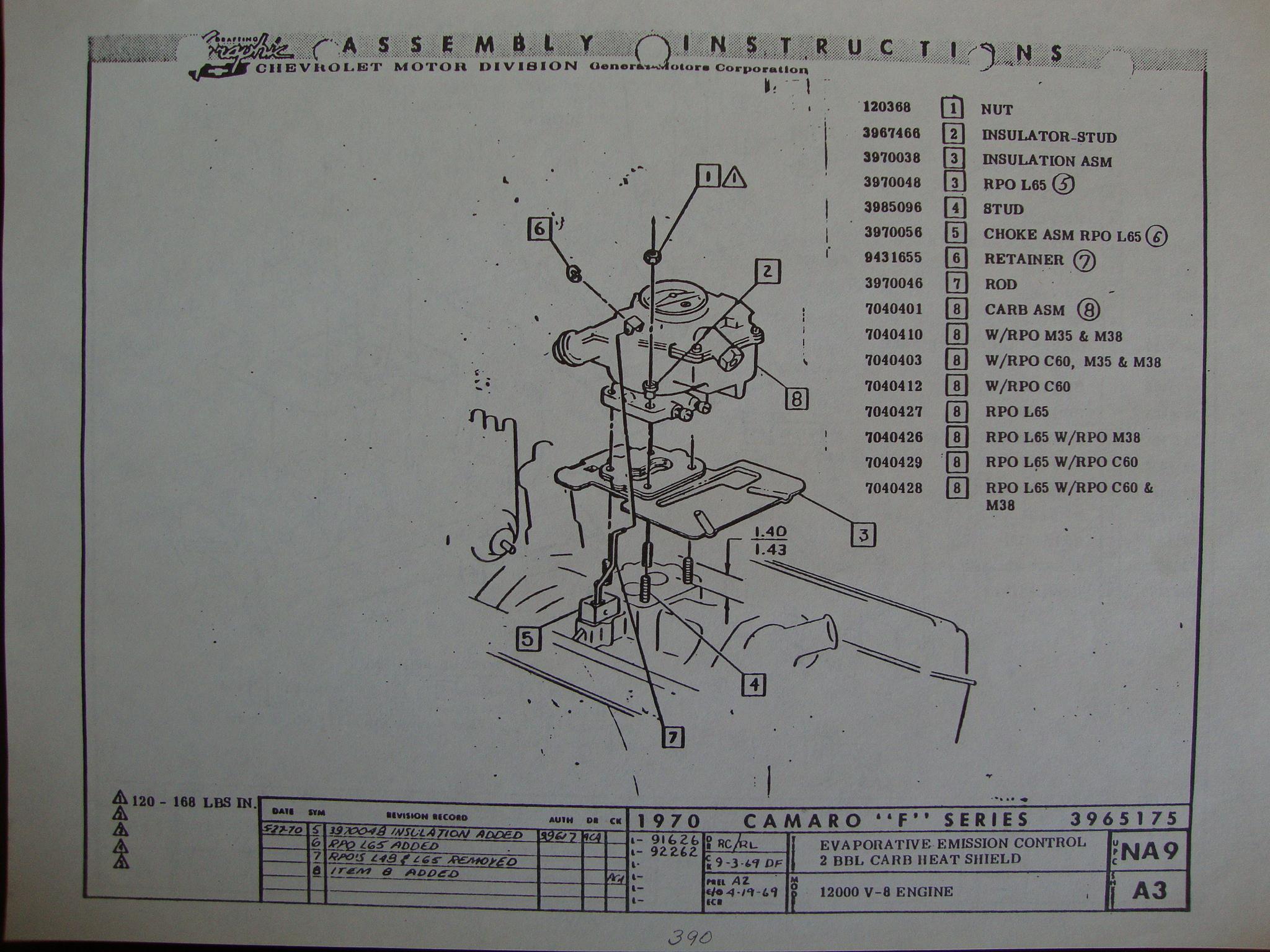

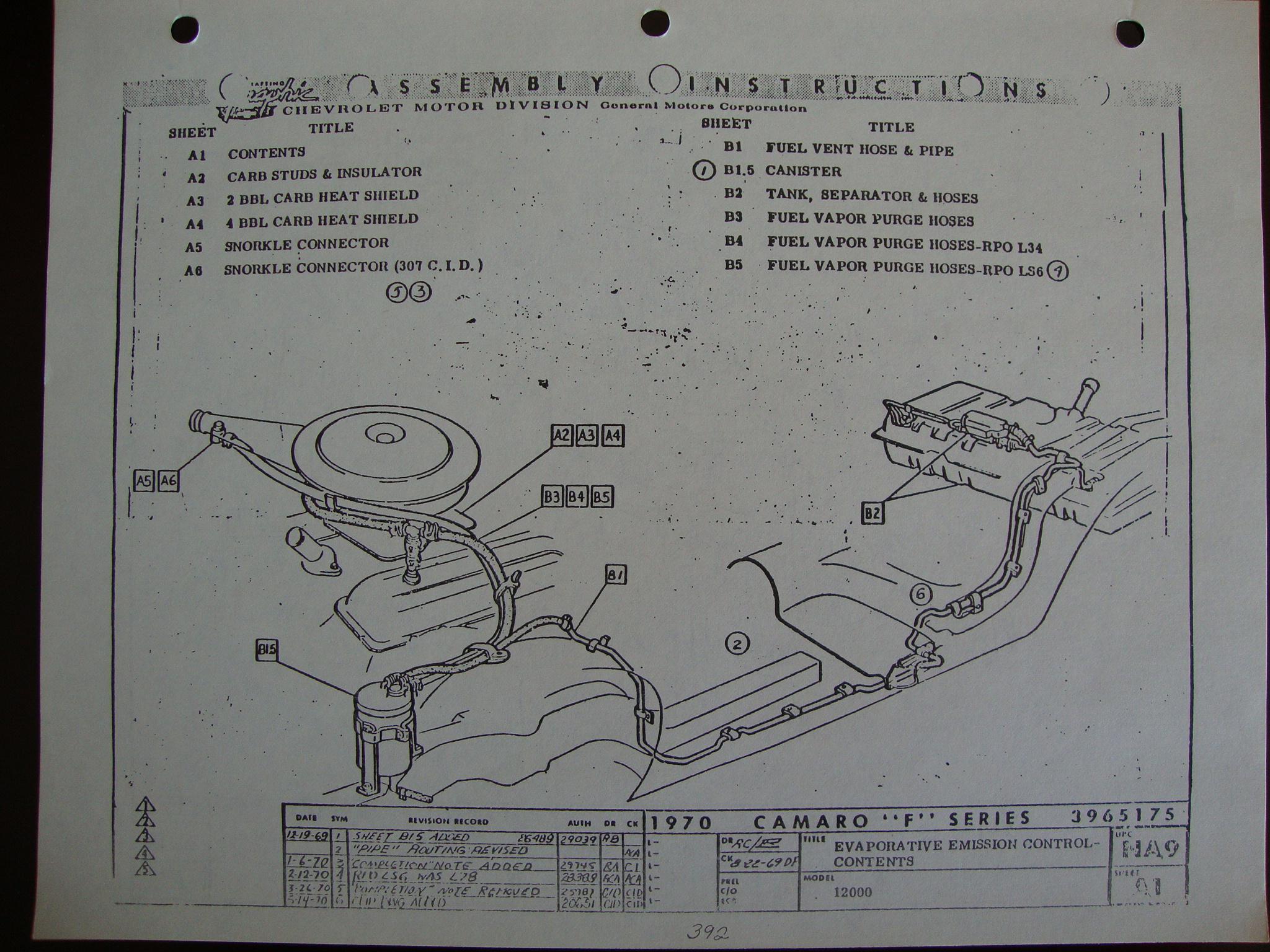

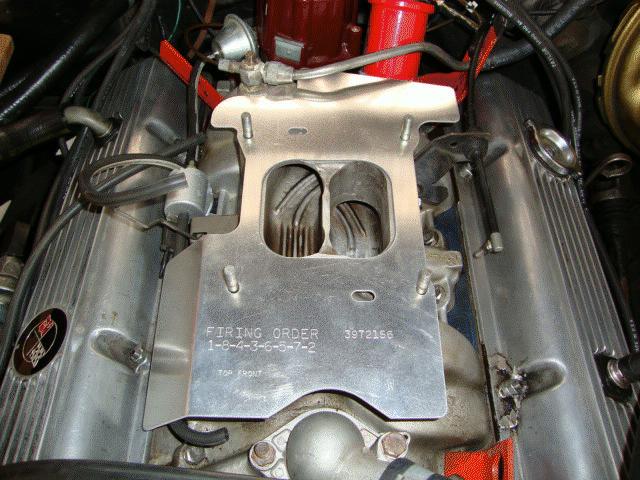

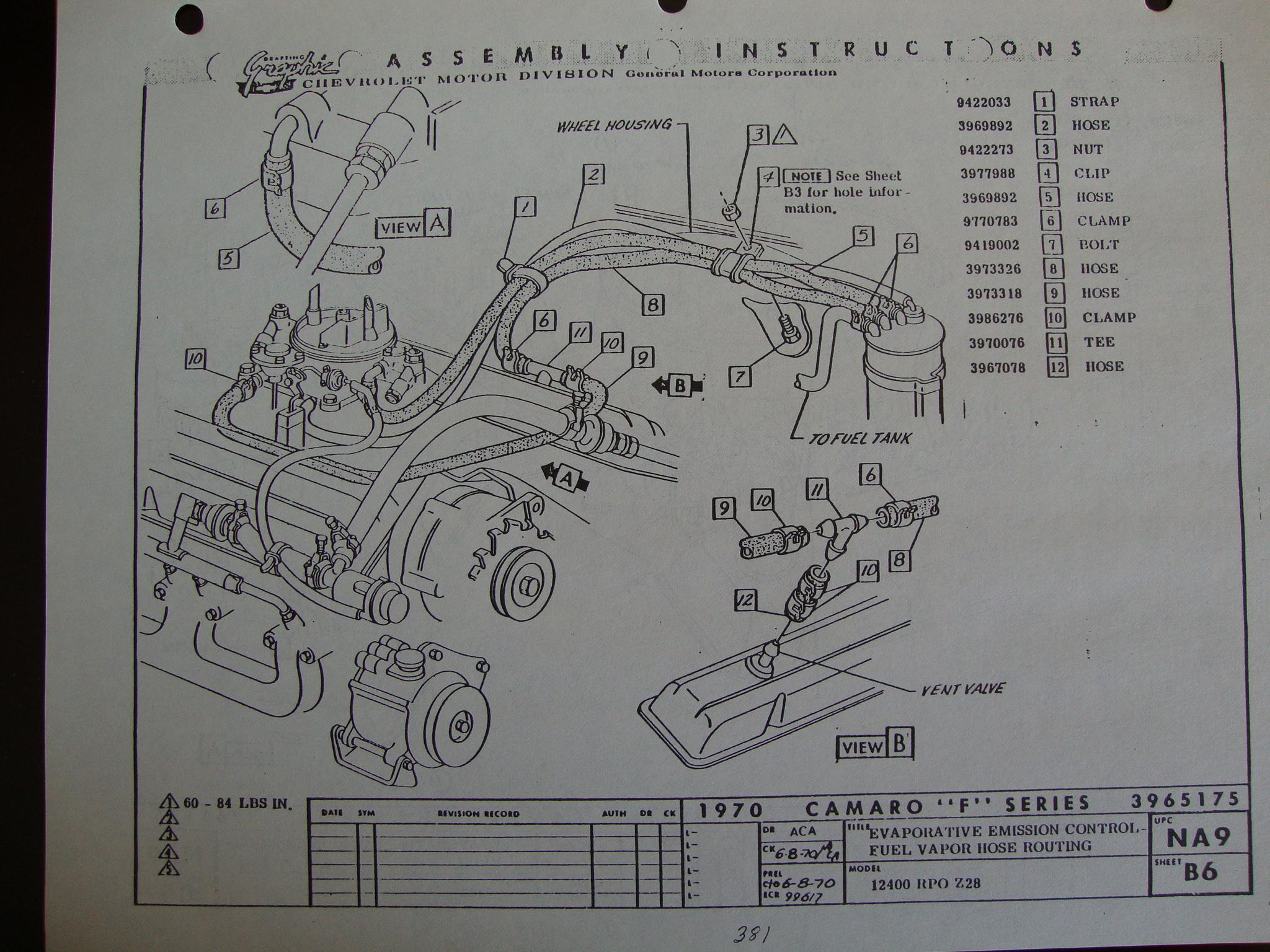

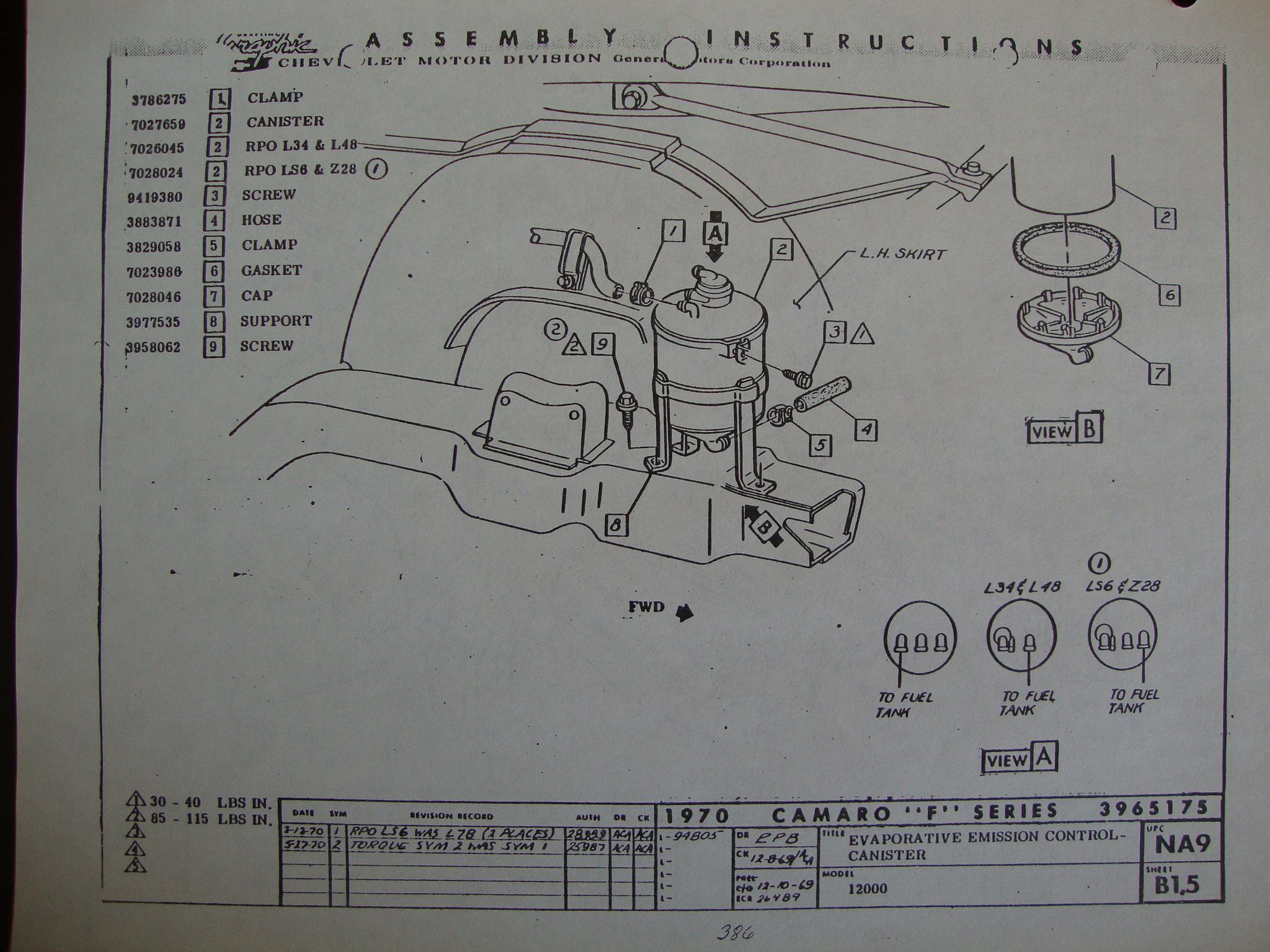

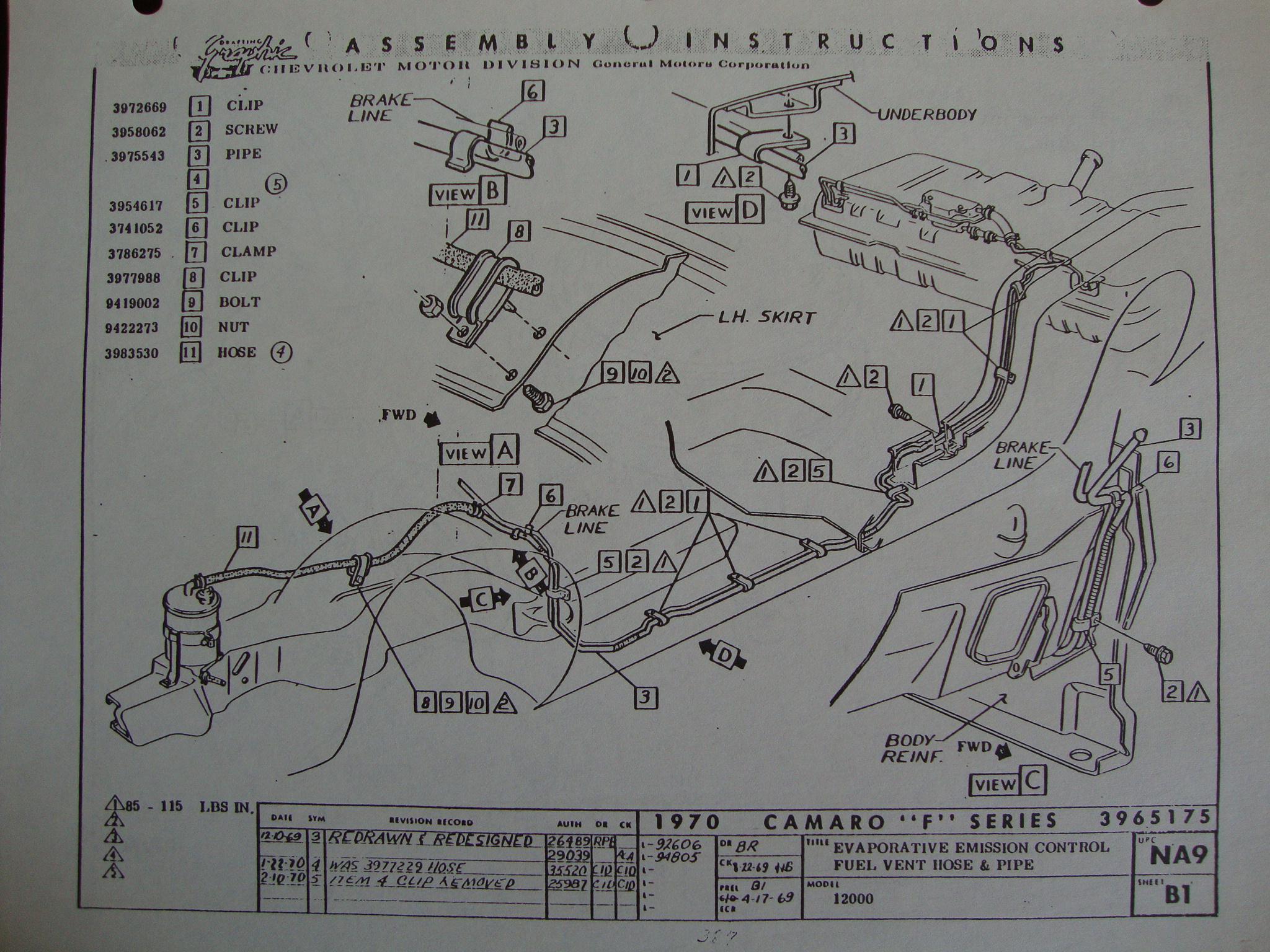

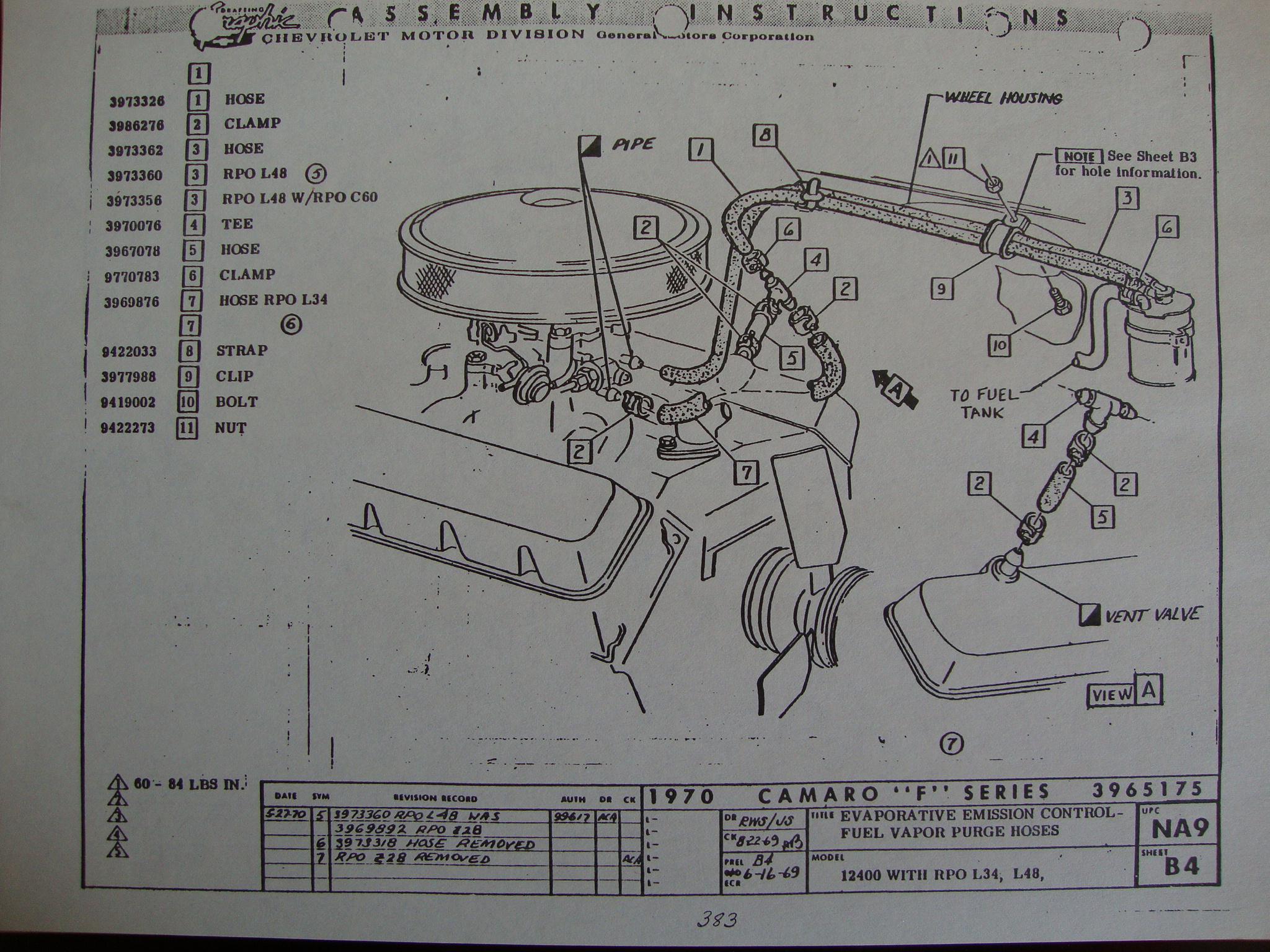

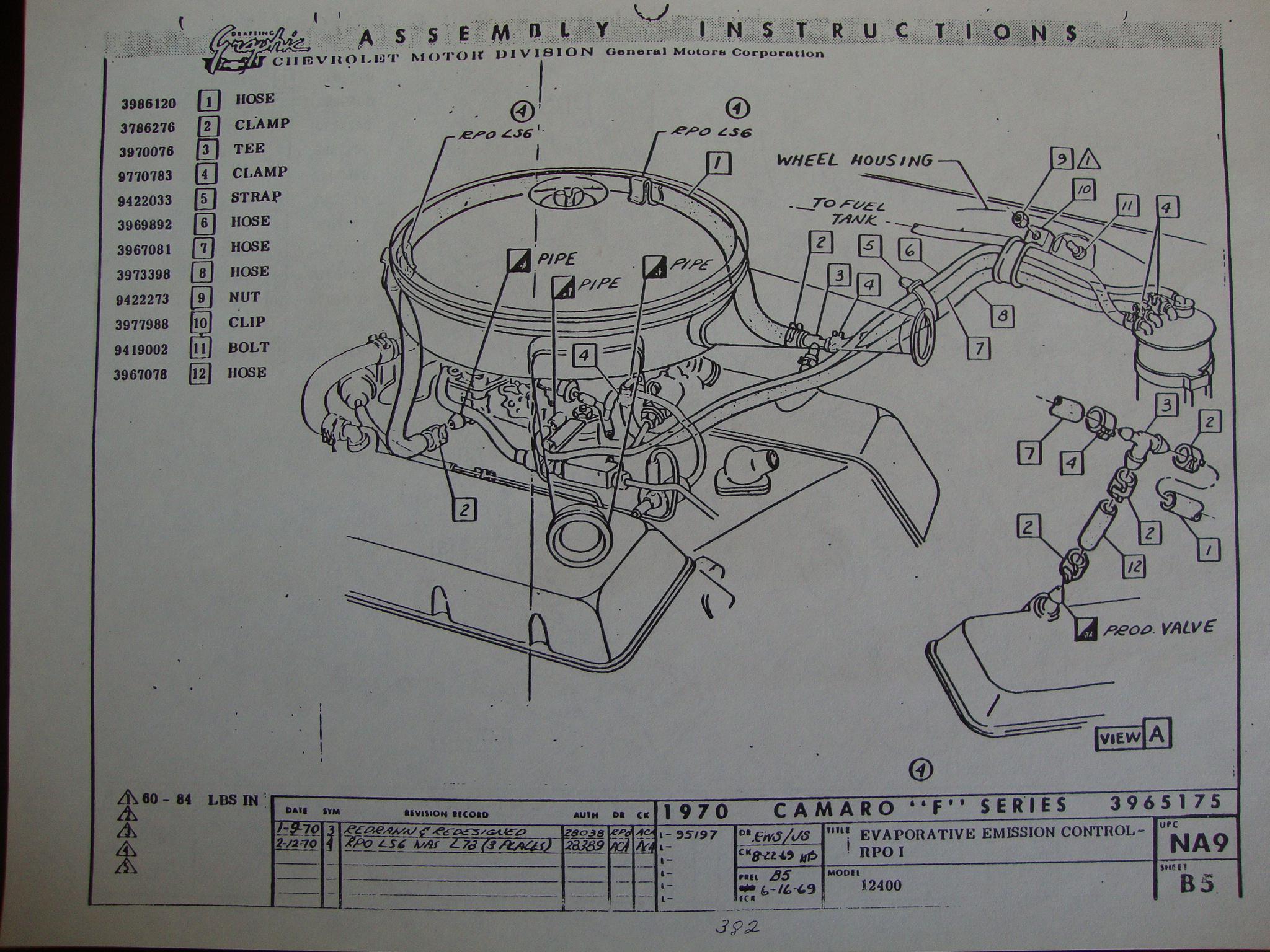

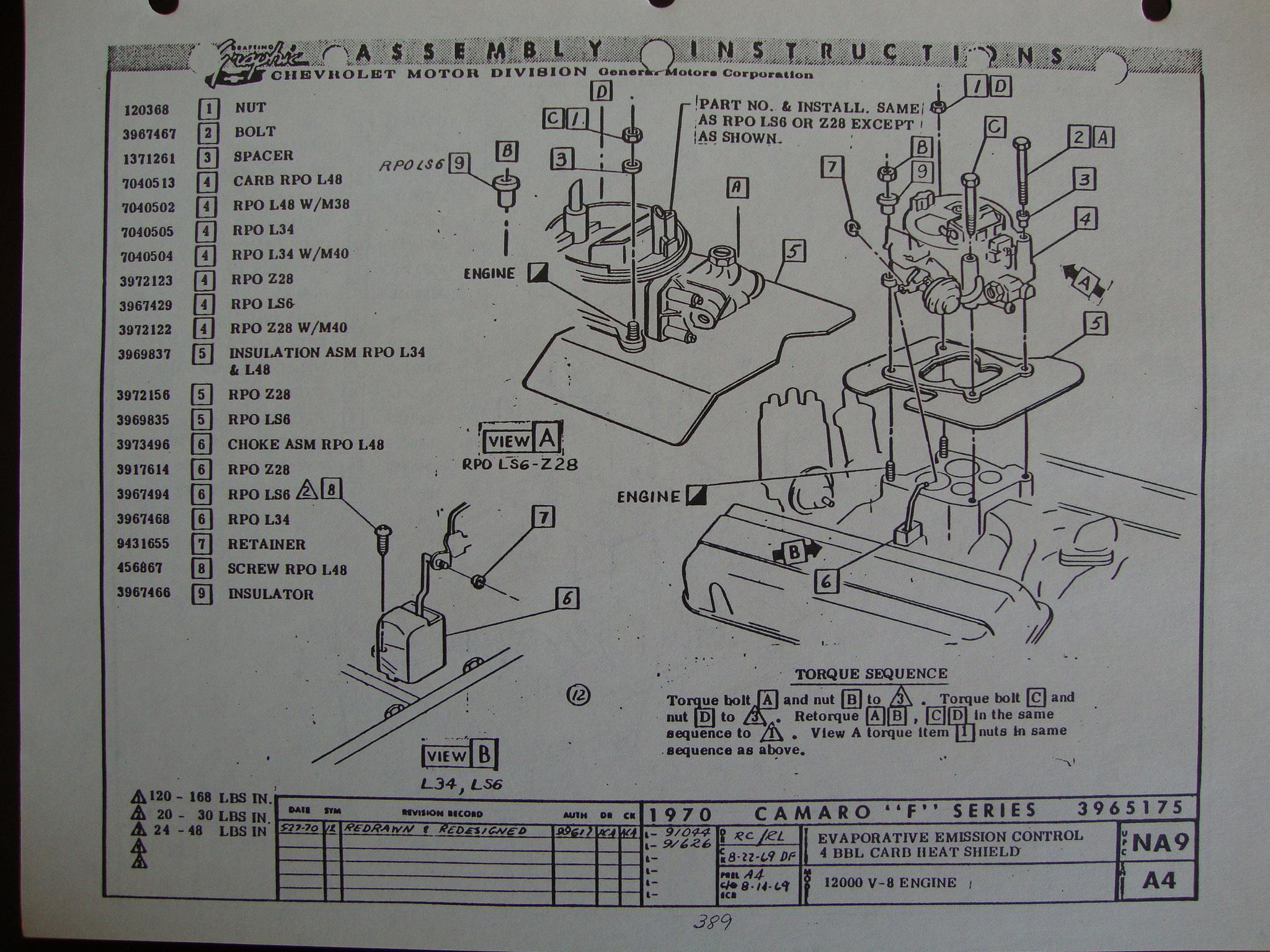

Z28 NA9 Heat Shield - California State only. See NA9 hose diagrams in the Engine section.

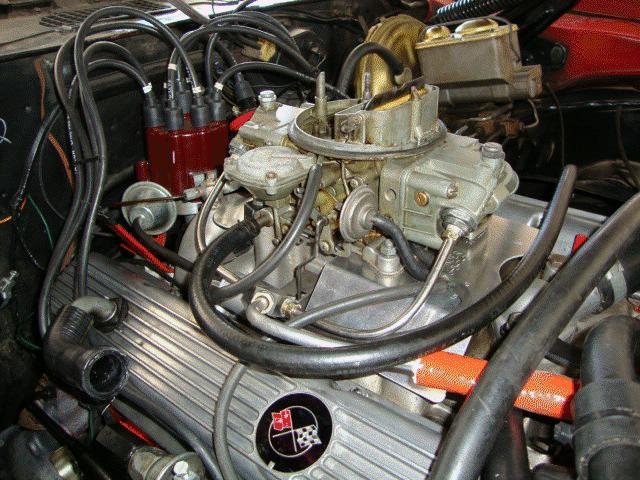

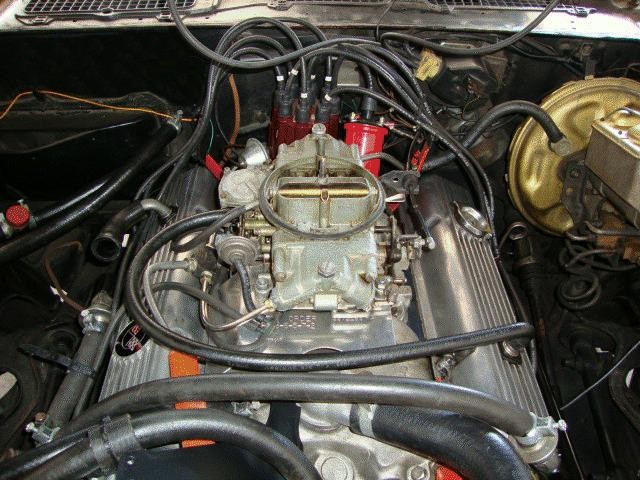

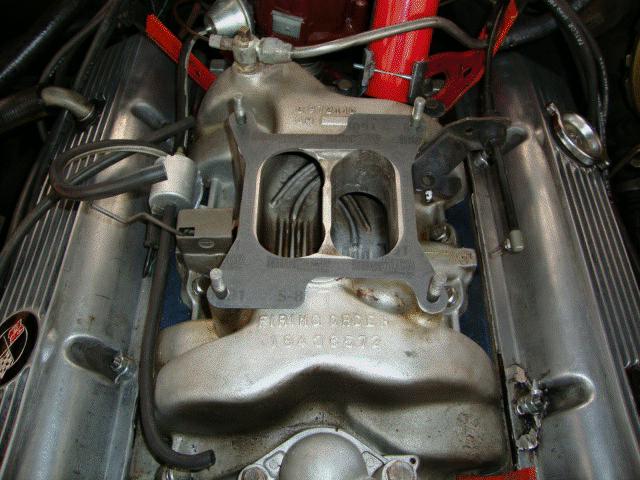

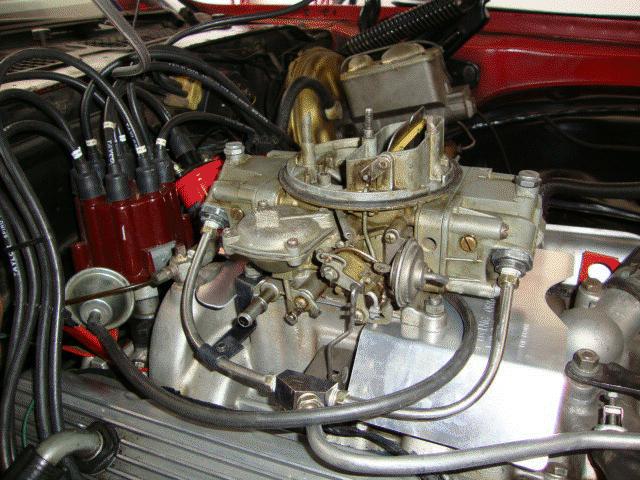

I put one on my Norwood car to cure any gas percolation.







Heat shield for a big block car (new GM)

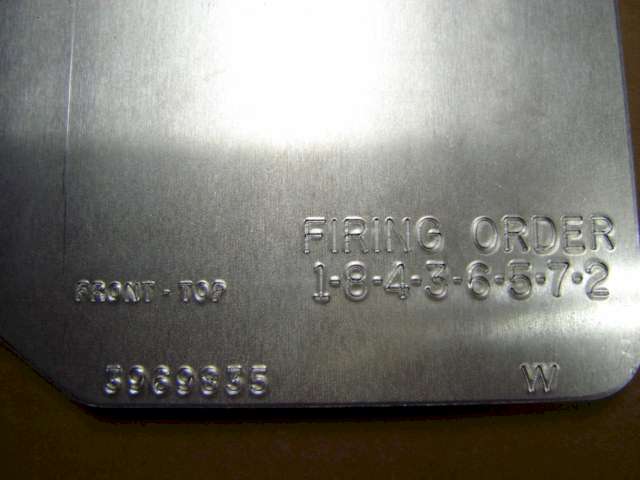

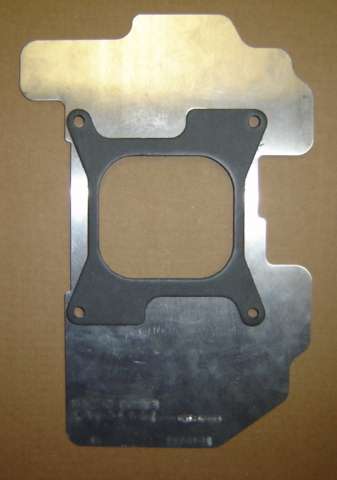

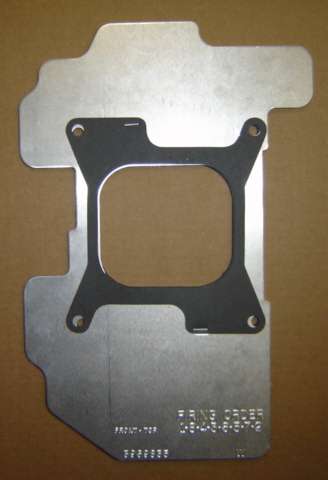

heat shield top.jpg (12089 bytes)    heat shield bottom.jpg (12125 bytes)    heat shield numbers.jpg (25836 bytes)

    Top                    Bottom                     Bottom #'s                 Parts Pkg
