Rev: Nov 24, 2022 - added Autolite spark plugs

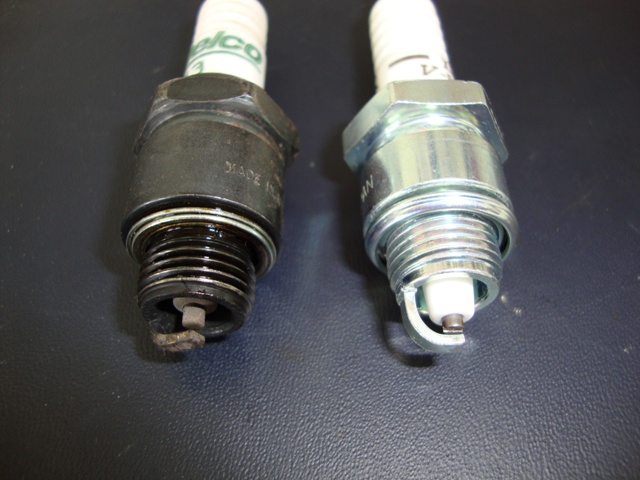

Spark Plugs

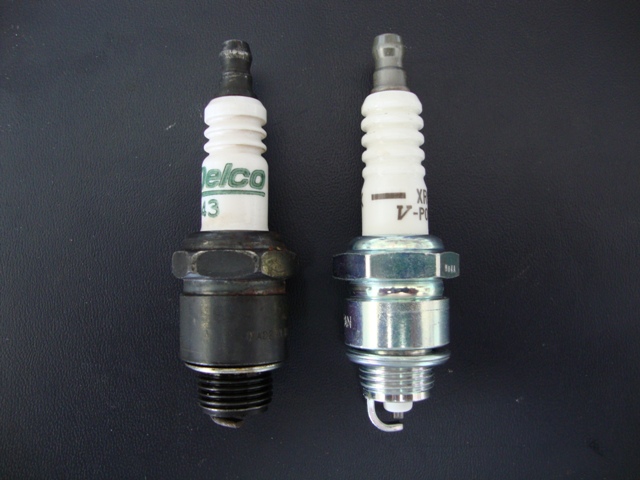

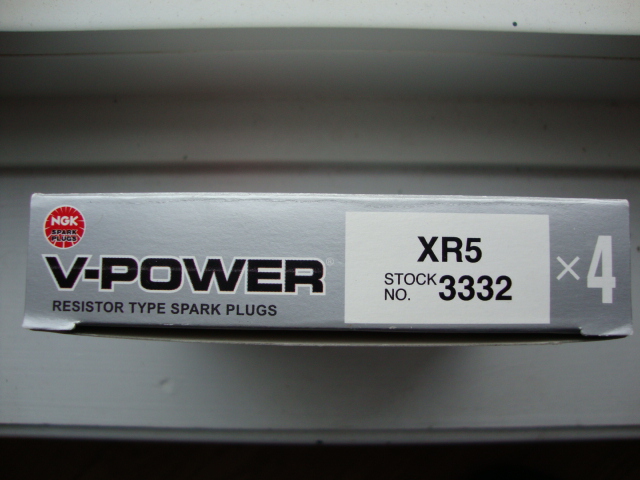

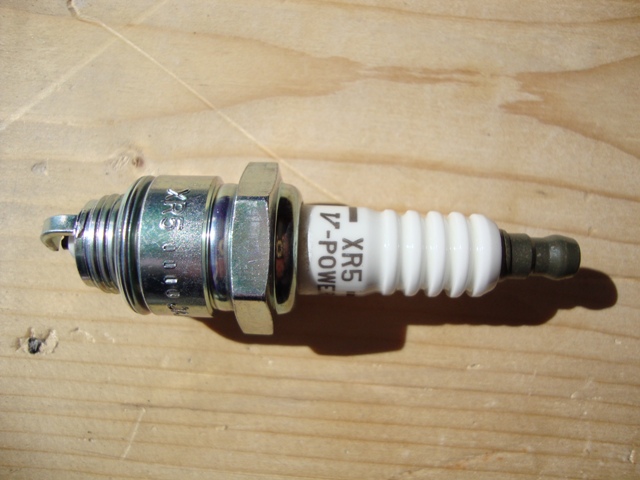

The NGK equivalent to the AC Delco R43/R44 plug for the 70 Z28 but are extended like a R45S plug.

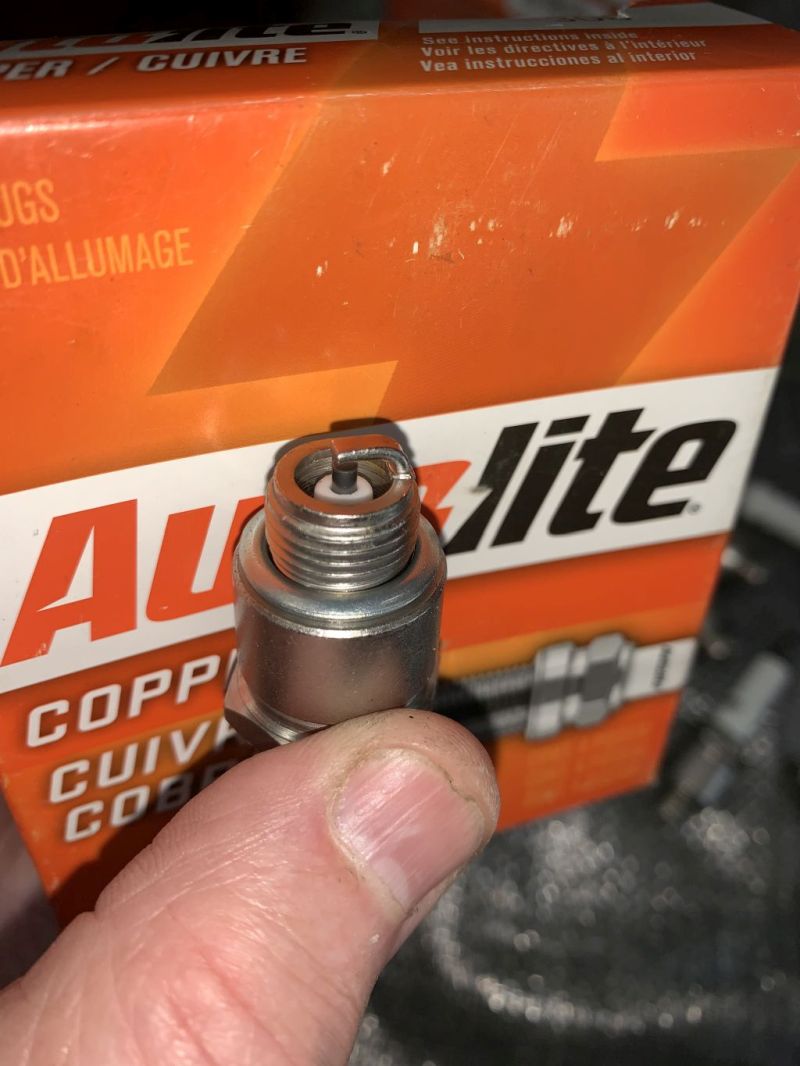

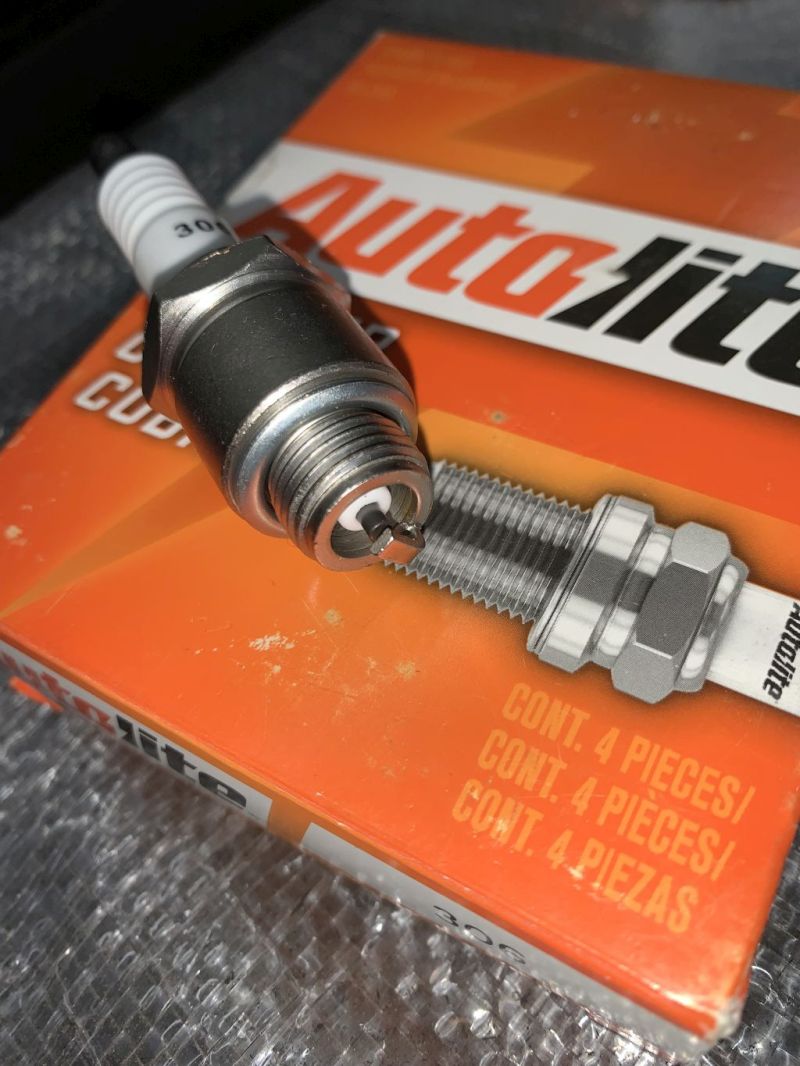

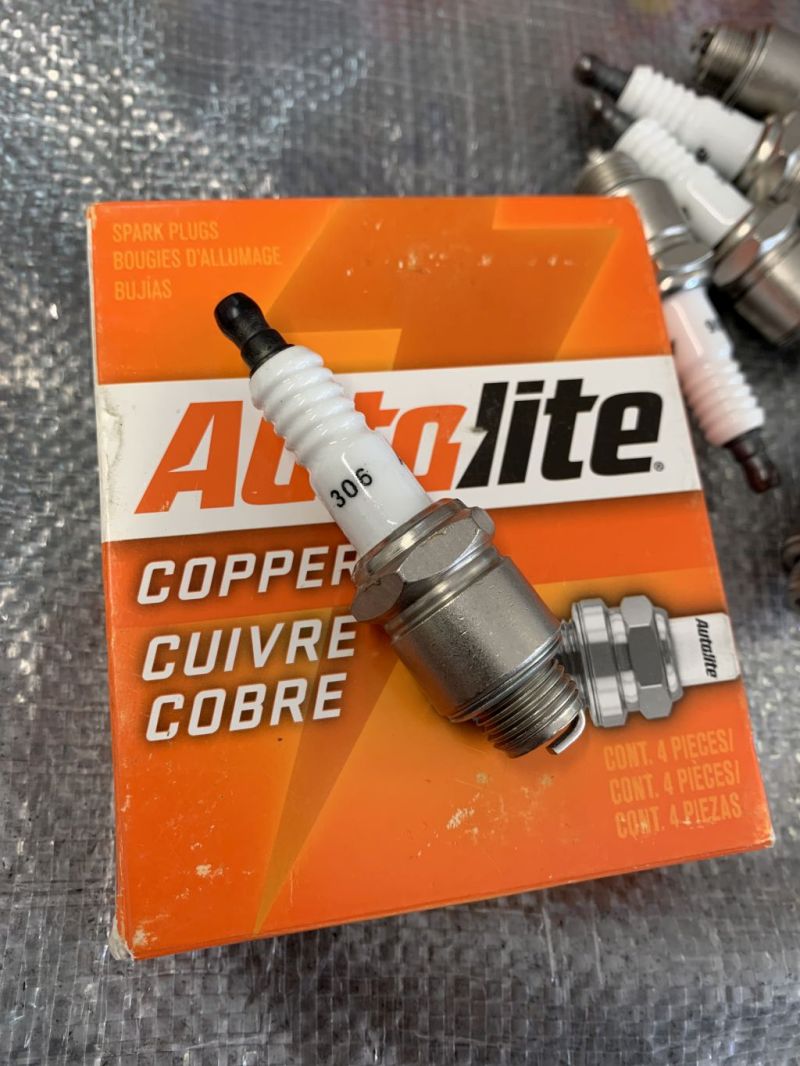

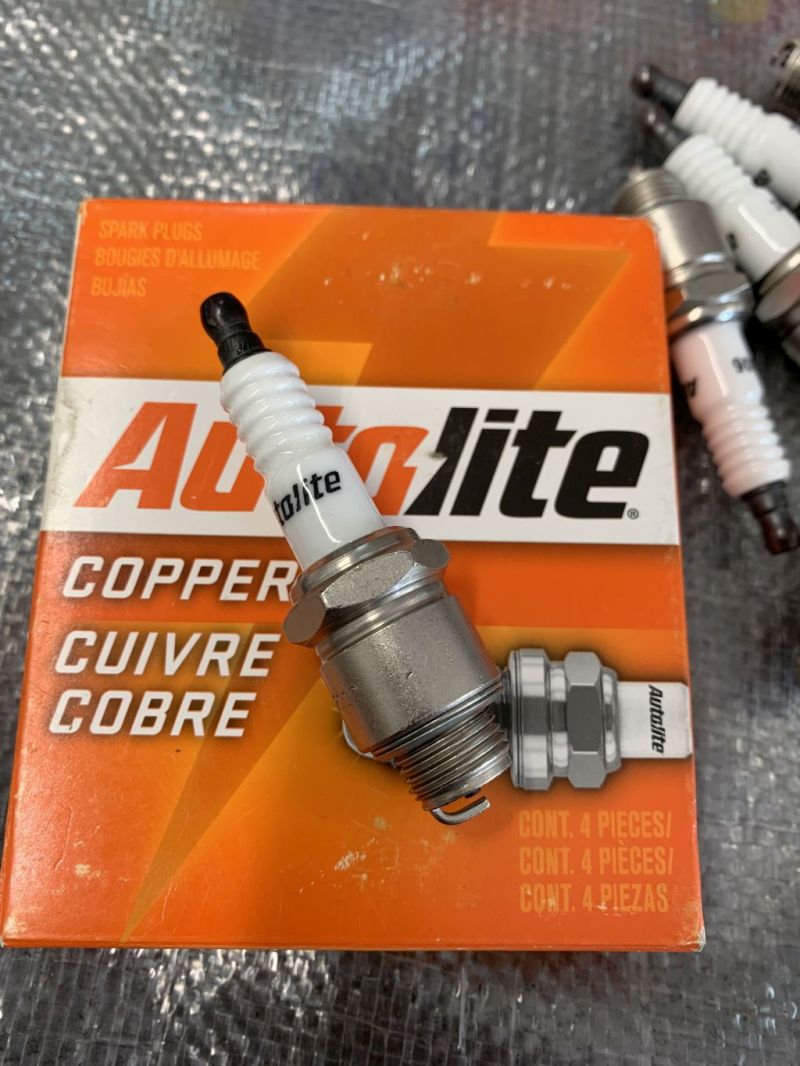

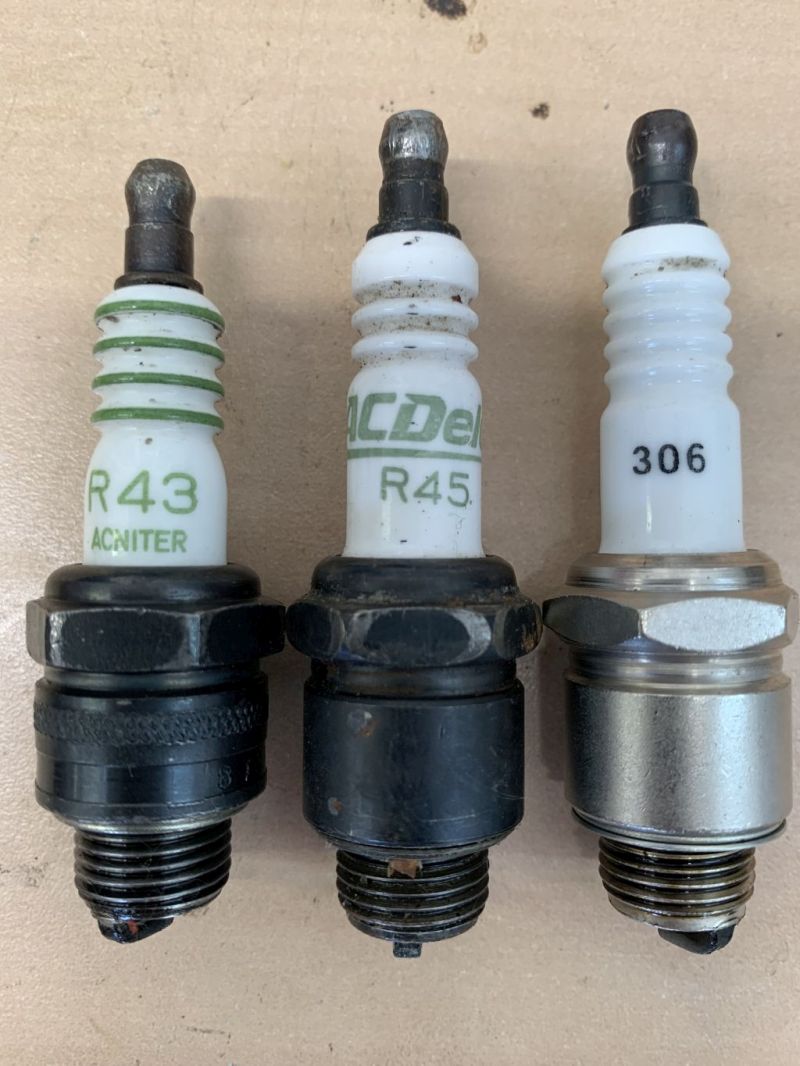

Autolite equivalent to a AC Delco R45

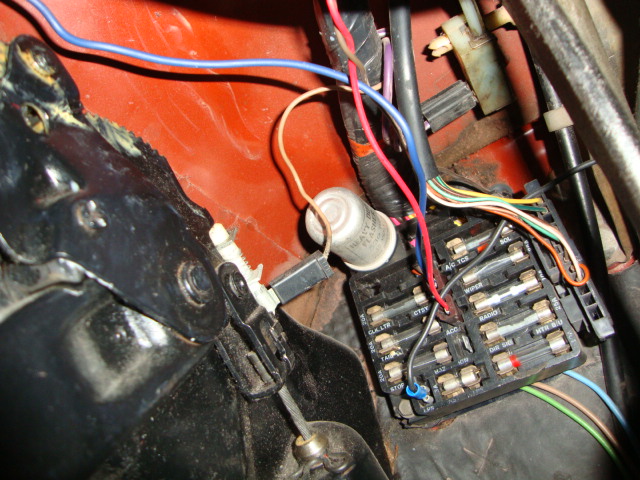

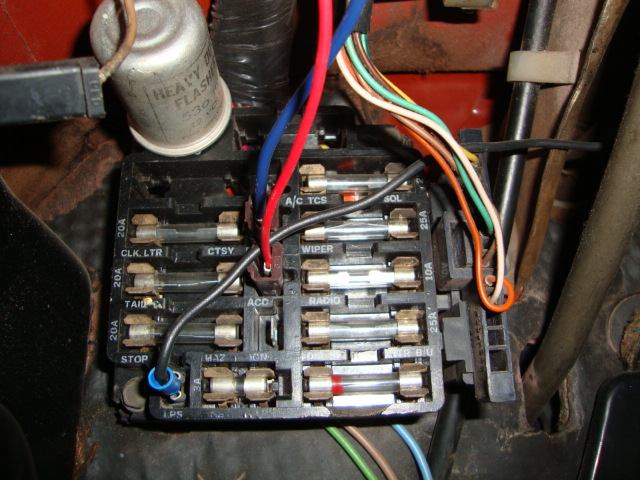

Fuse Box

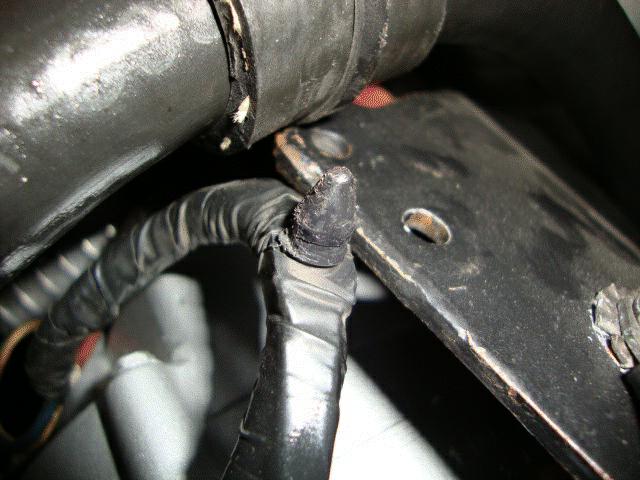

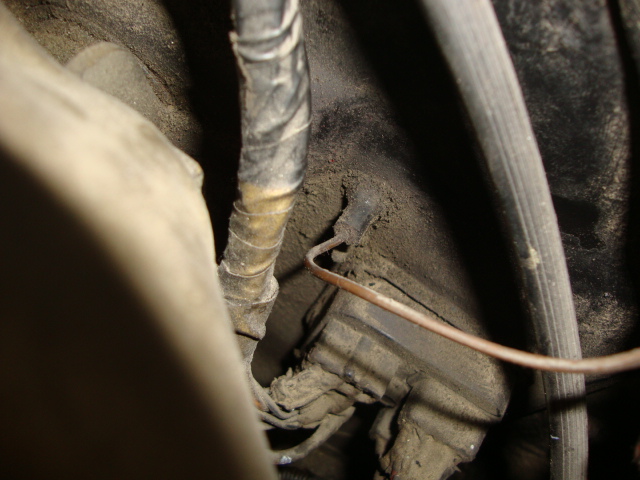

Tach Wire

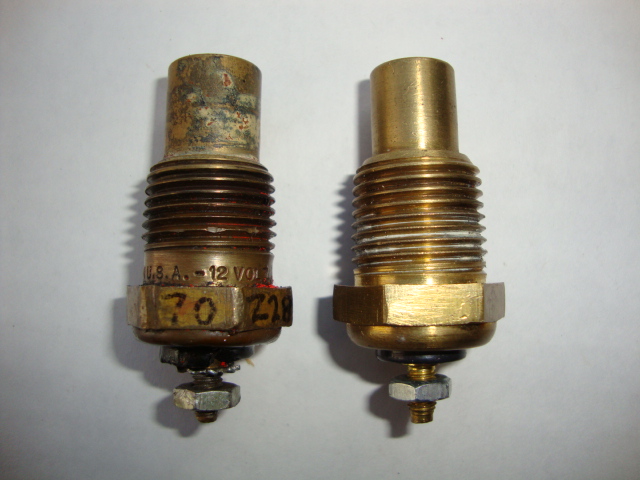

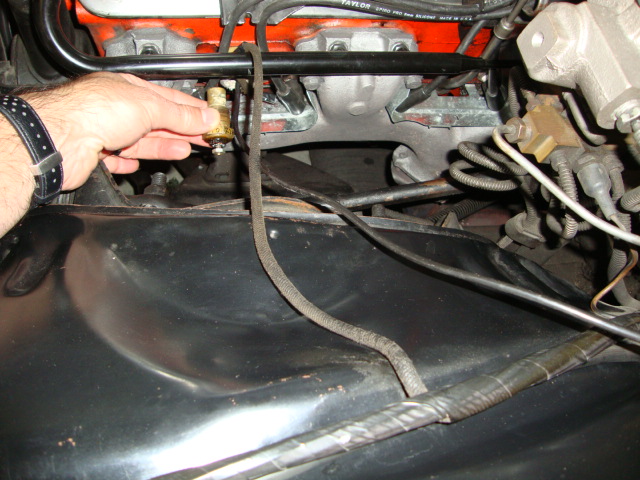

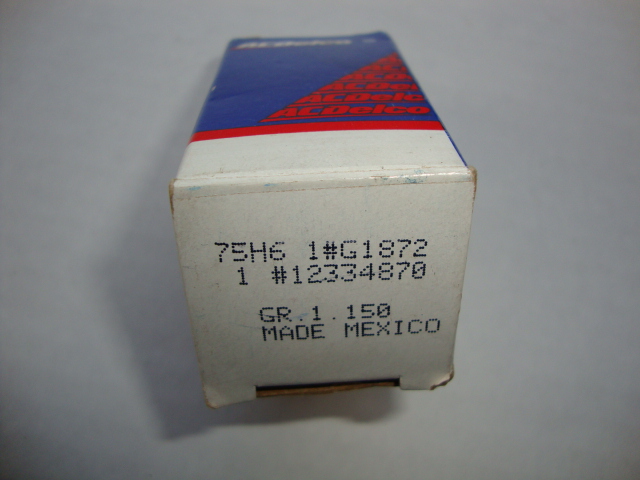

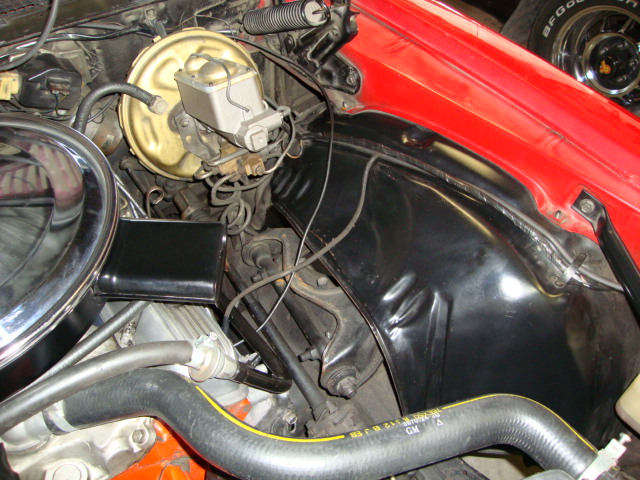

Temperature Sending Unit

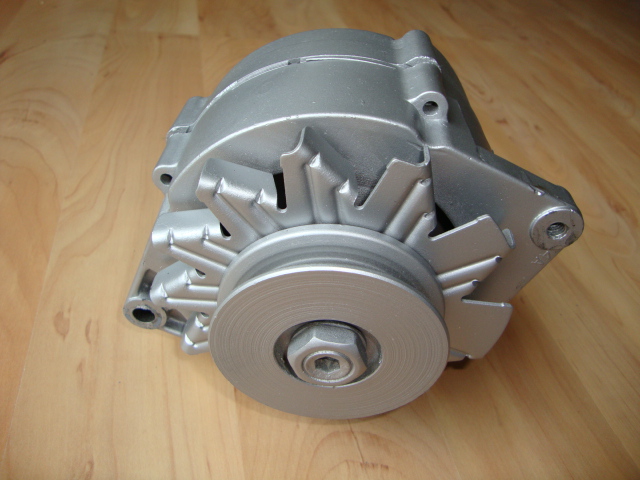

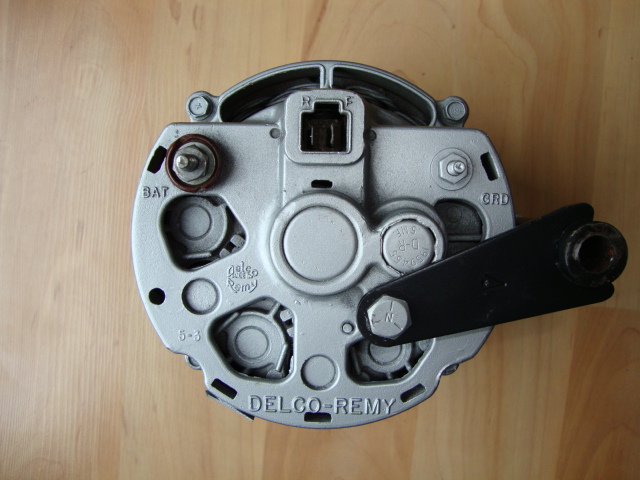

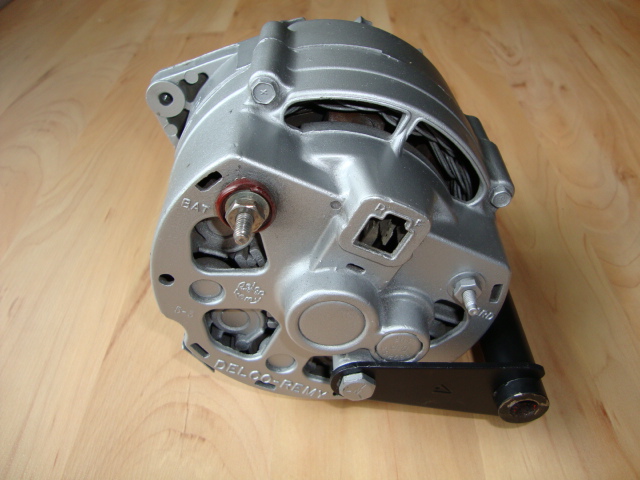

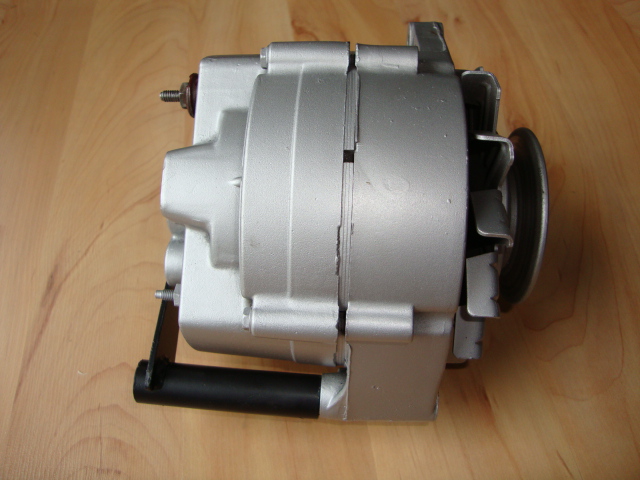

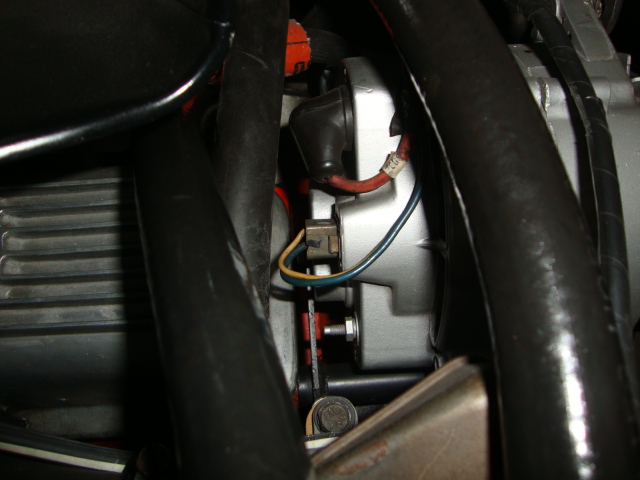

Alternator
1100837 - Used also on 350/320 HP/ 396/375 HP/ or 454 Eng.

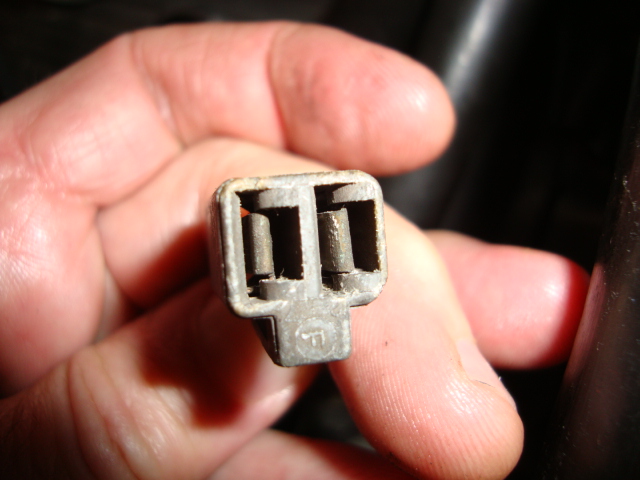

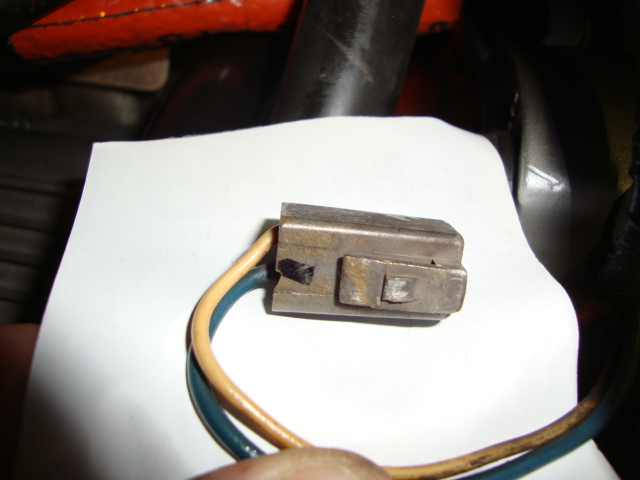

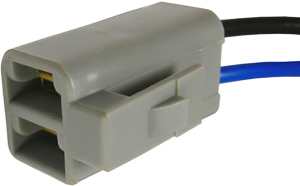

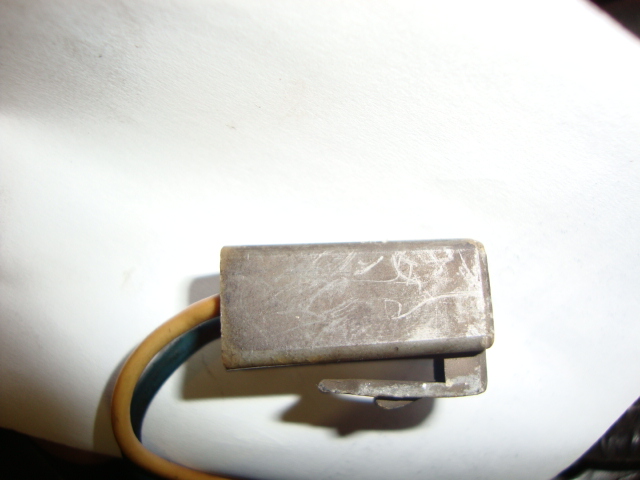

New connector available from http://www.picocanada.com/en/product/5433.php

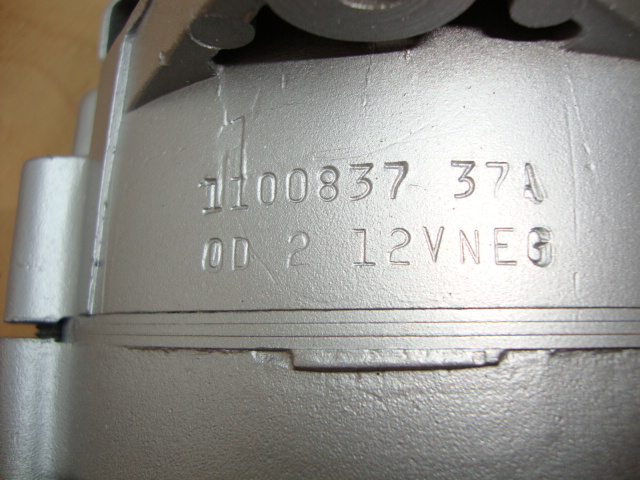

Alternator Numbers
37A = 37 amps
0D - 0=1970 D=April

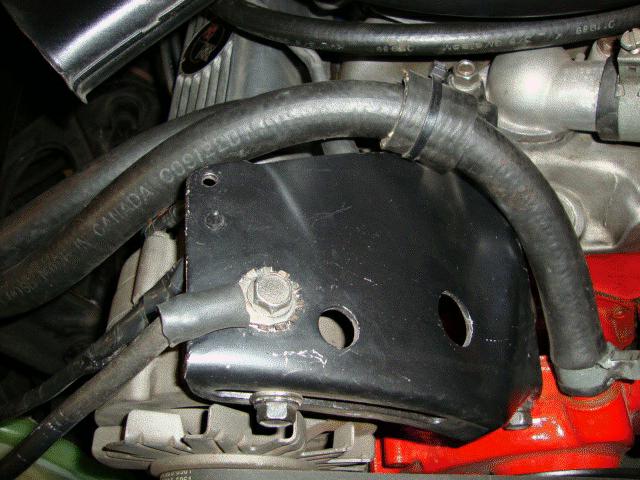

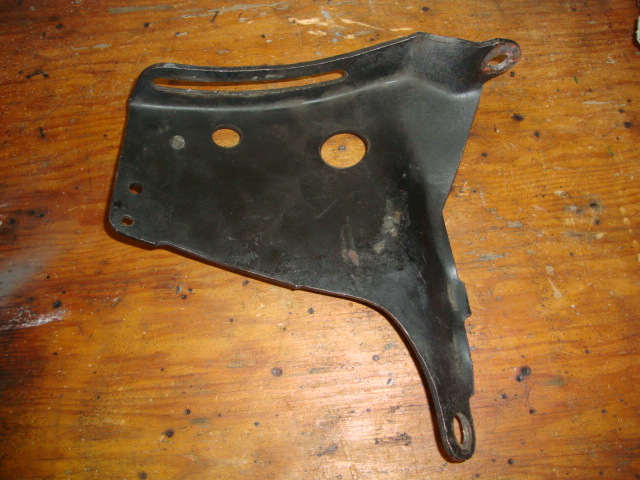

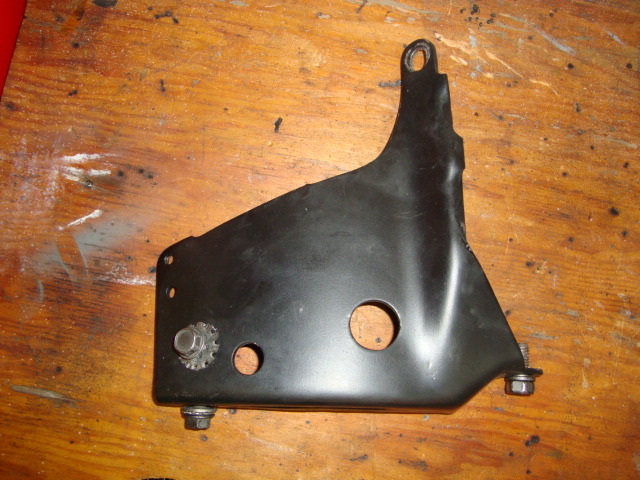

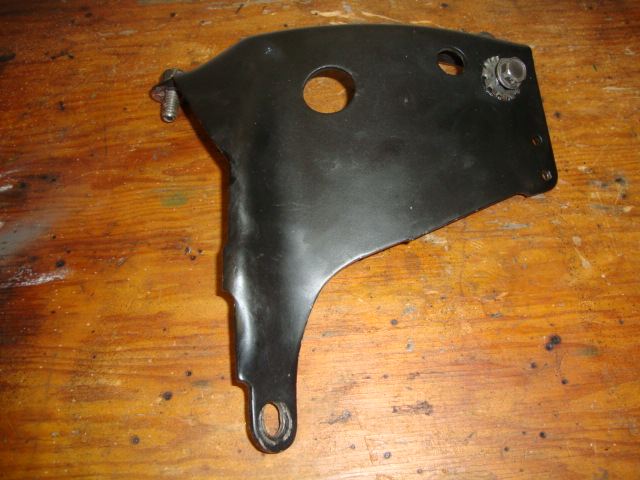

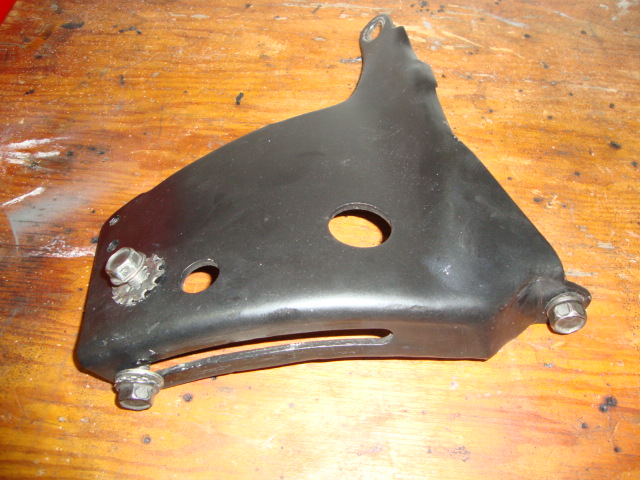

Alternator Bracket

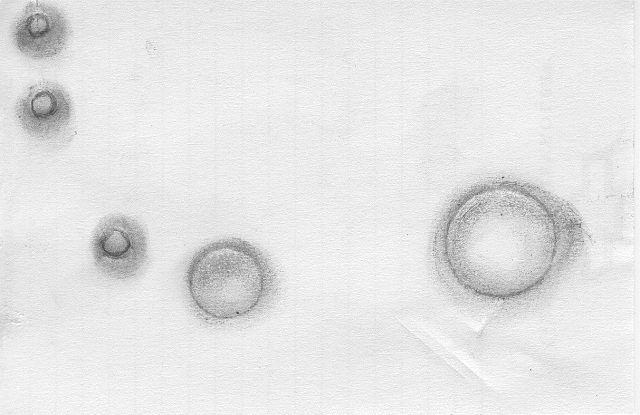

5 hole 1970 bracket
Other Engine Shots

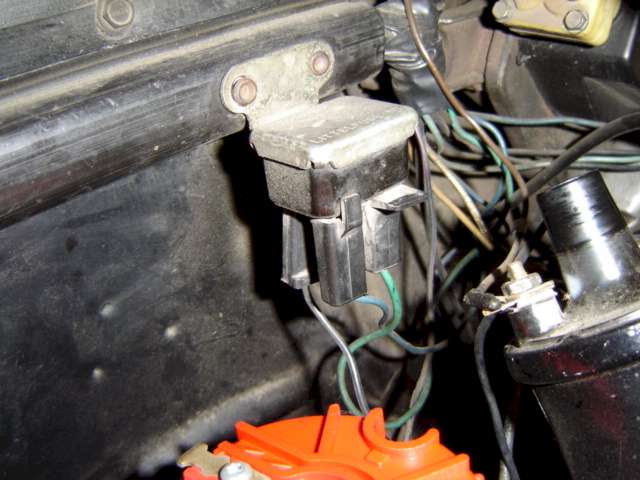

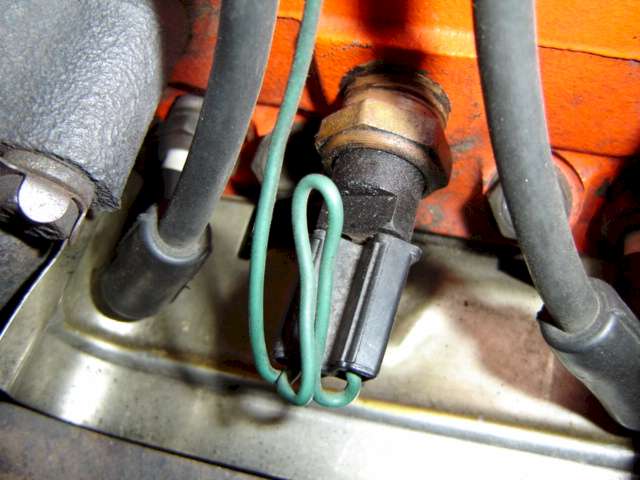

TCS Temp Send Unit TCS Relay

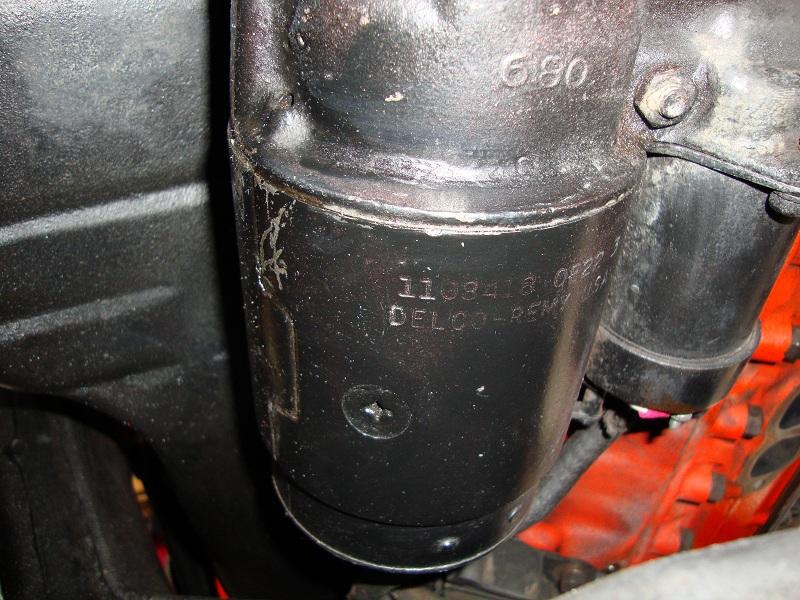

Starter
680
1108418
0E22 3 - May 22 3rd shift

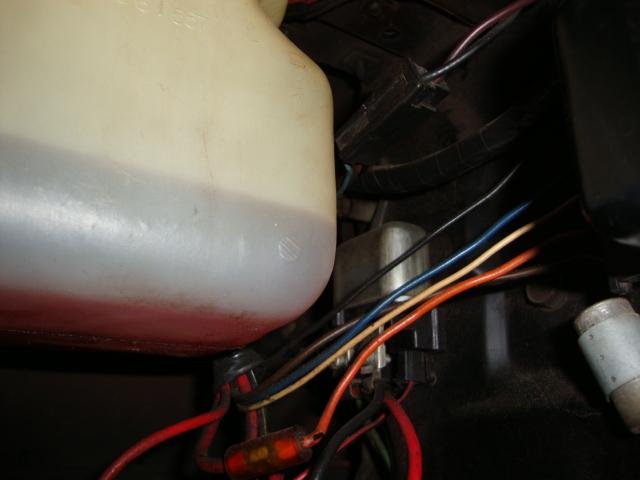

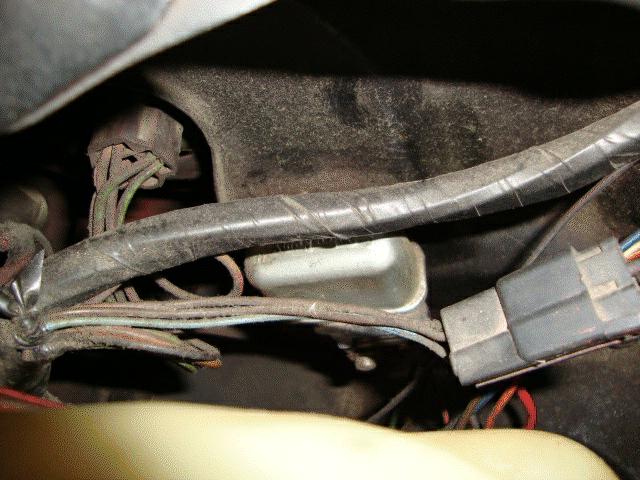

Horn Relay

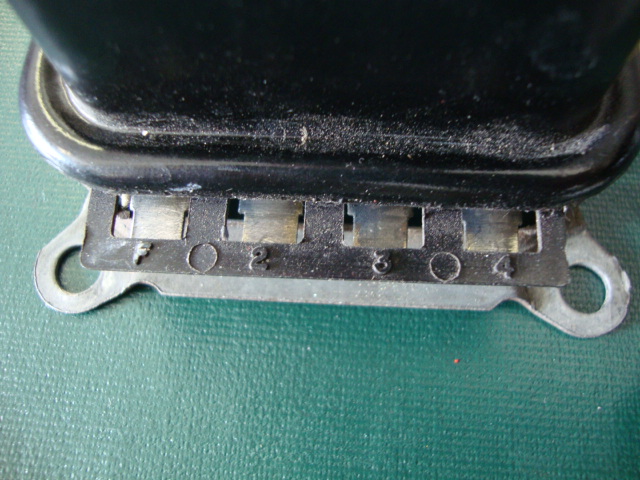

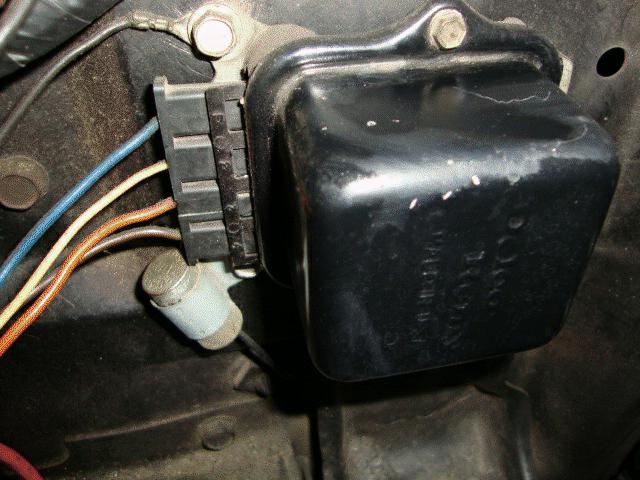

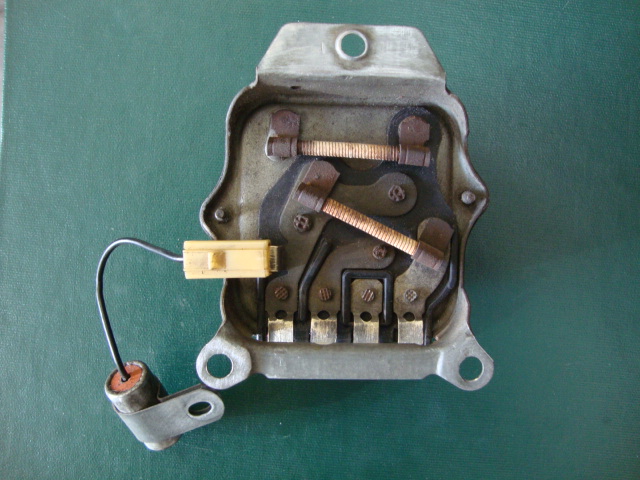

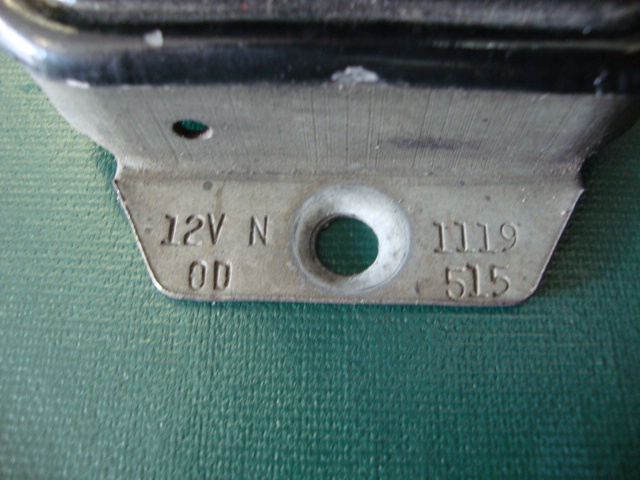

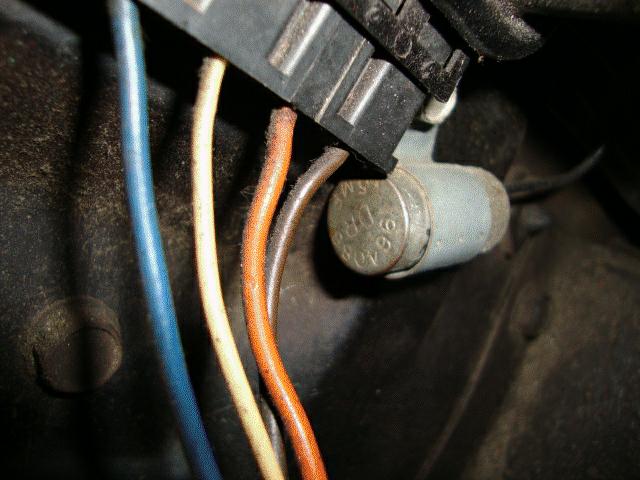

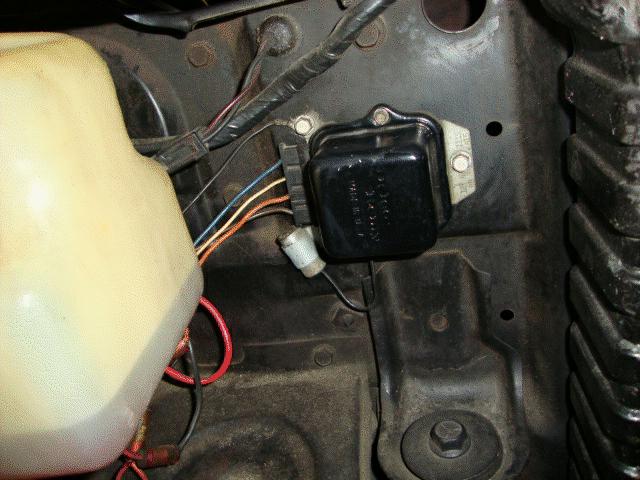

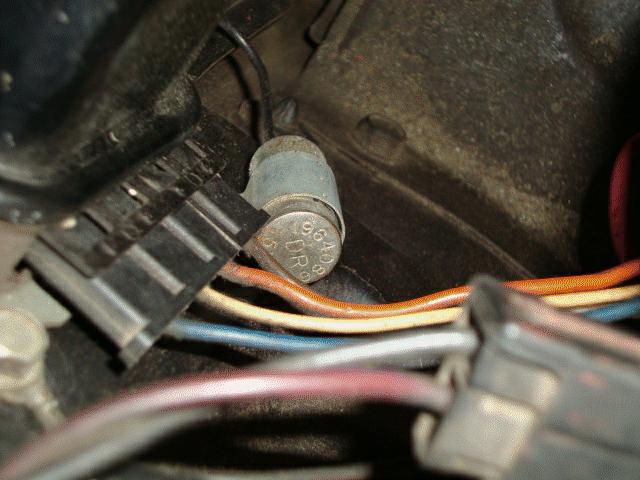

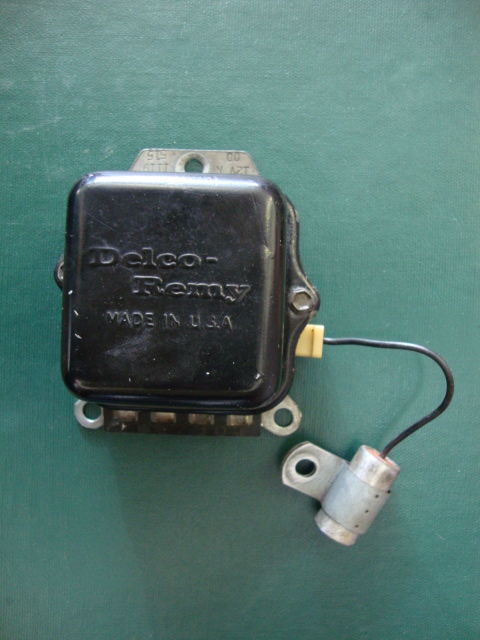

Voltage Regulator and Capacitor
The capacitor is # 1964086 .5 MF

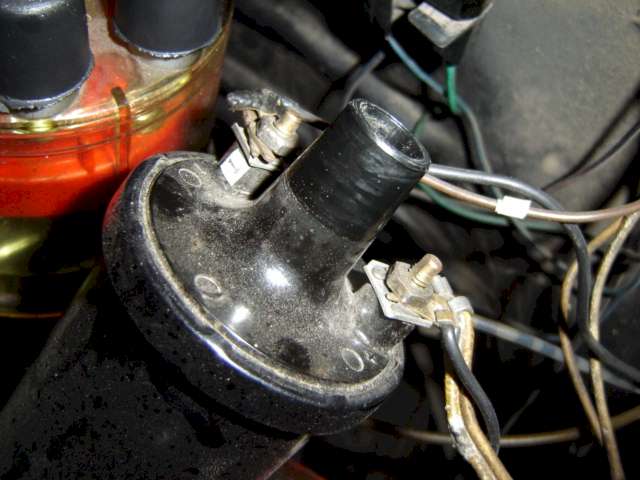

Coil
One wire you can't see is the black points wire to the - side of the coil

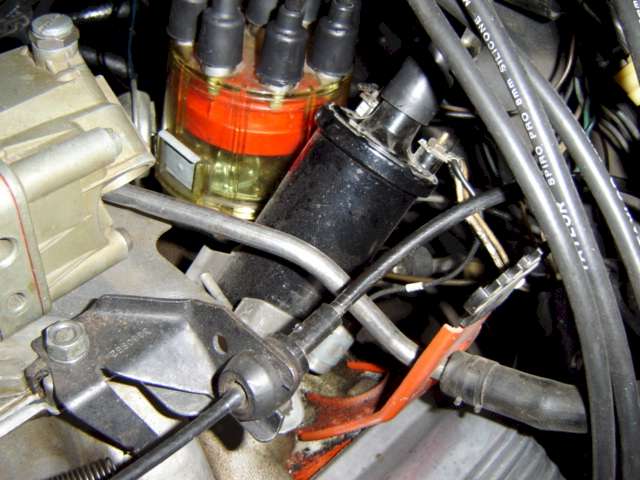

Coil showing the radio suppression condenser

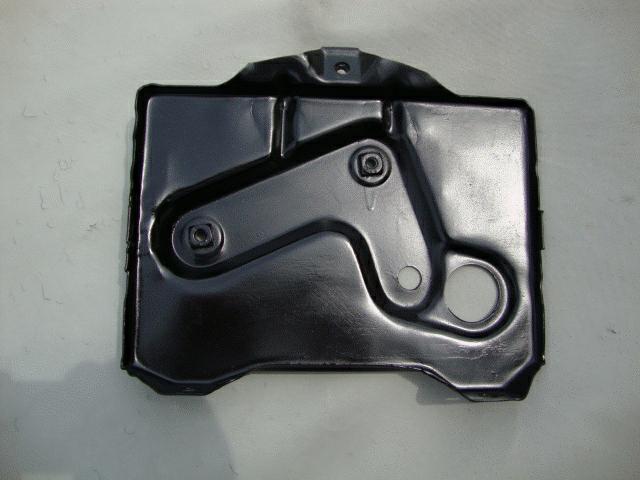

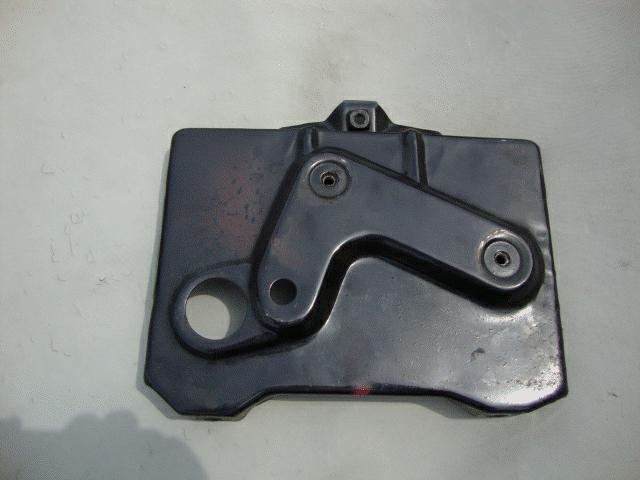

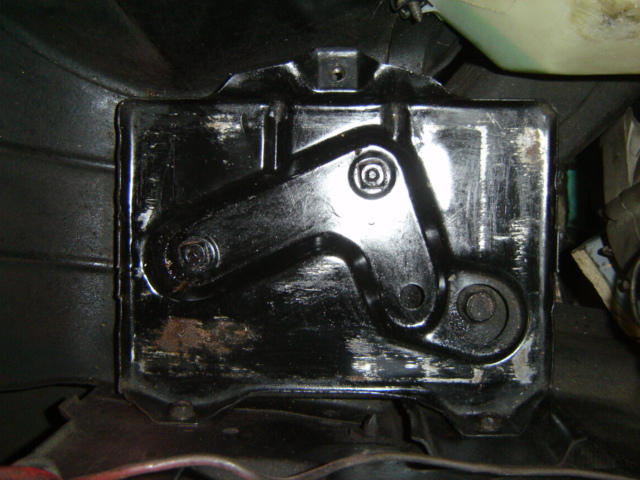

Battery Tray
From GM in 1985

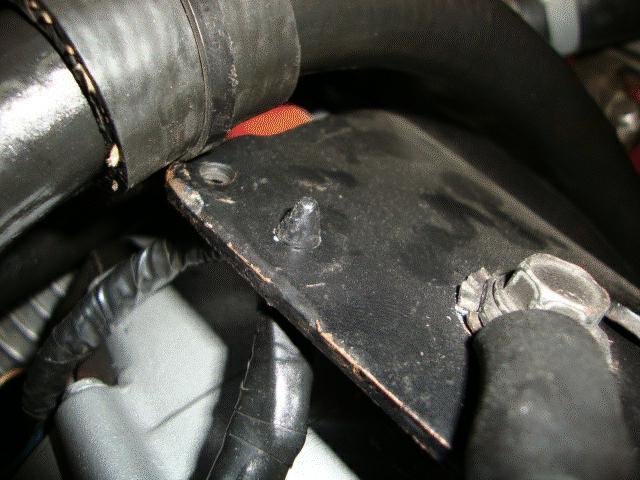

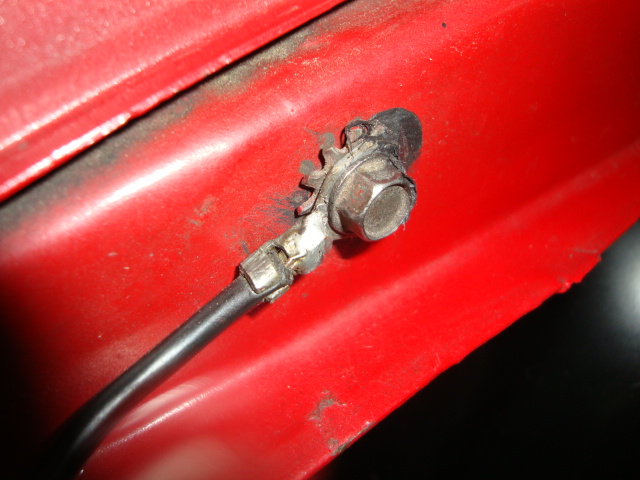

Battery Fender Ground

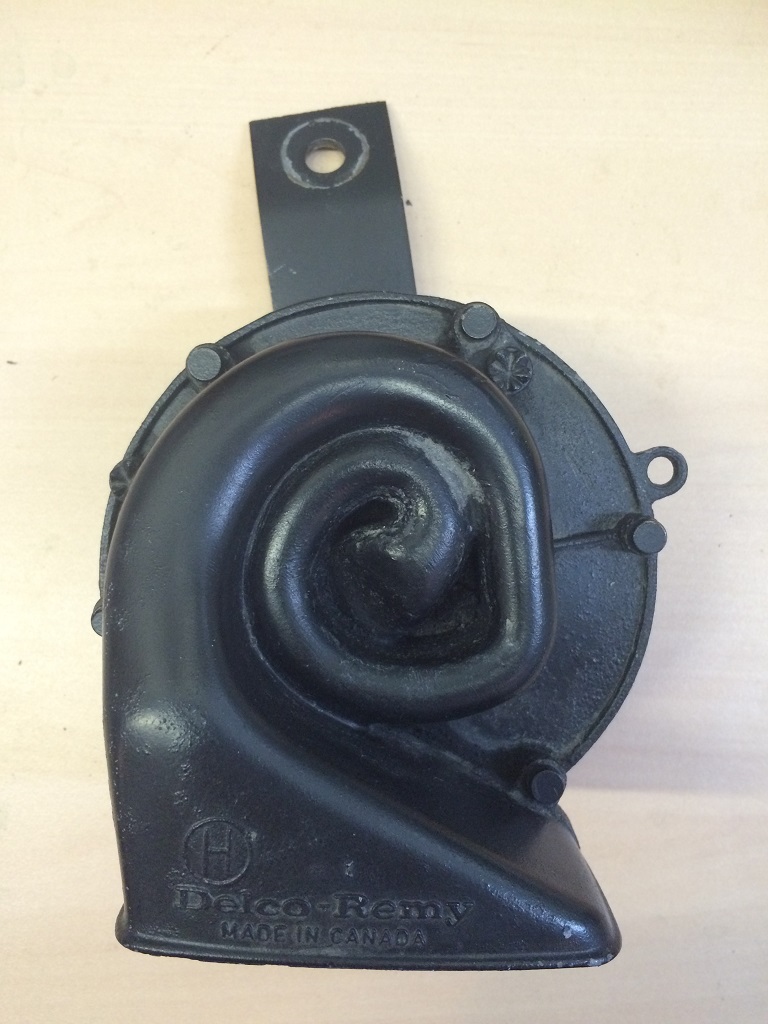

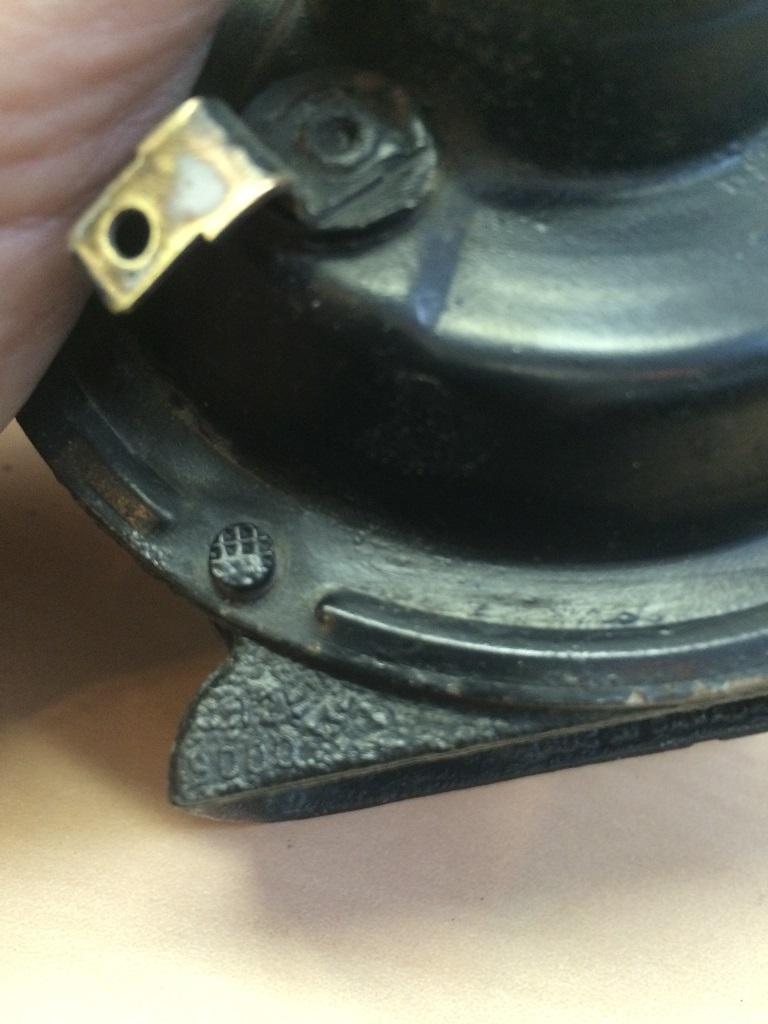

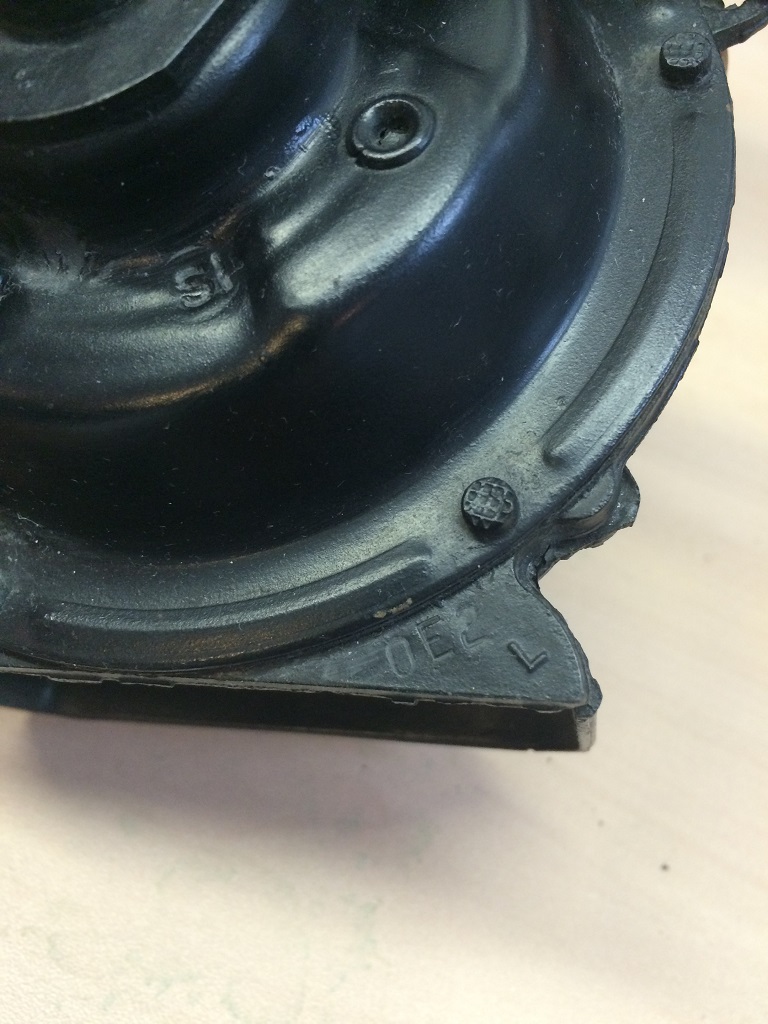

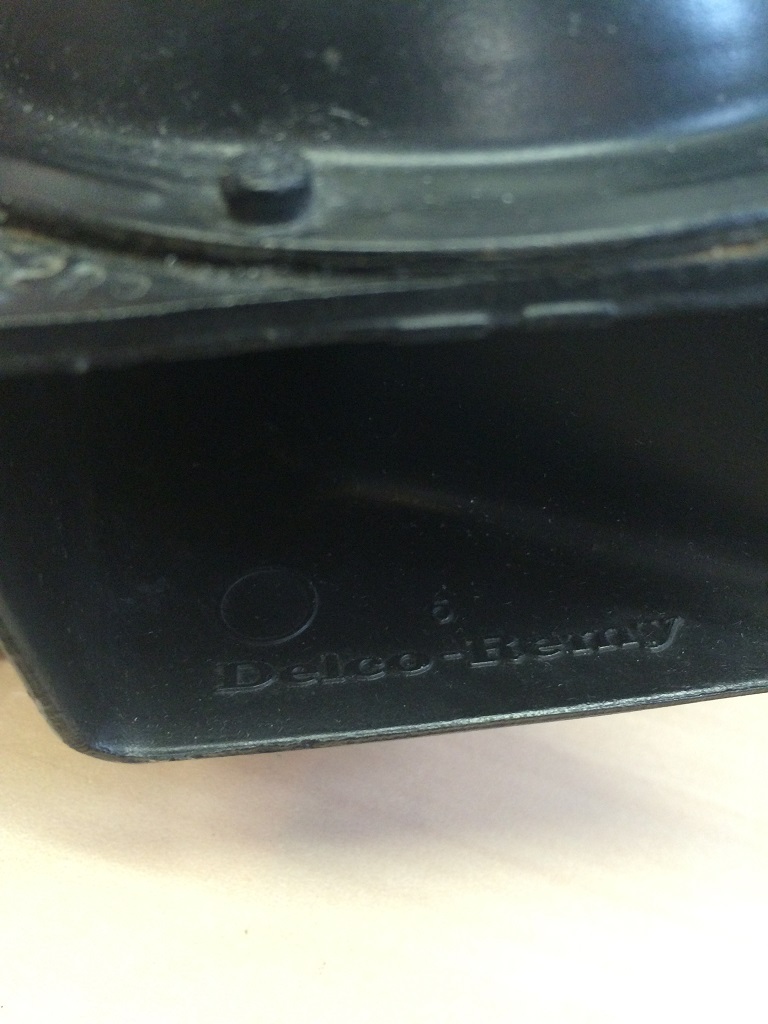

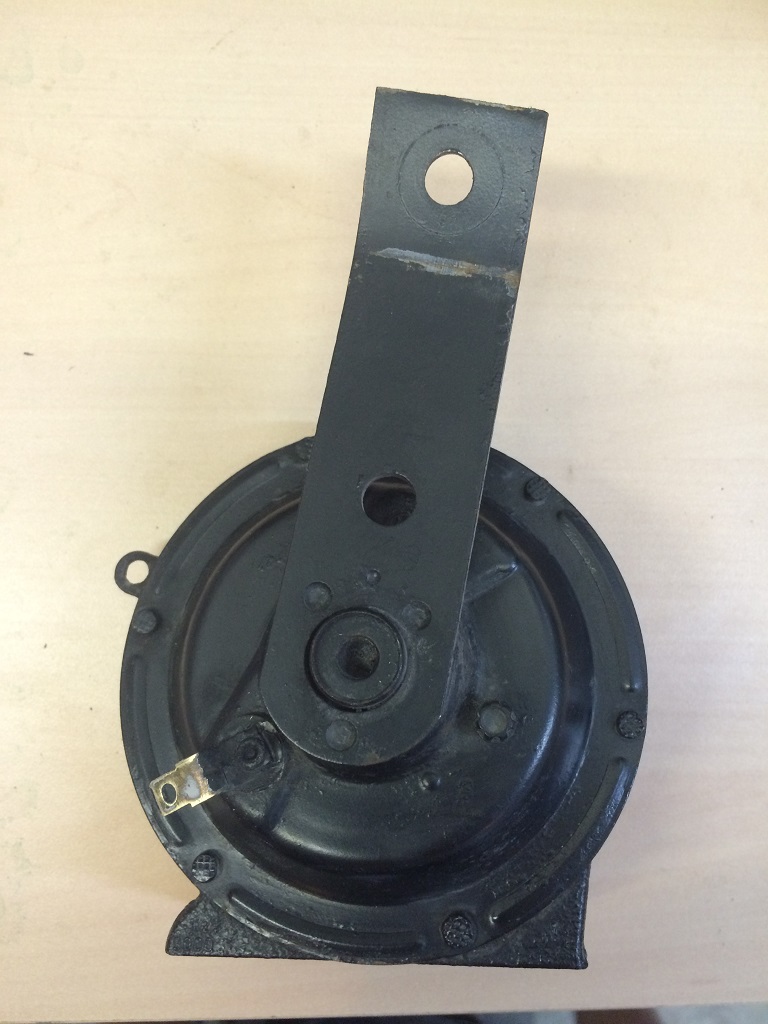

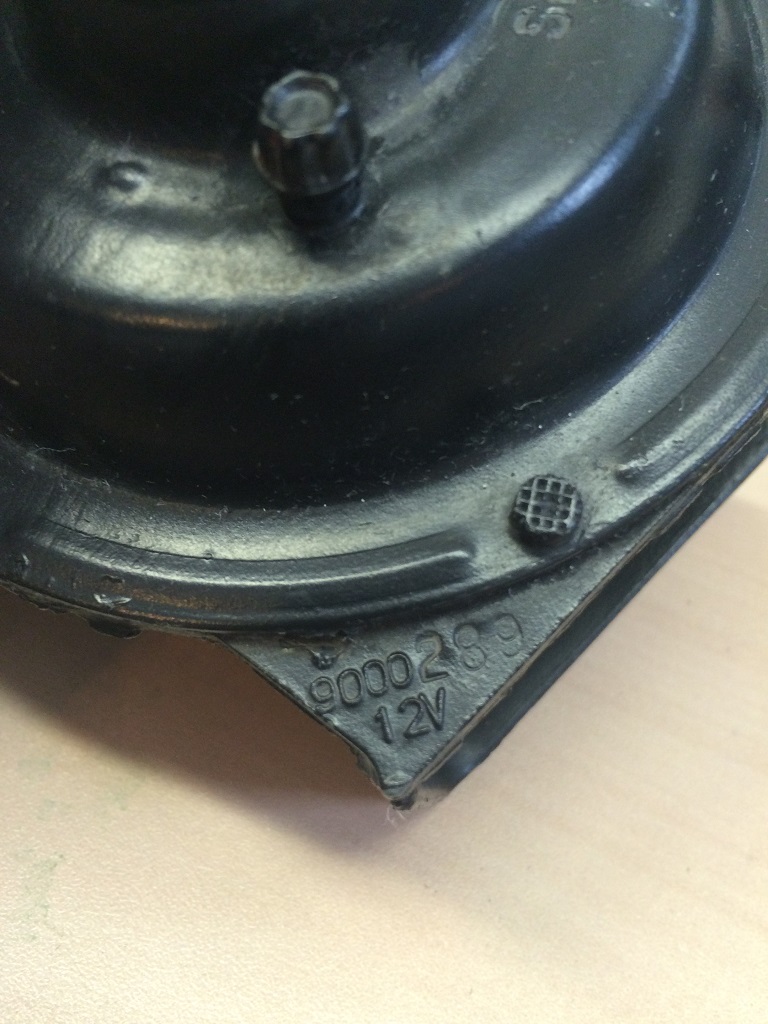

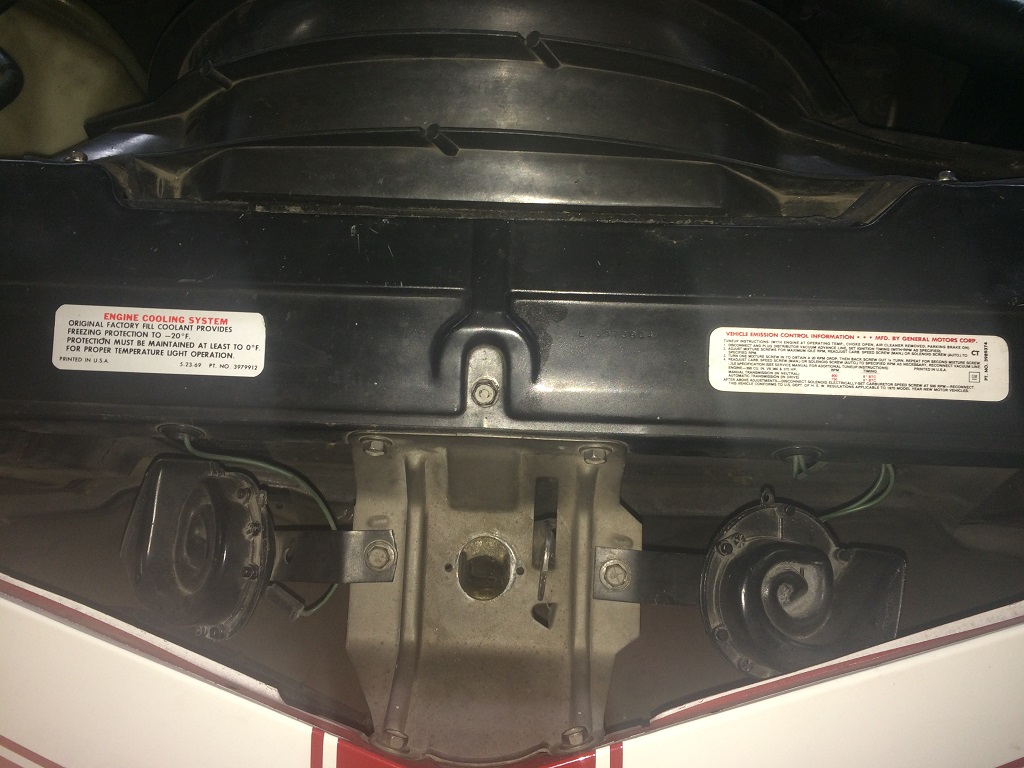

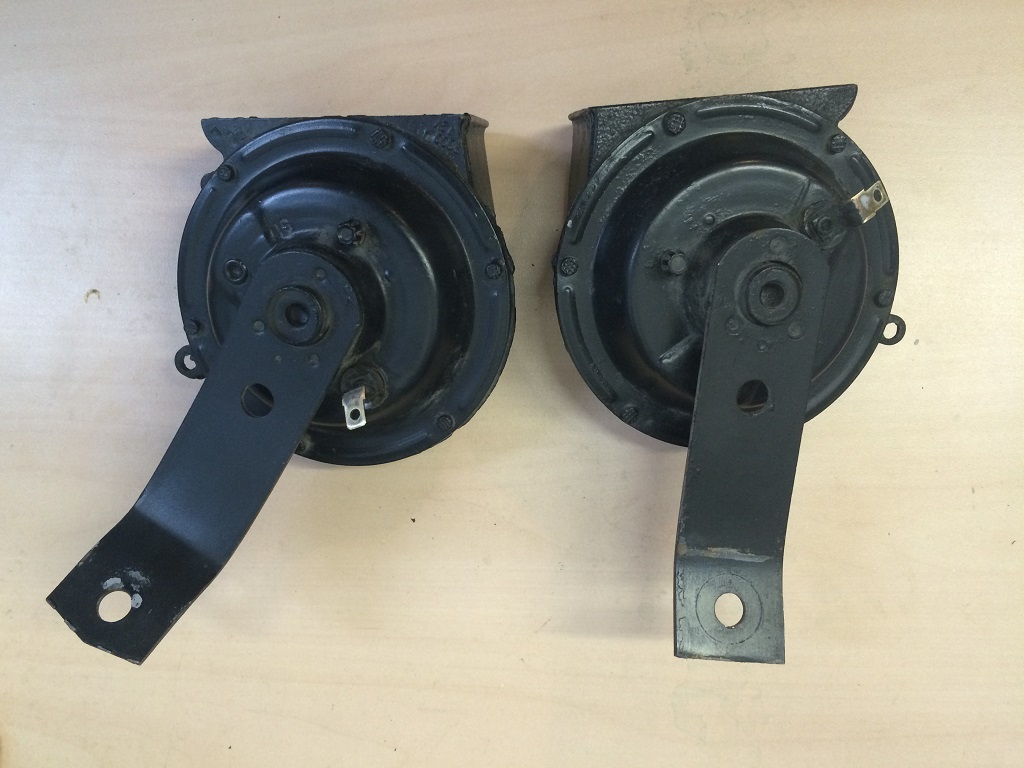

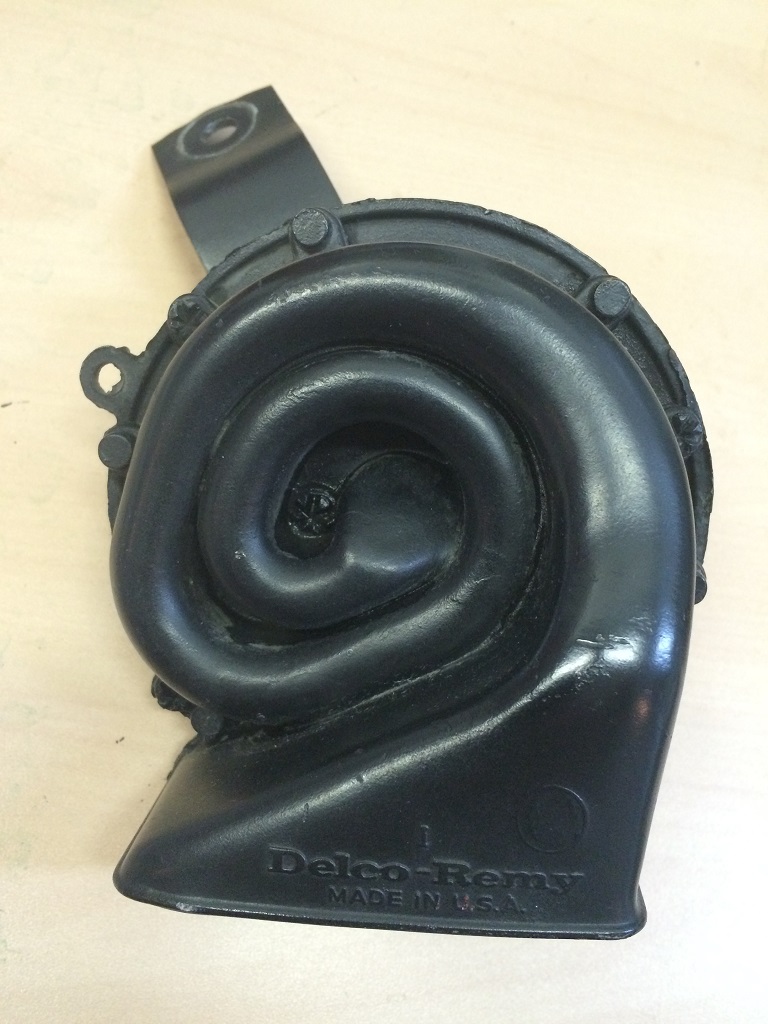

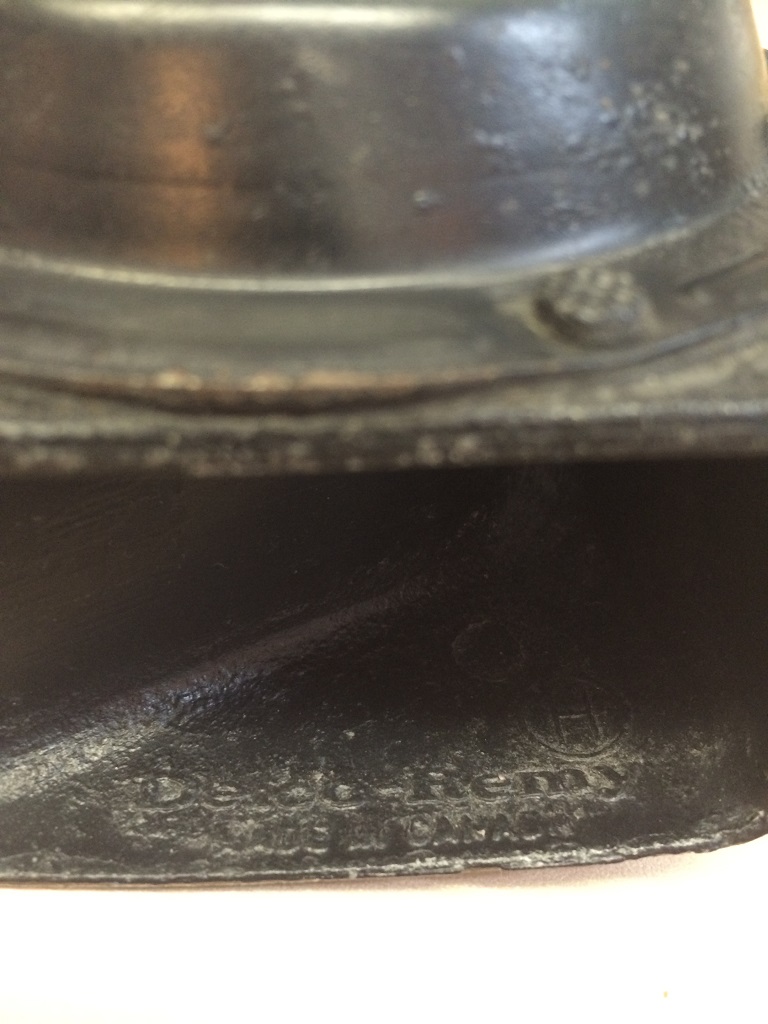

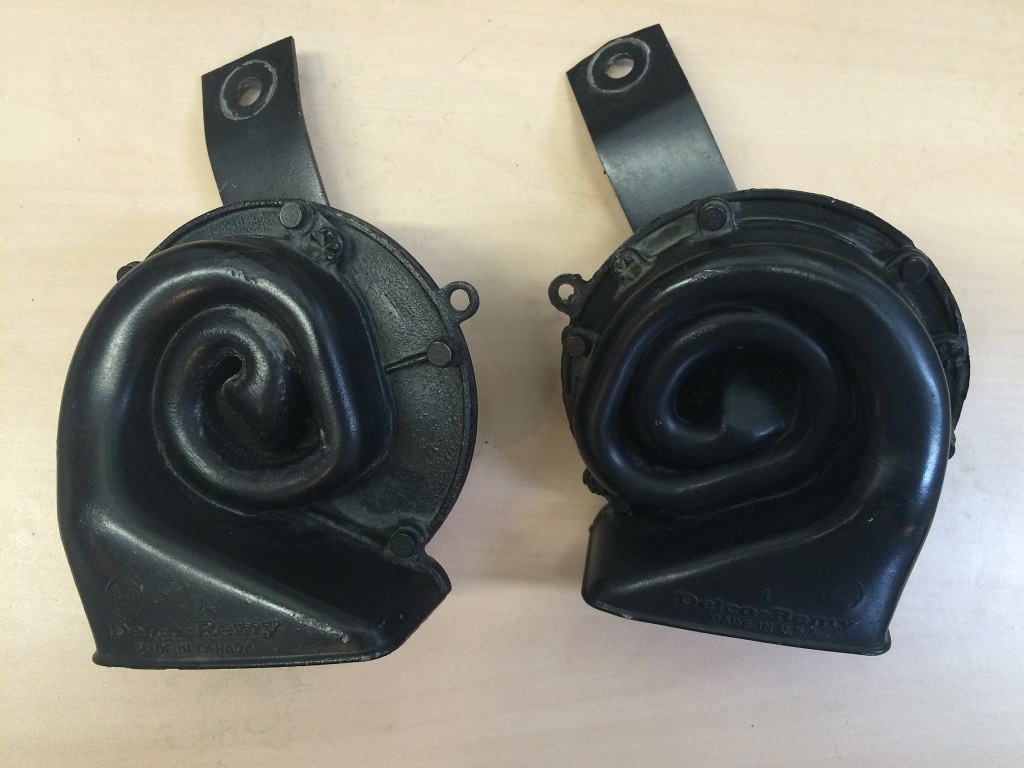

Horns
