Refresh Your Page for the Updates:

Nov 30, 2016 Added air breather lid inner stamping pics.

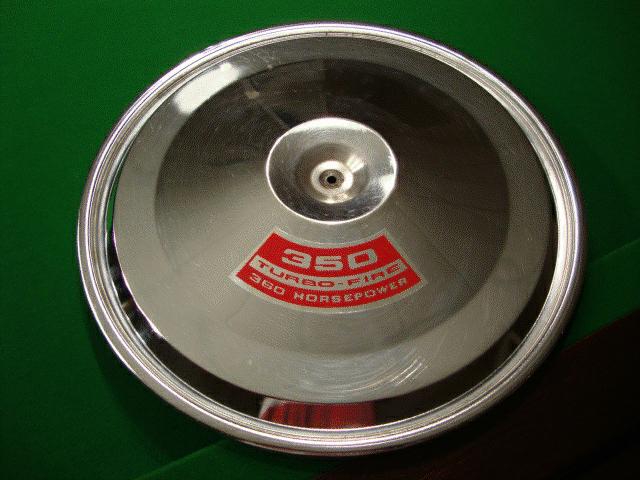

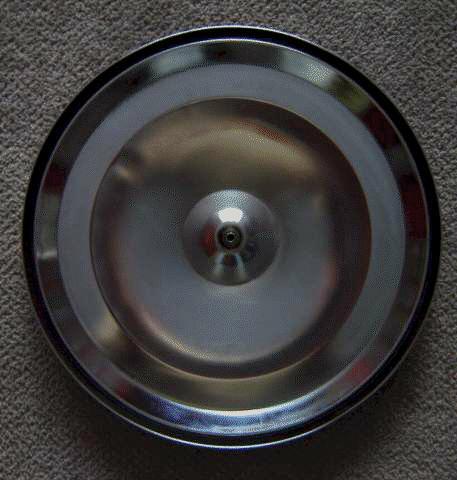

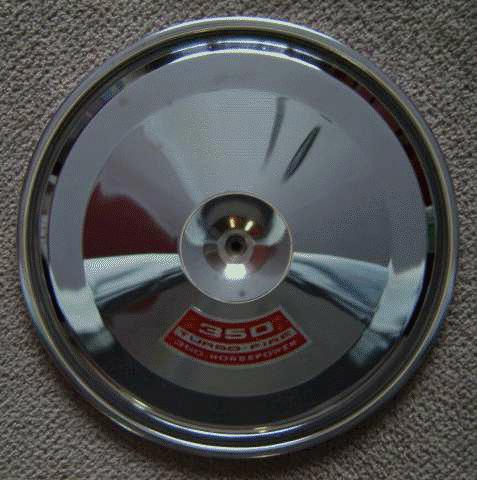

breather chrome top.jpg (28668 bytes) breather chrome underside.jpg (24535 bytes)

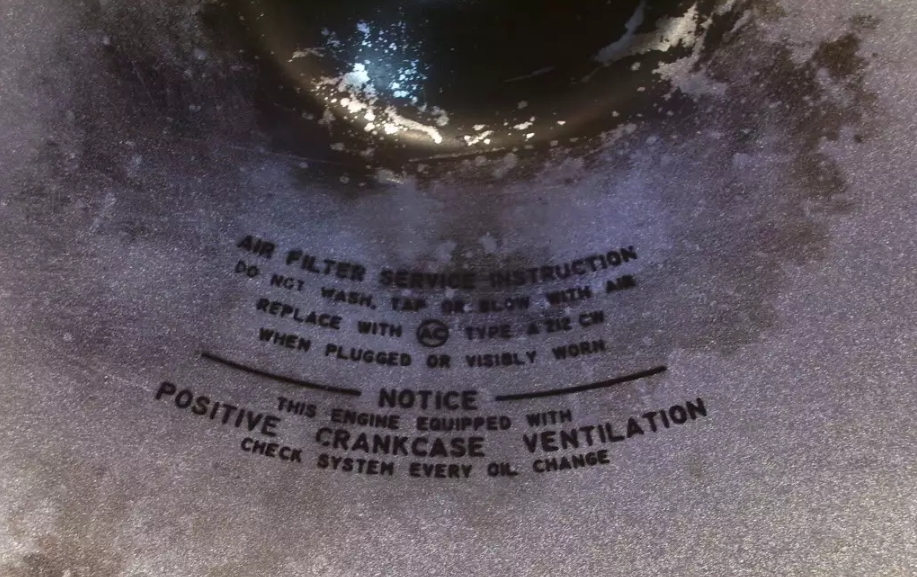

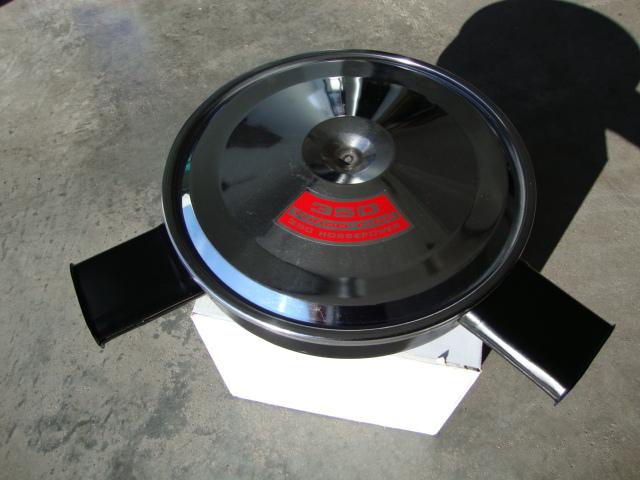

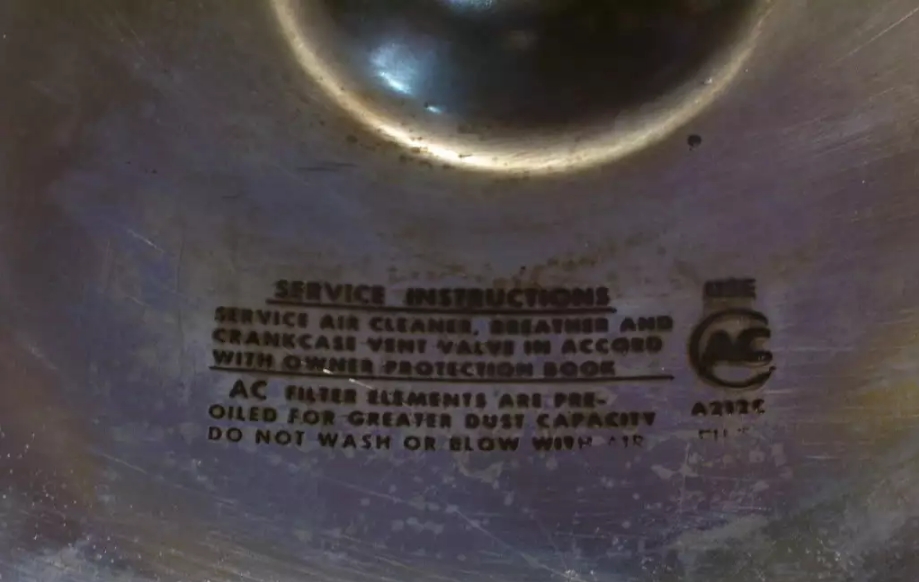

Assembly Line Chrome Lid Inner Stamping

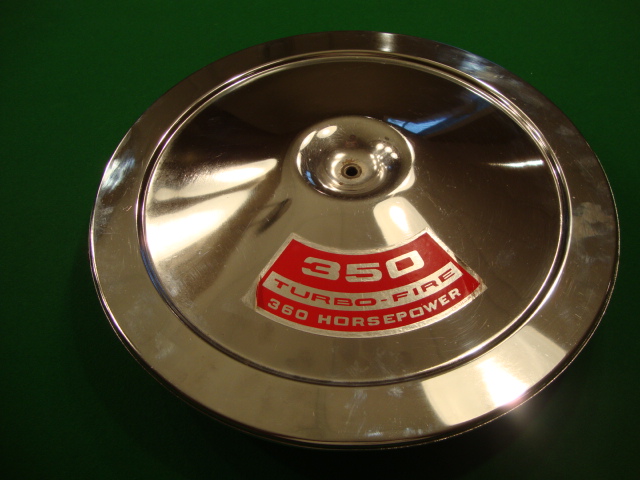

70-72 Z28



66-69 Chevy

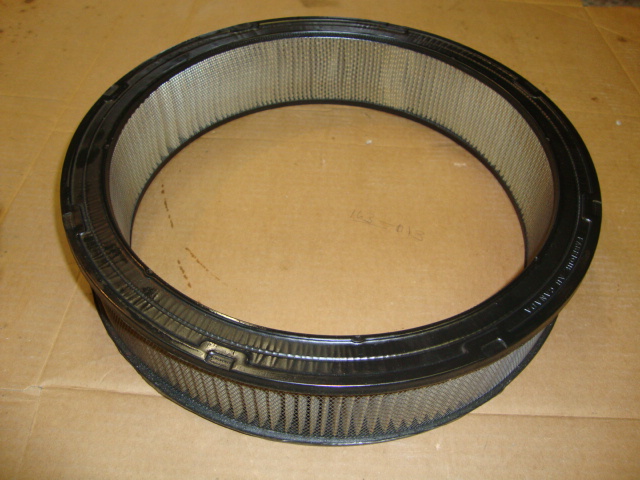

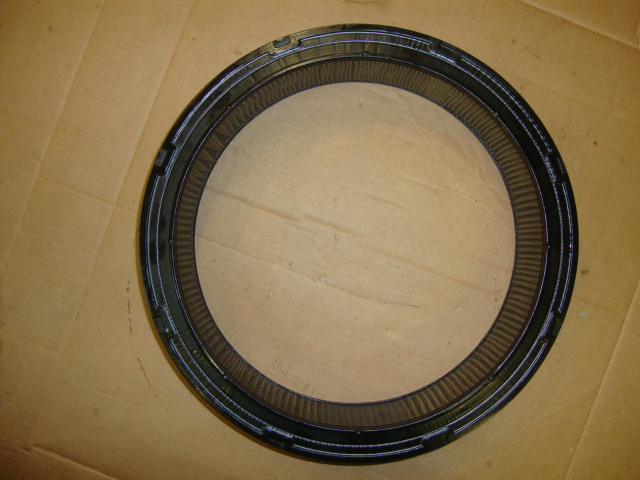

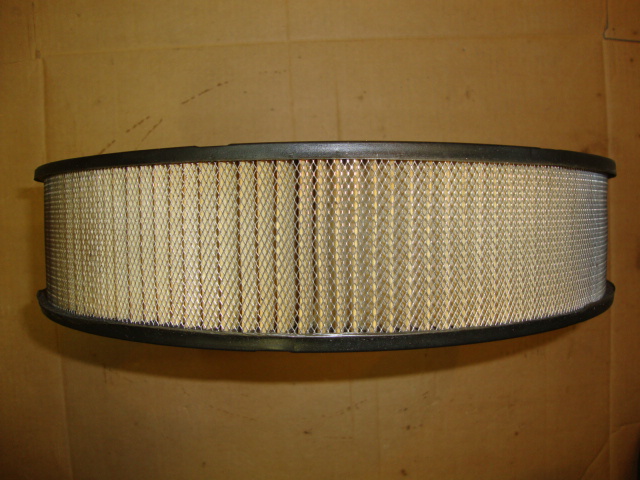

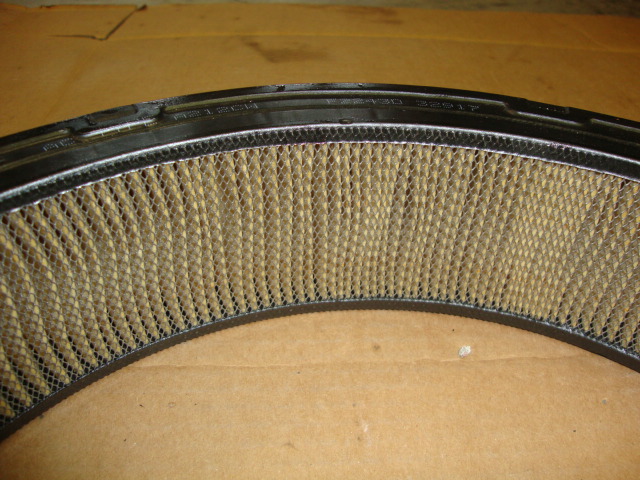

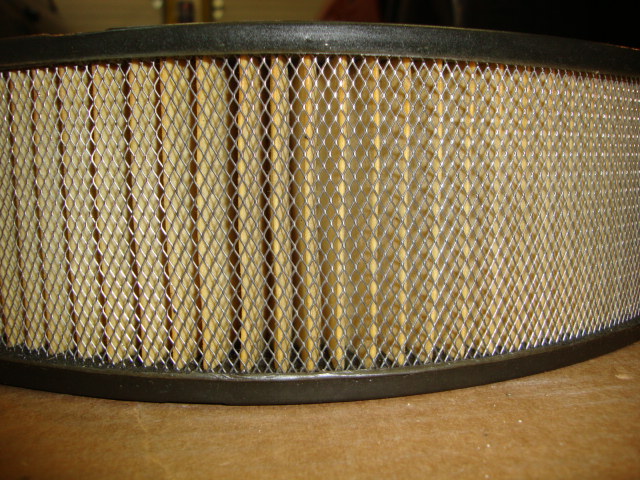

AC A212CW Air Filter









The originals had a square mesh then later GM came out with the diamond mesh as shown here which I still own.

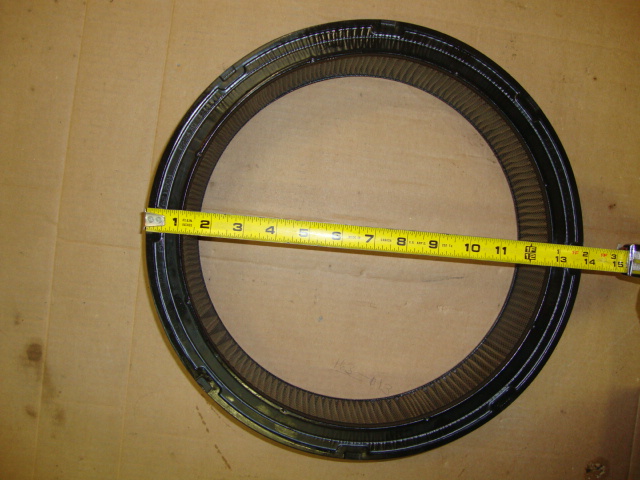

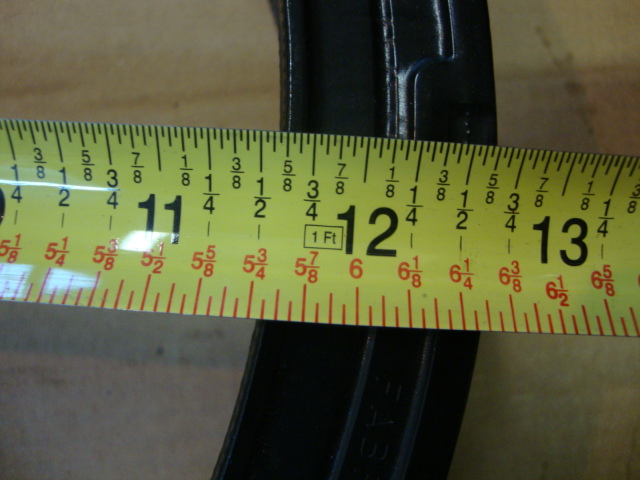

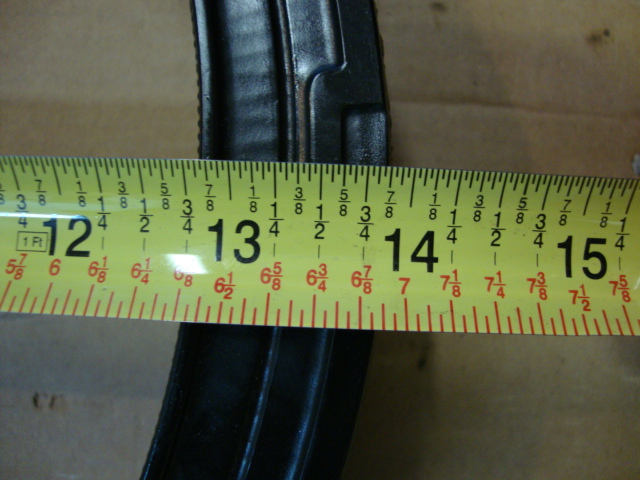

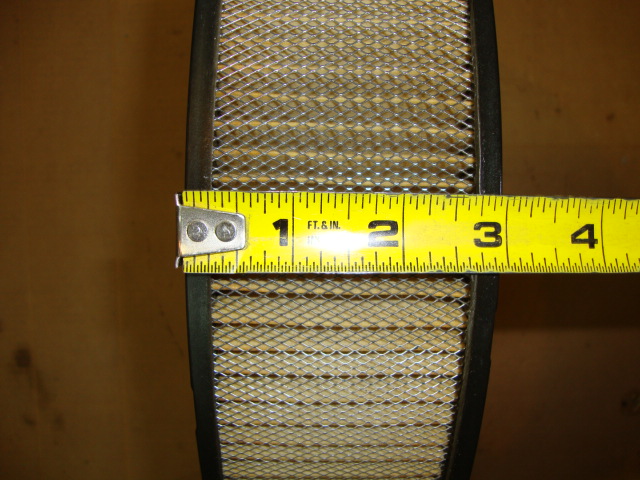

They call this a 14" x 3" filter even though it's not really 14" in diameter.

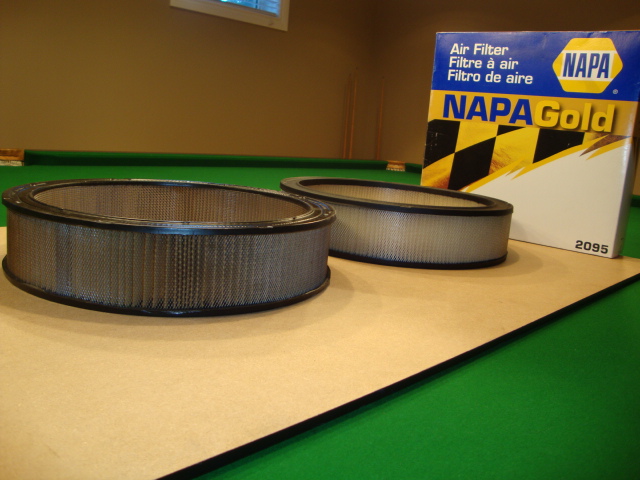

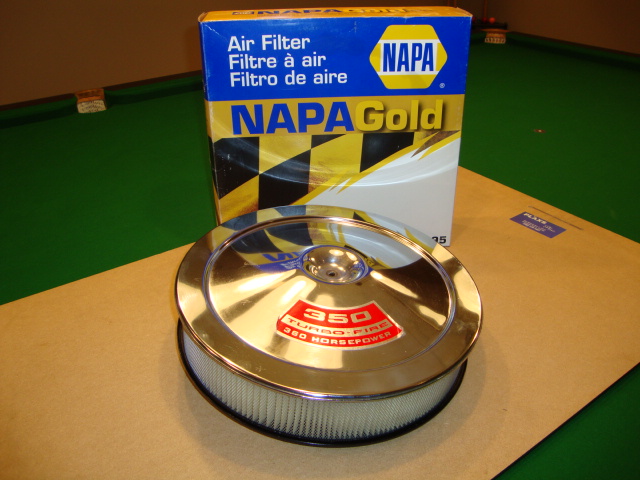

Compare 14" x 3" NAPA Gold 2095 vs ACDelco A212CW

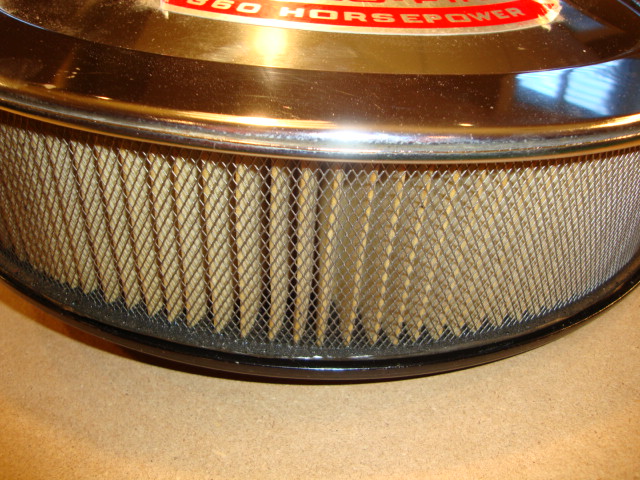

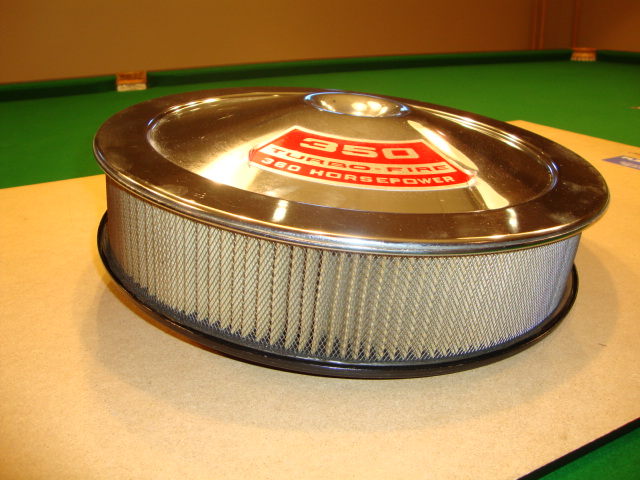

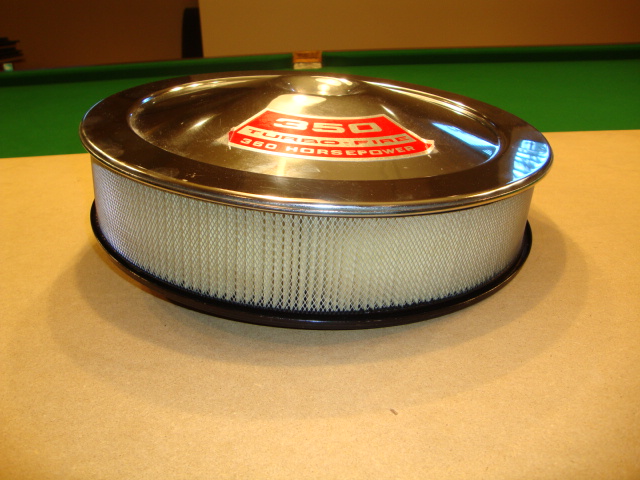

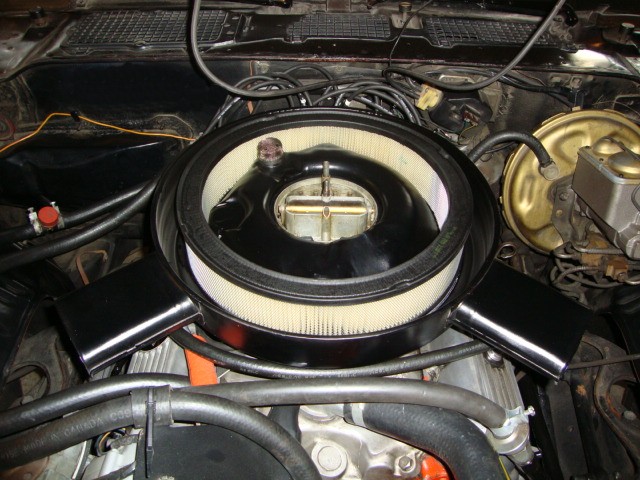

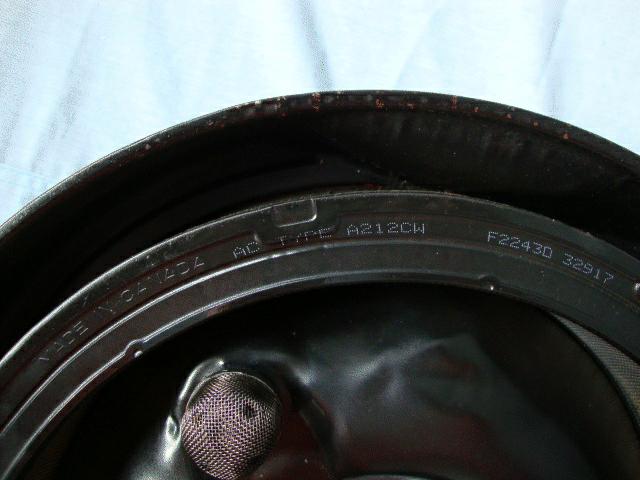

AC Delco A212CW in a GM open element breather

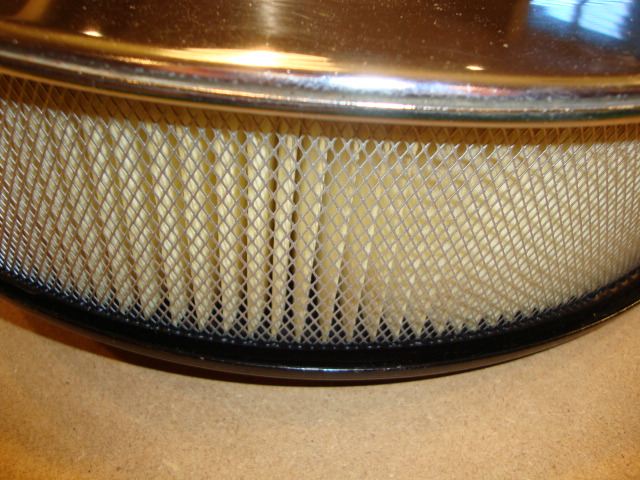

NAPA 2095 http://www.napaonline.com/Catalog/CatalogItemDetail.aspx?R=FIL2095_0297032694

Attributes:

Air Filter Bottom I.D. (Inches) : 11.625"
Air Filter Bottom I.D. (mm) : 295 mm
Air Filter Bottom O.D. (Inches) : 13.875"
Air Filter Bottom O.D. (mm) : 352 mm
Air Filter Height (Inches) : 3.087"
Air Filter Height (mm) : 78 mm
Air Filter Top I.D. (Inches) : 11.62"
Air Filter Top I.D. (mm) : 295 mm
Air Filter Top O.D. (Inches) : 13.87"
Air Filter Top O.D. (mm) : 352 mm
Air Filter Style : Air Filter

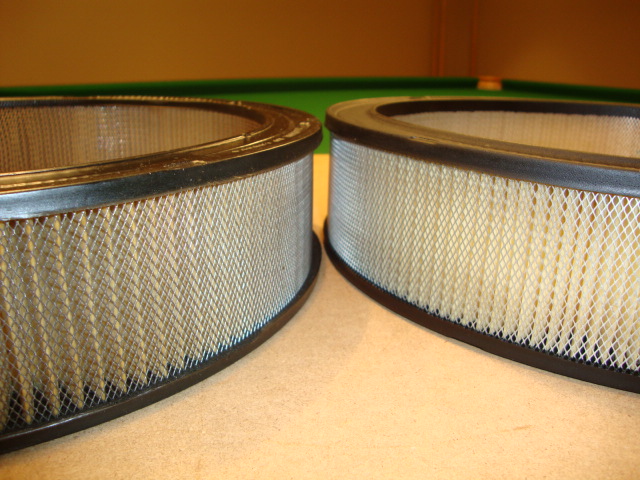

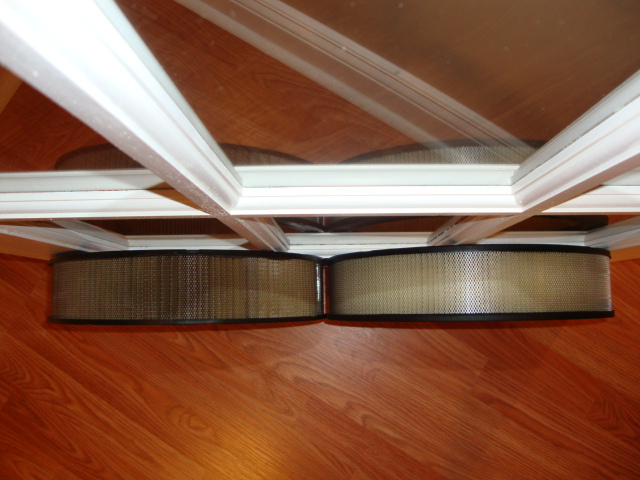

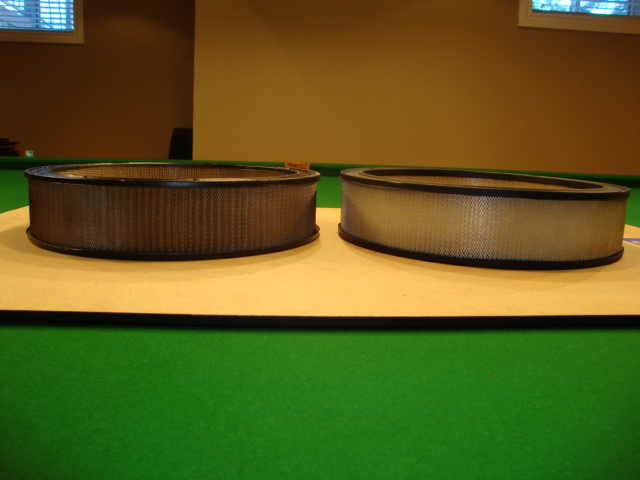

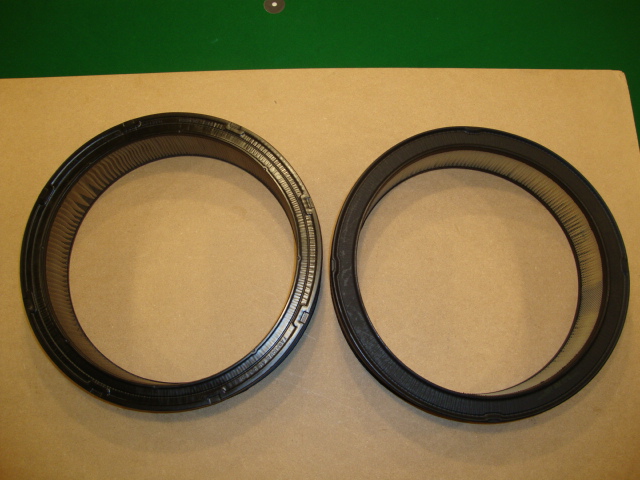

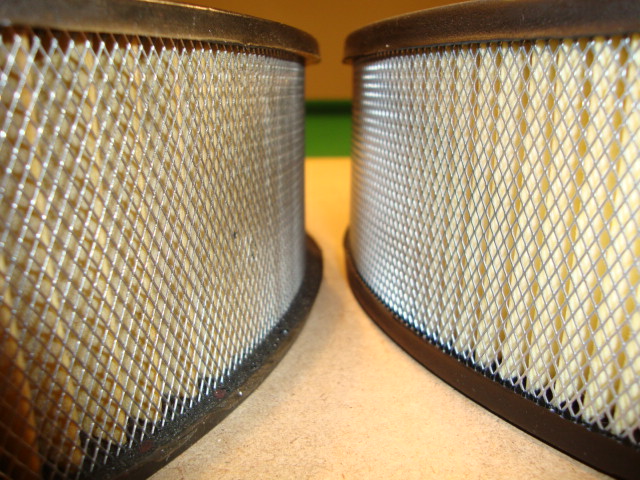

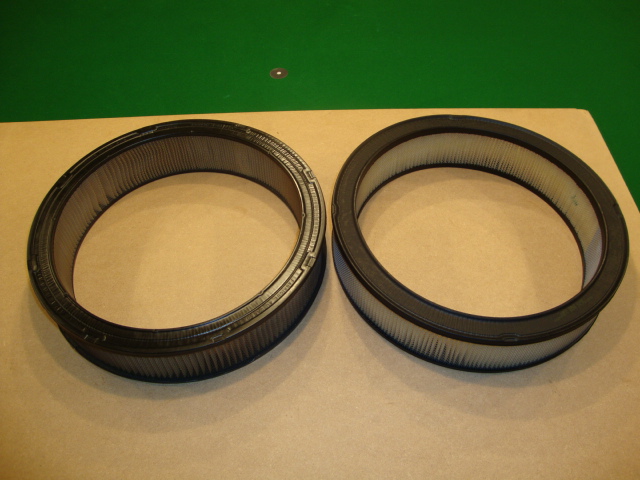

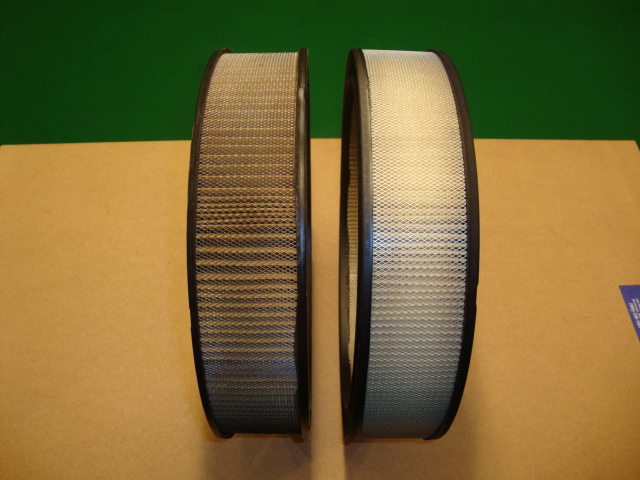

Side by side (AC on the left)



I notice that the black rubber is a hair thicker on the NAPA 2095. Otherwise they've nailed it right on spec.

Also it seems there are more filter webs in the NAPA.

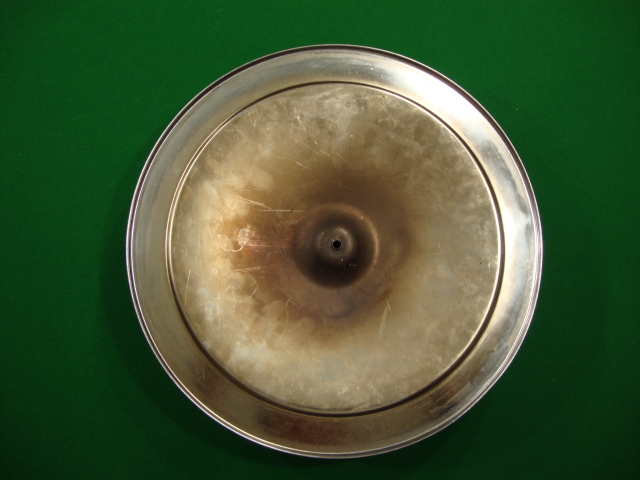

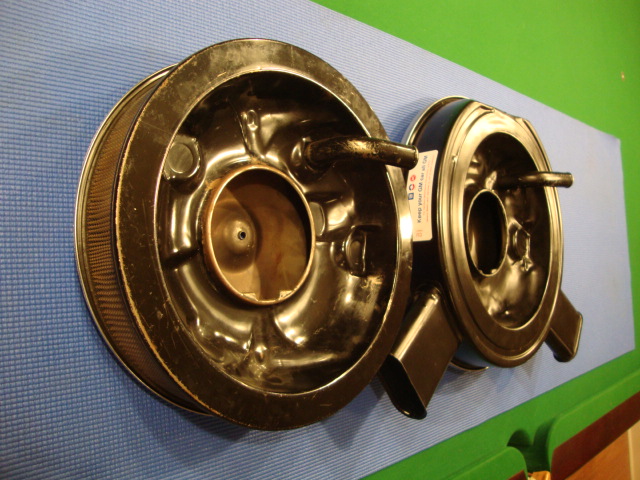

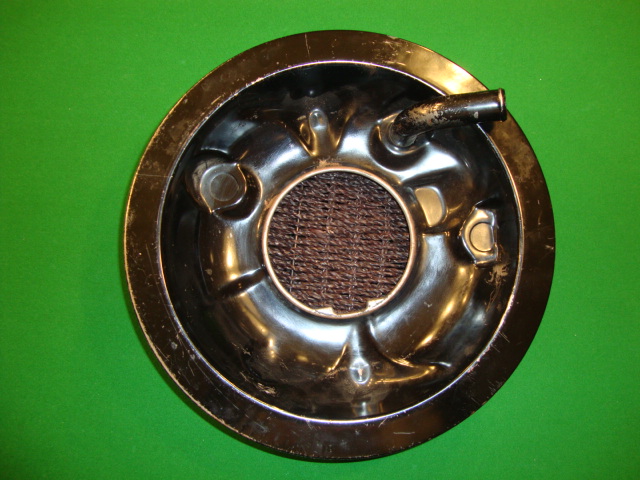

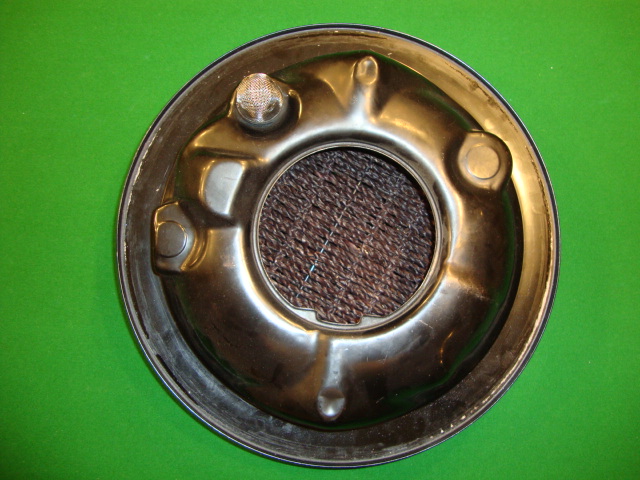

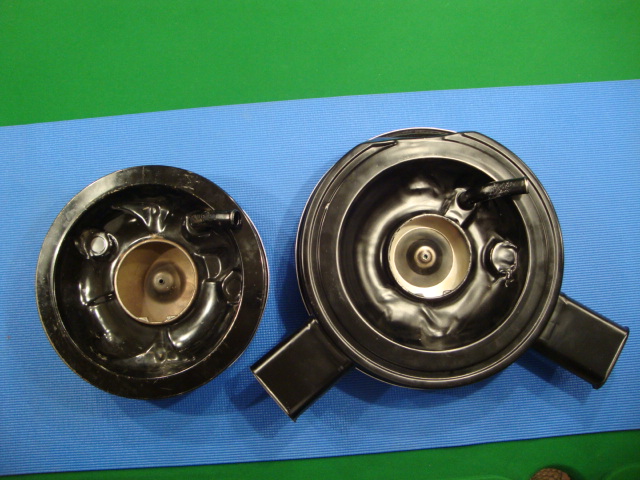

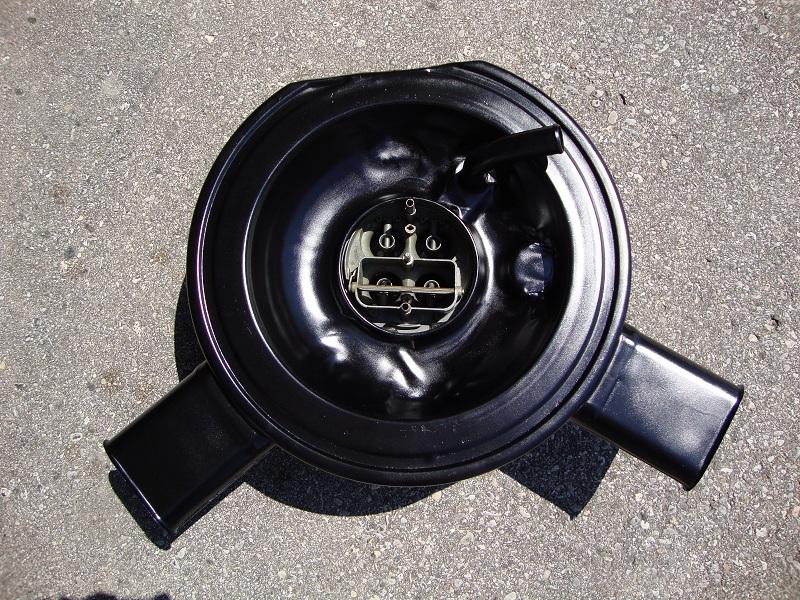

1st and 2nd Gen Underside Comparison



Base is 14-3/16 in dia.

Lid is 14-1/4" in dia
