Last Update: Mar 10, 2019 - added Upholstery Co name where I bought my cloth for my 1 seat



On this page:  Interior Codes - Carpet - Gas Pedal - Arm Rest - Brake & Clutch Pedals - Radio - Trim - Sails



Interior Codes:

710
Sw/std

711
Bk/std

712
Bk/cv

713
Bkw/cc

714
Bkb/cc

715
B/std

716
B/cv

720
Bkg/cc

723
Dg/std

724
Dg/cv

725
Bk/cc

726
S/std

727
S/cv

730
Sw/cv

Abbreviations:

B = Blue, Bk = Black, Bkb = Black with blue accents, Bkg = Black with green accents, Bkw = Black with white accents,

cc = Custom cloth, cv = Custom vinyl, Dg = Dark green, S = Saddle, Sw = Sandlewood, std = standard, W = White.

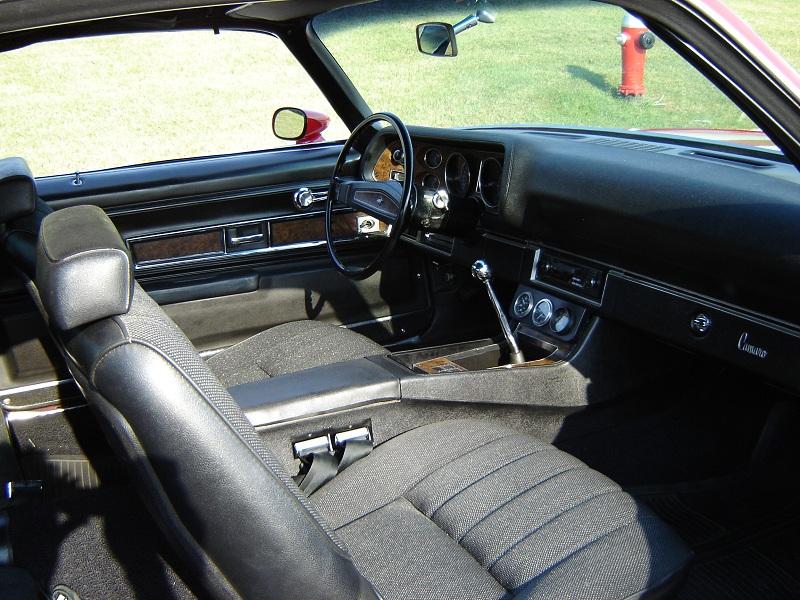

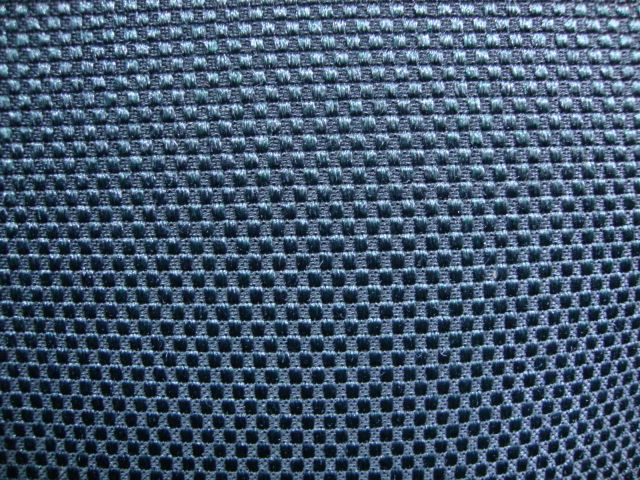

Mine is a 725 trim code interior cloth





My custom cloth material was ordered from this Upholstery Co in 1985.

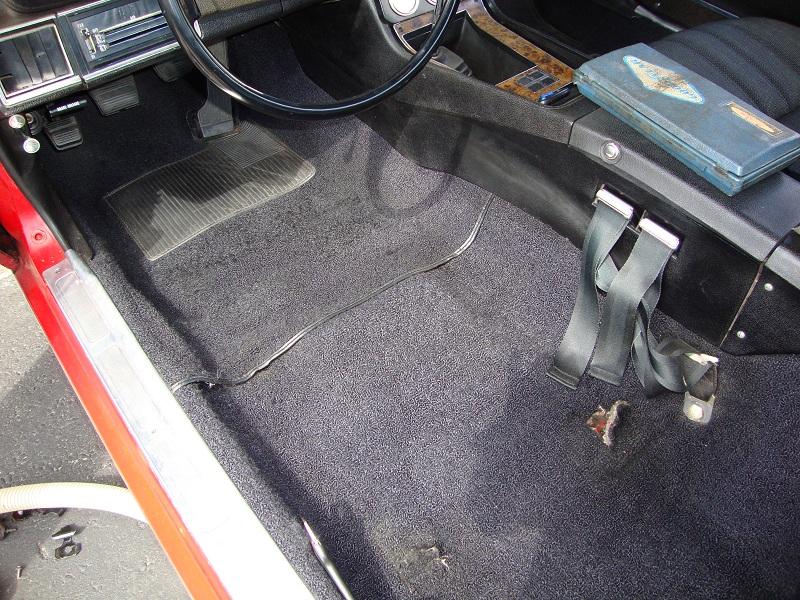

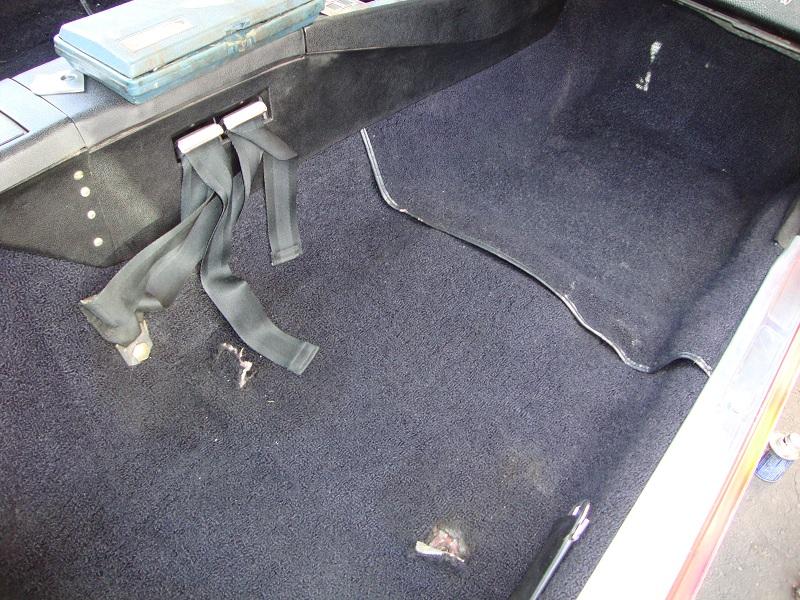

 Carpet

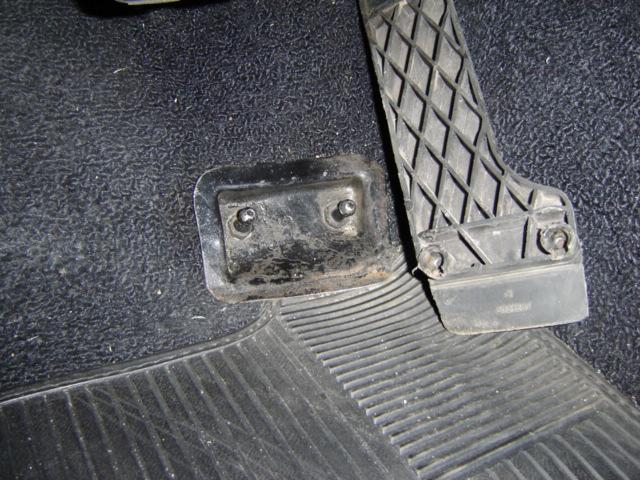

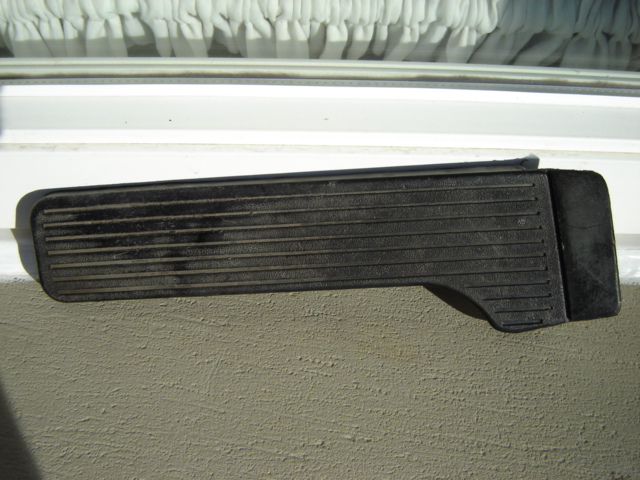

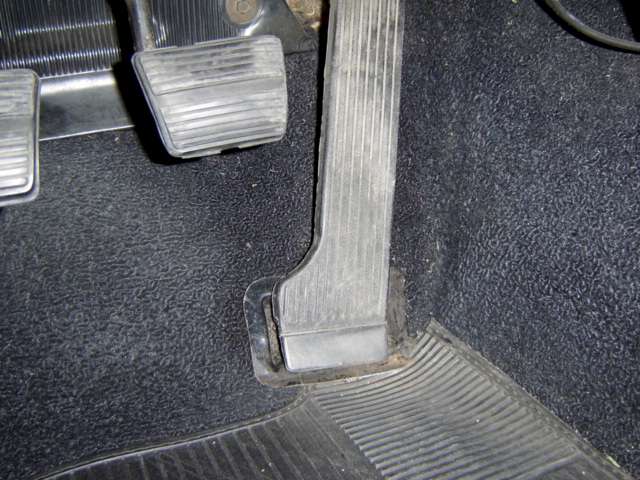

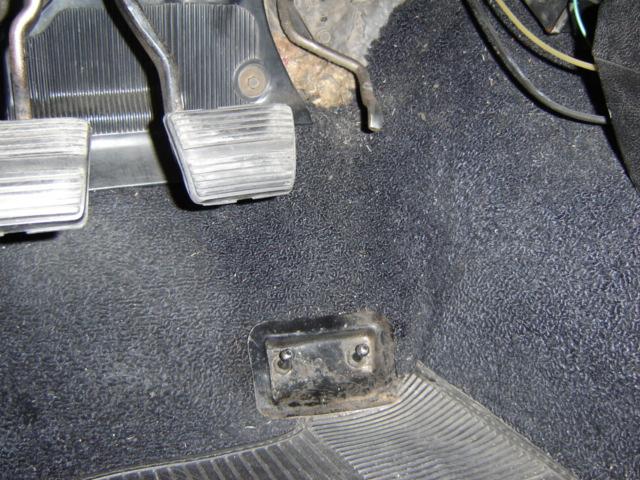

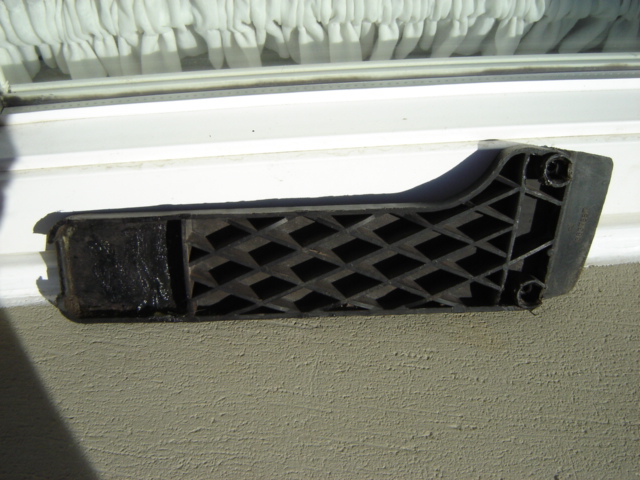

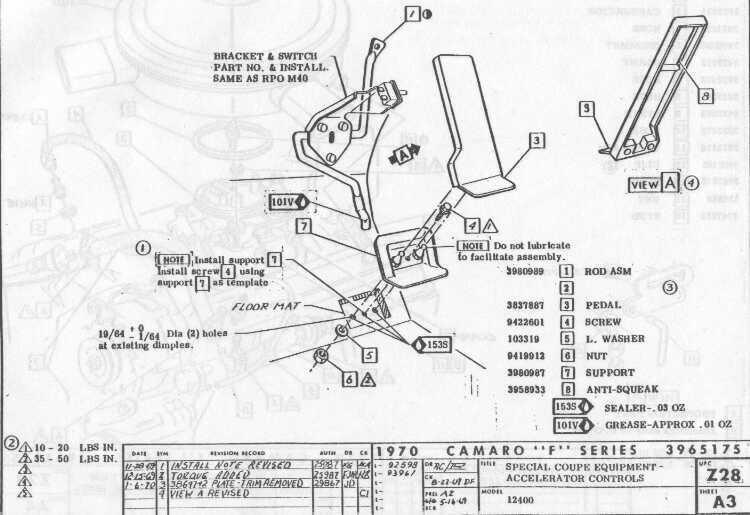

Gas Pedal



gas pedal mount.jpg (45843 bytes) gas pedal.jpg (51599 bytes)

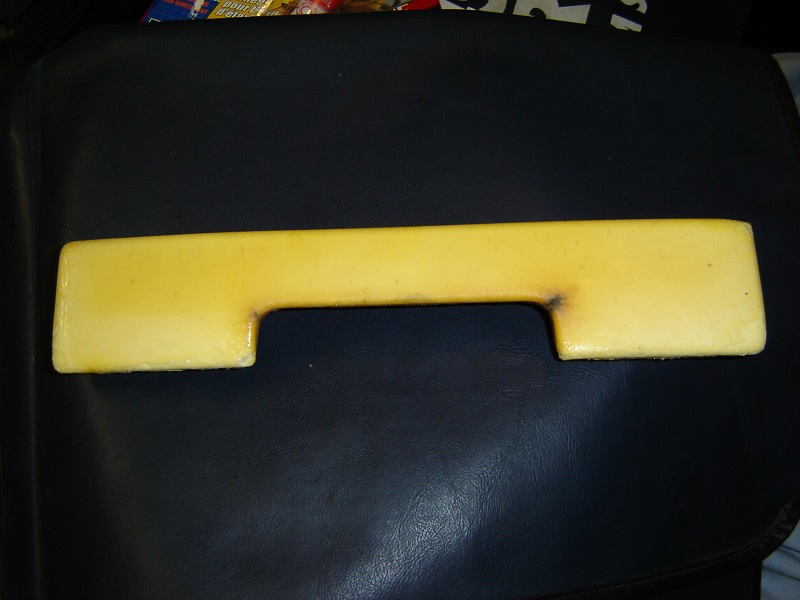

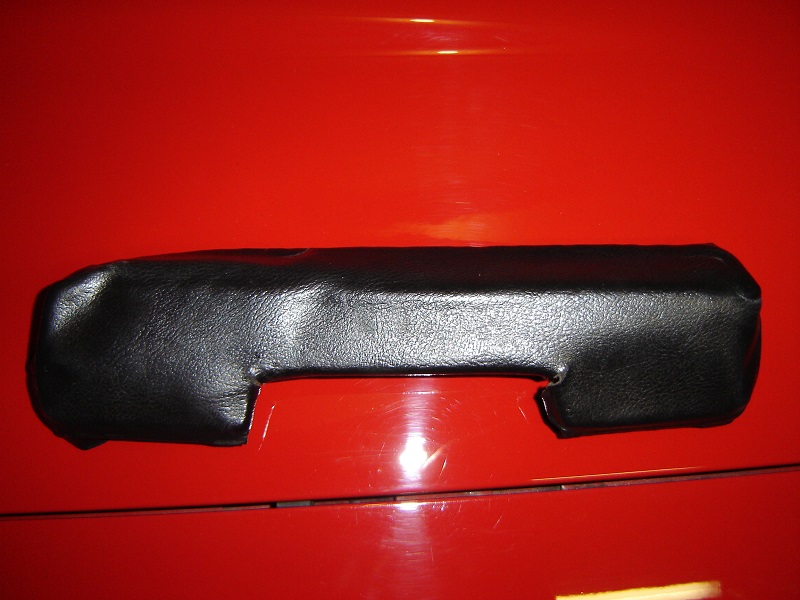

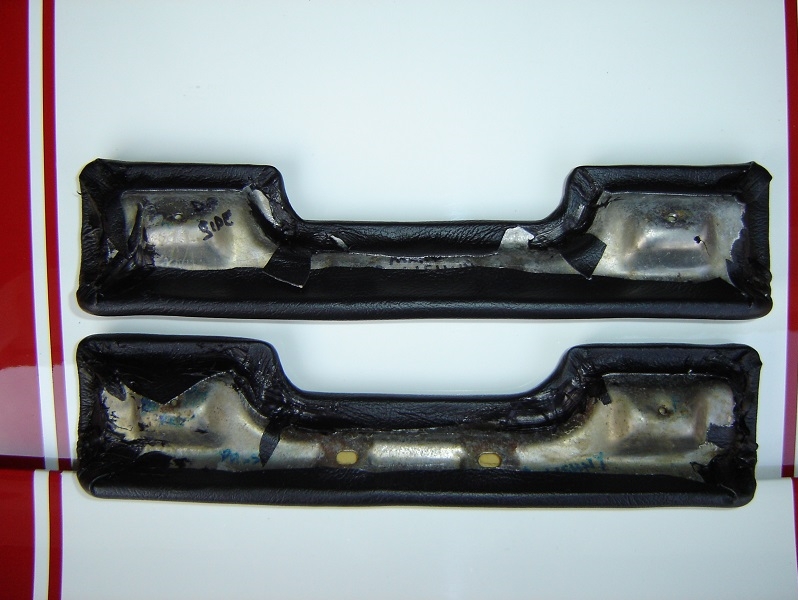

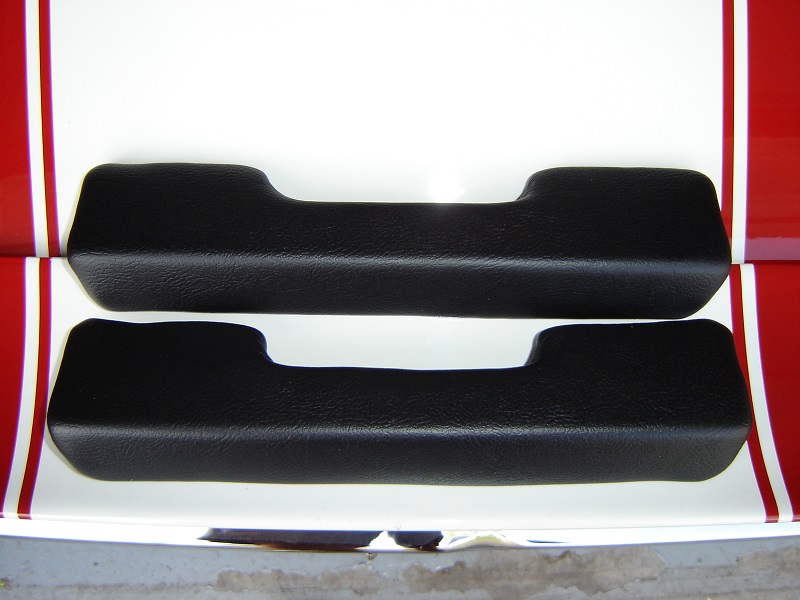

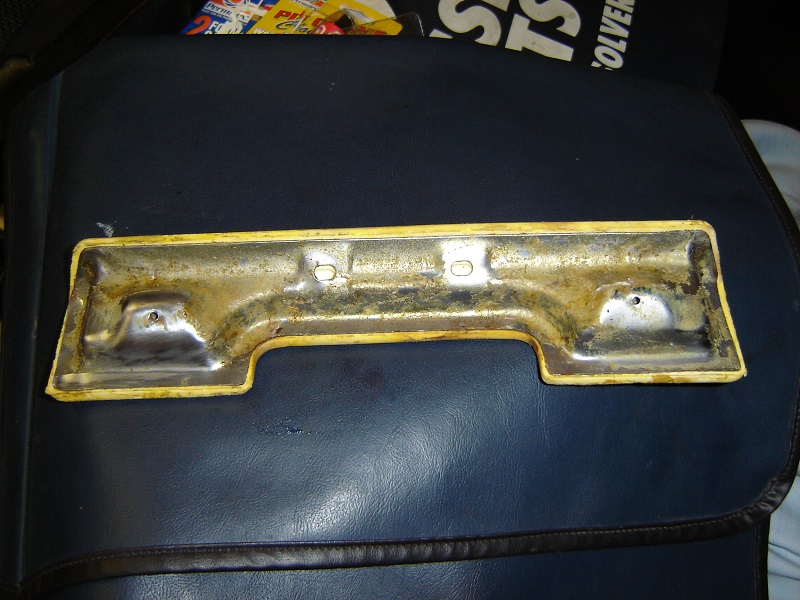

Recovered arm rests

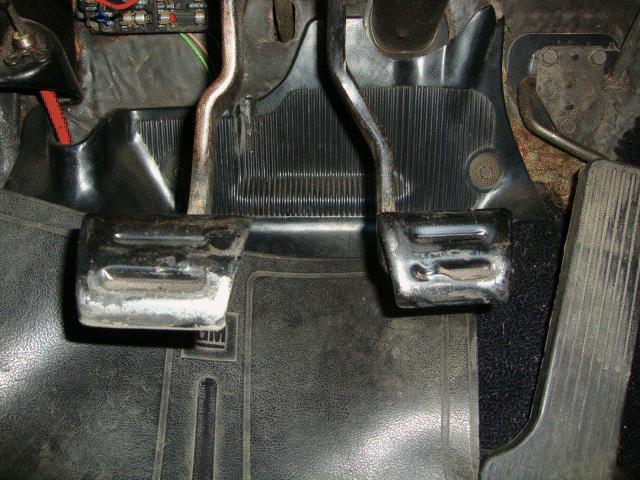

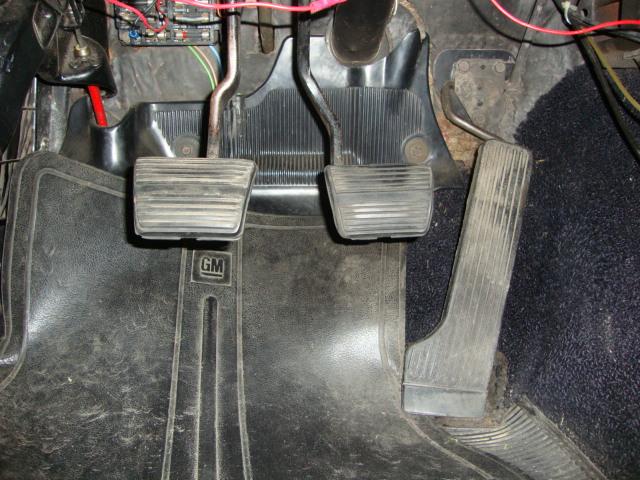

Brake and Clutch Pedals

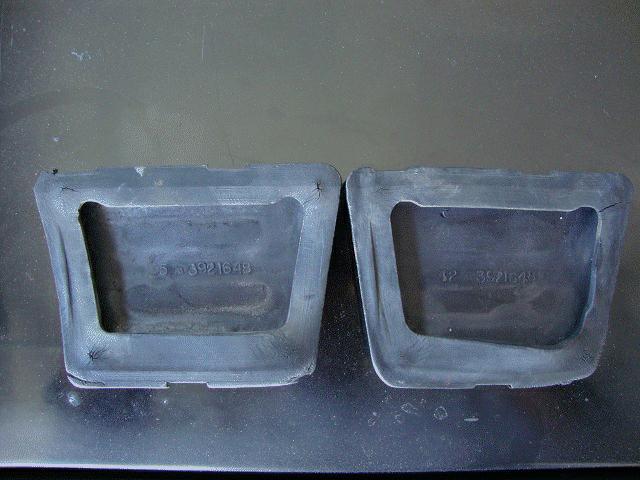

Same part # is used for both rubber pedal covers 3921648

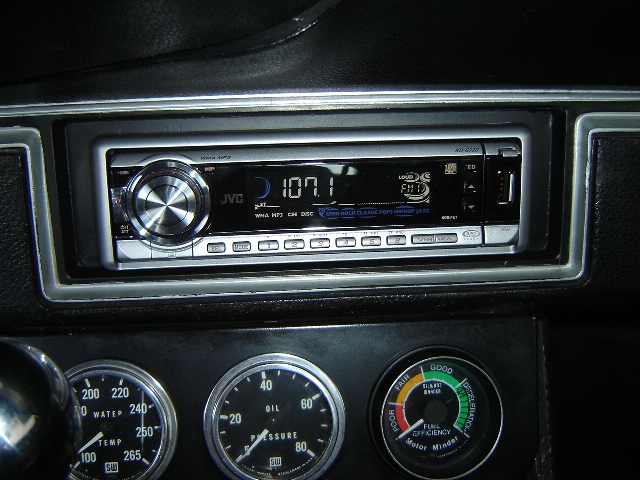

Aftermarket radio

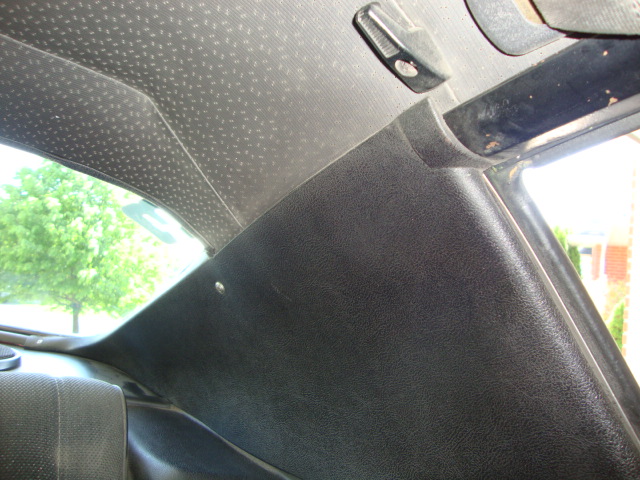

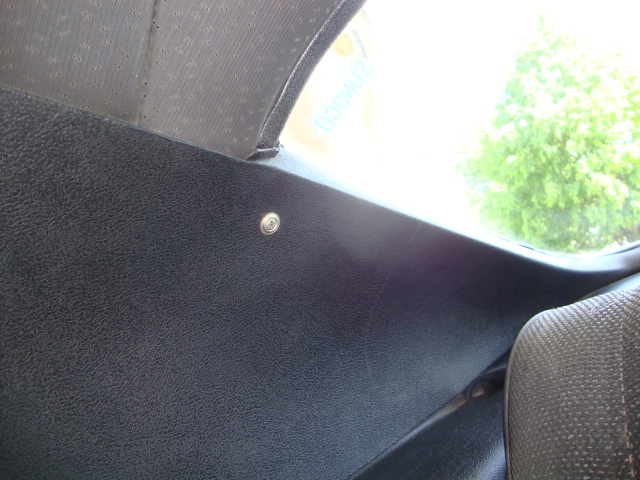

Sail Panels

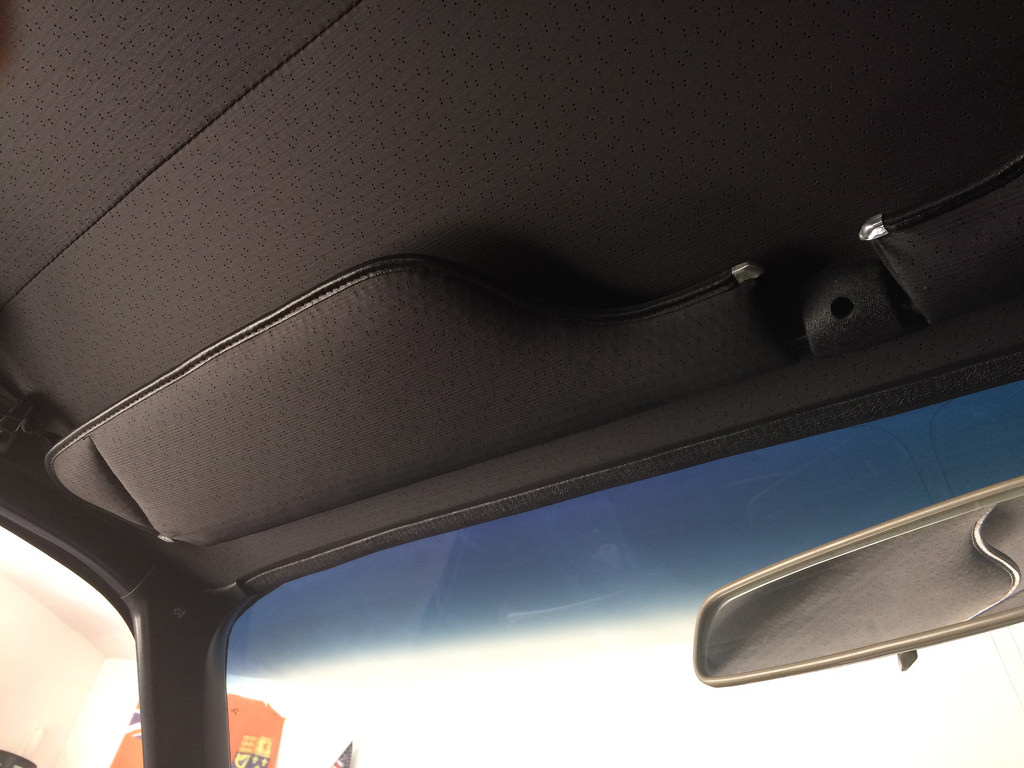

Sun Visor

With my custom cloth (deluxe) interior, the sun visor material is the same as the head liner.

21" wide not including the locking post.

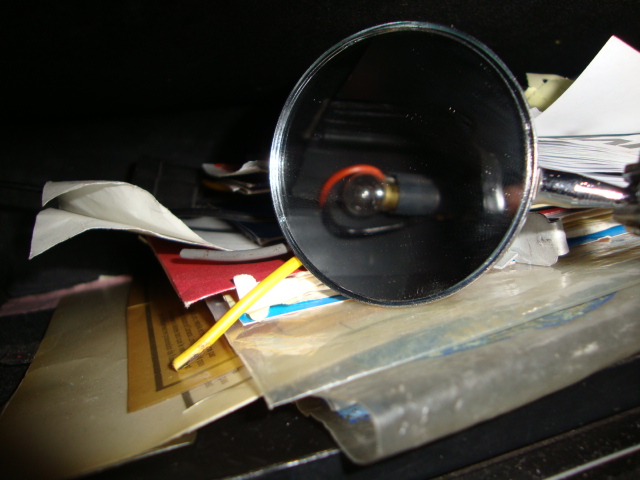

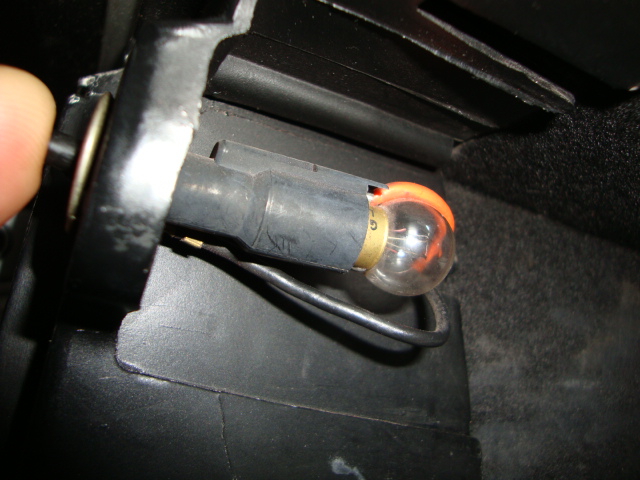

Glove Box Light
