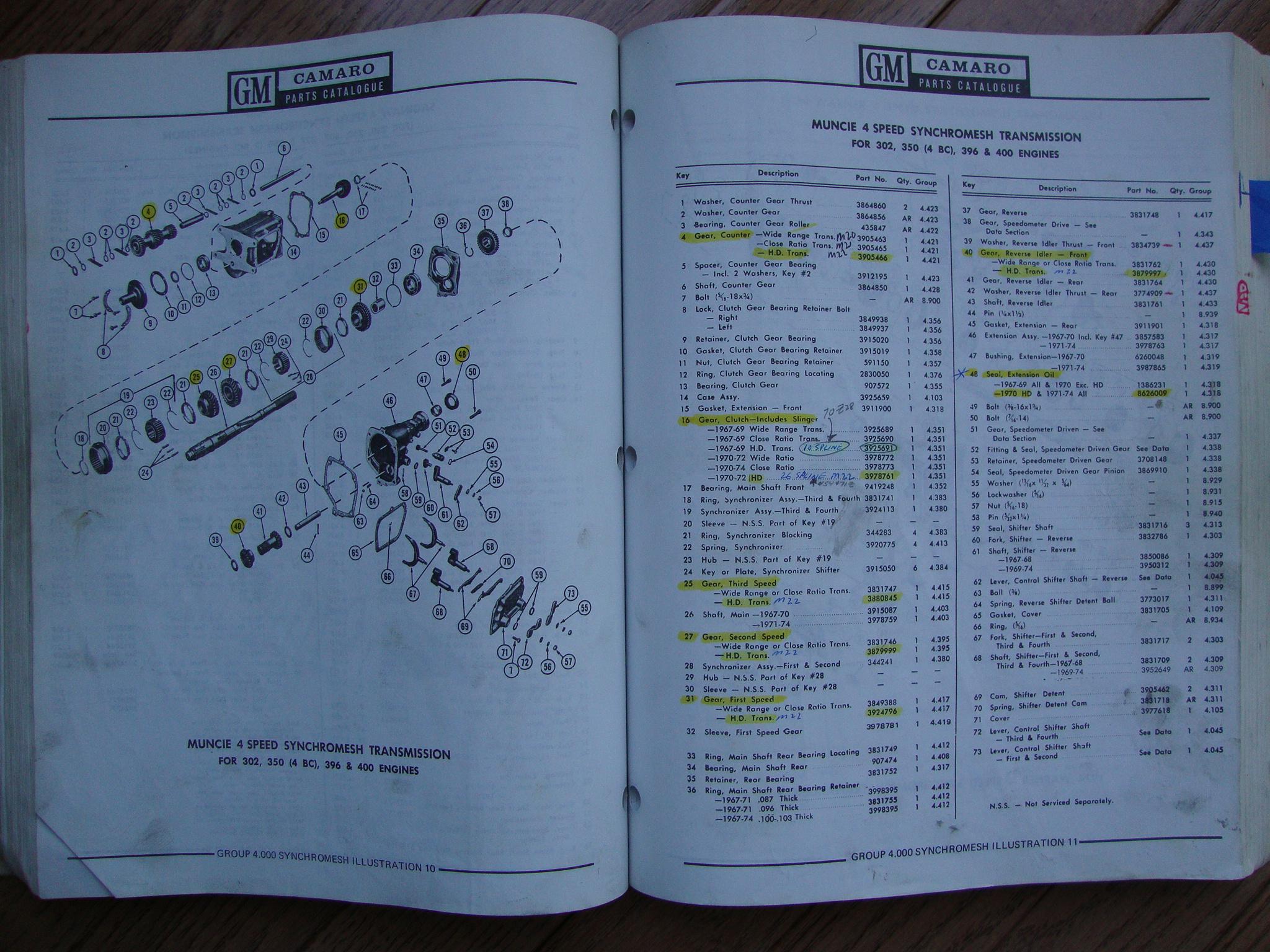

Muncie Exploded view from the Camaro Parts Catalog Sept 1975

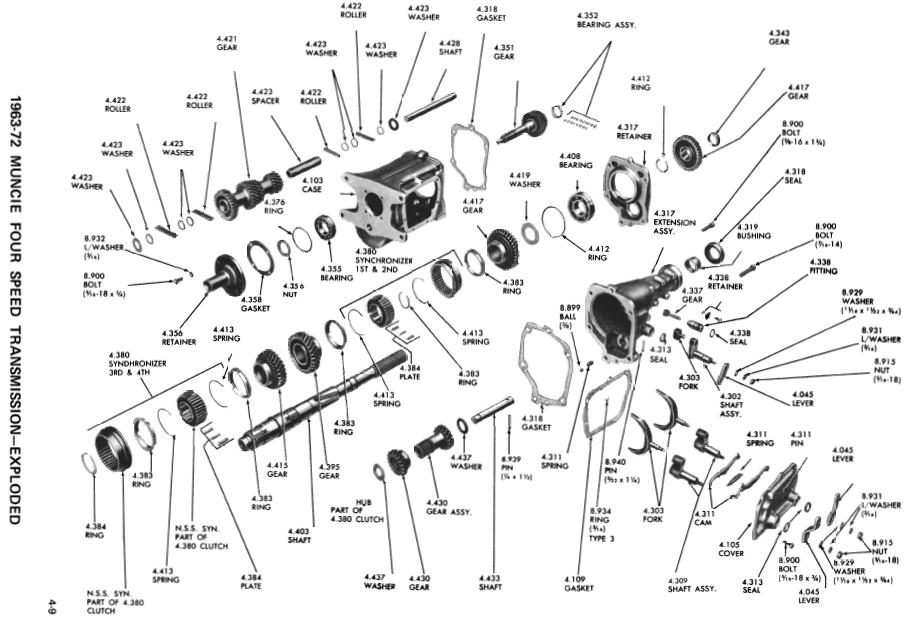

1963-72 Muncie 4-spd Exploded View

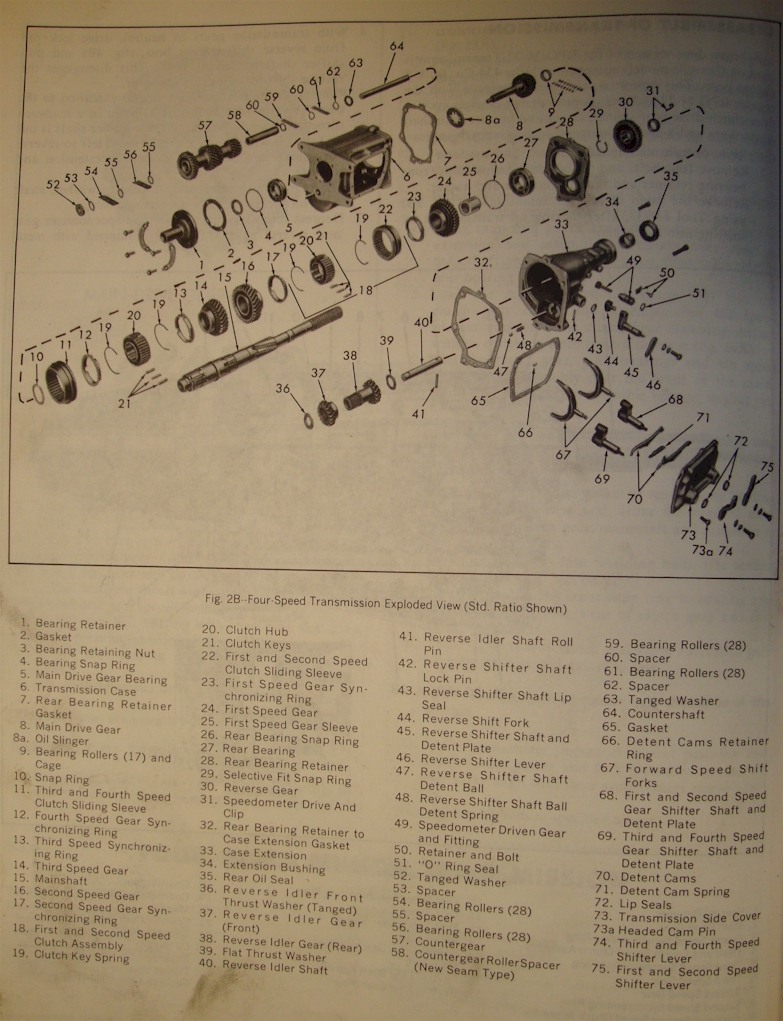

1970 Muncie 4-spd Exploded View

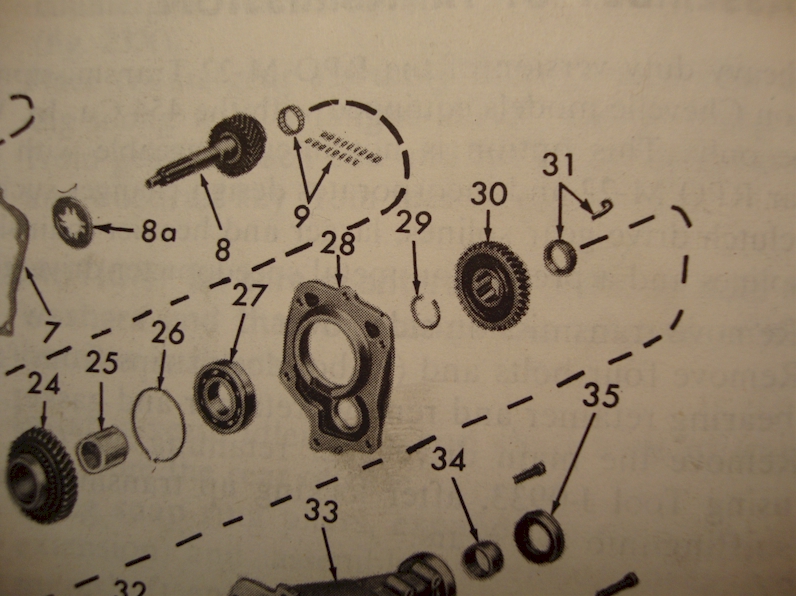

Note #31 speedo drive clip orientation

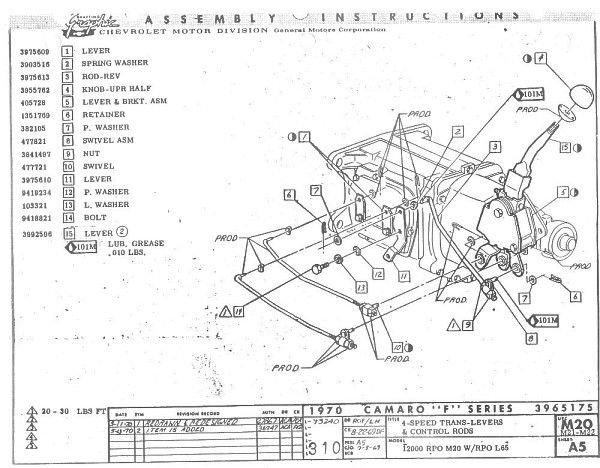

Levers & Control Rods

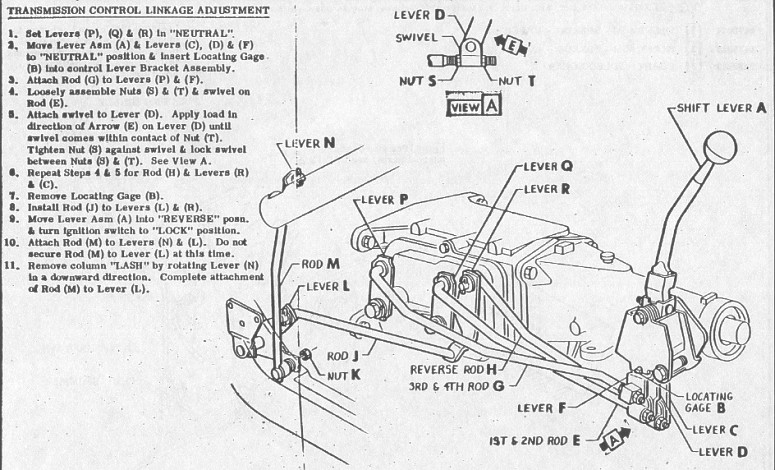

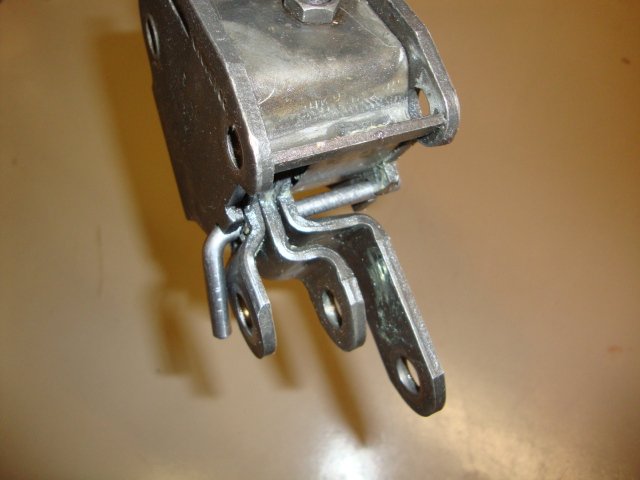

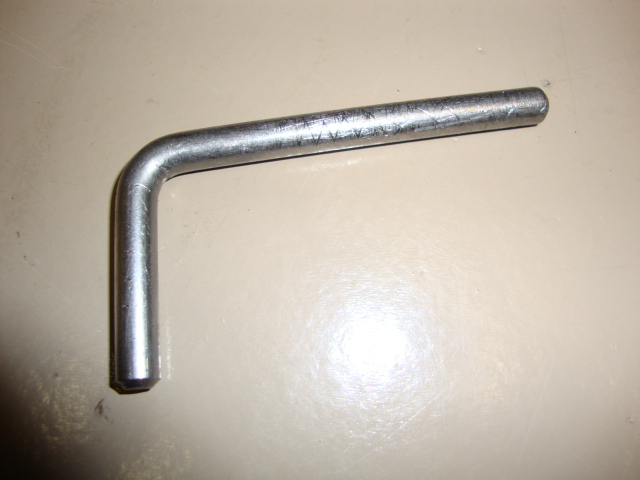

Shifter adjustments

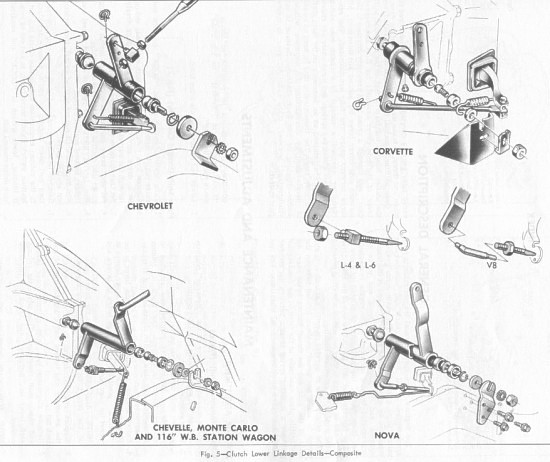

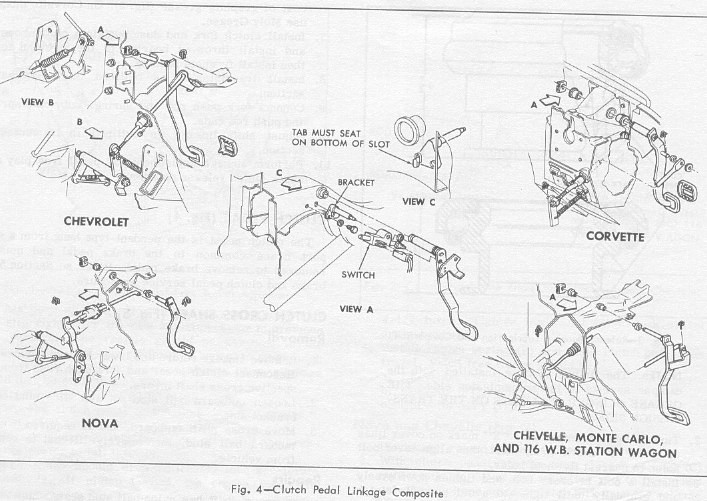

Clutch pedal linkage and free play adjustment
